- Bellows Reliability MTTF; 130000 Cycles
- Pressure Range Valve Open: 1 x 10-9 to 2000 mbar
- Leak Rate; < 1 x 10-9 mbar ls- 1
- Ambient Operating Temperature; 5 °C to 50 °C
Shopping Cart ( )
Edwards PV25EKA Solenoid Isolation Valve, 110-127 V, Single Phase, 50/60 Hz, Aluminum, C41303000
Condition:
New
In Stock
Item#:PN15738
Mfr Part#:C41303000
Manufacturer:Edwards Vacuum
Price upon request
CONTACT US
Features:
Edwards PV25EKA Solenoid Isolation Valve, 110-127 V, Single Phase, 50/60 Hz, Aluminum, C41303000
Edwards PV25EKA Features:
- Transient high power for opening - electronically switched
- Low energy consumption in the 'hold open' position
- Enclosure rating to IP55
- Grease free vacuum
- MTTF up to 130000 cycles
- Circuit protected against transient low voltages
- Improved circuit board reliability
- User friendly plug and socket connections to IP65
PV25EKA / C41303000 Overview:
The Edwards PV25EK series valves are compact, light-weight electromagnetic vacuum valves suitable for use in vacuum pipeline systems down to 1 x 10-9 mbar. A double wound coil combined with an electronic switching circuit ensures low energy consumption, low operating temperatures and extended operating life.
Bellows sealed, the PV25EK solenoid operated valves are available with either aluminum or stainless steel bodies, and in right-angle (PVEK) and in-line (IPVEK) versions, with an overall MTTF of up to 130,000 cycles.
The valve mechanism consists of a solenoid operated moving pole with integral valve pad and bellows assembly. The moving pole is enclosed in an iron casing and the bellows assembly is housed in the lower vacuum body, thus isolating the valve mechanism from the system.

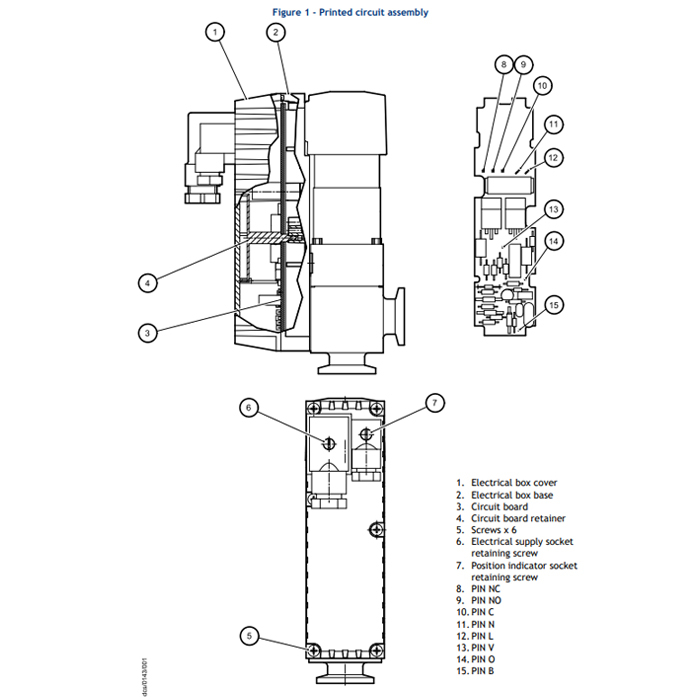

The body terminates in two KF flanged ports and valve pad sealing is by a fluoroelastomer O ring seal. A plastic control box houses the electronic switching and rectification circuit which is protected by a surge proof fuse; a magnetic reed change-over switch provides the switching facility and can be wired for remote indication of valve open/closed position. The switch terminals and mains electrical terminals are also located in the control box.
Improved circuit board design has achieved enhanced life expectancy up to 5 times that of the previous design. Overall MTTF for the valves is up to 500,000 cycles. The valves are provided with separate plug and socket connections rated at IP65 and comply with IBM electrical standards.
PV25EKA Scope of Delivery:
- Installation instructions
A&J Vacuum also repairs / rebuilds and services all types of Edwards pumps. Please contact us for information on the service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Edwards PV25EKA Solenoid Isolation Valve, 110-127 V, Single Phase, 50/60 Hz, Aluminum, C41303000
Edwards PV25EKA Technical Data:
- Recommended Pressure Range Min: 1.000 × 10⁻⁹ mbar
- Recommended Pressure Range Max: 2000 mbar
- Connection Inlet Flange: DN 25 ISO-KF (NW25)
- Weight: 1.80 kg | 4 lb
- Valve Actuation Method: Solenoid / Electromagnetic
- Connection vacuum outlet flange: DN 25 ISO-KF (NW25)
- Leak Rate: 1.000 × 10⁻¹⁰ Pa·m³/s
- Power Supply Phase: 1-Ph
- Power Supply Voltage: 1Ph 110-127V 50/60Hz
- IP Rating: IP67
- Power Supply Frequency: 50 Hz | 60 Hz
- ProductCertification: CE, RoHS
- Material Body: Aluminum
- Material Abbreviation: Al
- Material Seal: FKM
- Pressure Absolute Inlet Continous Max: 2000 mbar
- Altitude Max: 2.000 × 10⁶ mm
- Valve Pressure Max: 2000 mbar
- Reliability MTTF (mean time to failure): 1.300 × 10⁵
- Temperature Ambient Operation Max: 50 °C | 122 °F | 323.15 K
- Temperature Ambient Operation Min: 5 °C | 41 °F | 278.15 K
- Temperature Ambient Storage Min: -30 °C | -22 °F | 243.15 K
- Temperature Ambient Storage Max: 70 °C | 158 °F | 343.15 K
- Leak Rate Across Seat Valve: 1.000 × 10⁻¹⁰ Pa·m³/s
- Pressure Differential Max: 2000 mbar
- Classification Product Pressure Range: Medium Vacuum -- 1 mbar - 1·10⁻³ mbar | High Vacuum -- 1·10⁻³ - 1·10⁻⁷ mbar | Rough Vacuum -- 1000 mbar - 1 mbar
