Overview:
The Edwards PV25EK series valves are compact, light-weight electromagnetic vacuum valves suitable for use in vacuum pipeline systems down to 1 x 10-9 mbar. A double wound coil combined with an electronic switching circuit ensures low energy consumption, low operating temperatures and extended operating life.
Bellows sealed, the PV25EK solenoid operated valves are available with either aluminum or stainless steel bodies, and in right-angle (PVEK) and in-line (IPVEK) versions, with an overall MTTF of up to 130,000 cycles.
The valve mechanism consists of a solenoid operated moving pole with integral valve pad and bellows assembly. The moving pole is enclosed in an iron casing and the bellows assembly is housed in the lower vacuum body, thus isolating the valve mechanism from the system.
The body terminates in two KF flanged ports and valve pad sealing is by a fluoroelastomer O ring seal. A plastic control box houses the electronic switching and rectification circuit which is protected by a surge proof fuse; a magnetic reed change-over switch provides the switching facility and can be wired for remote indication of valve open/closed position. The switch terminals and mains electrical terminals are also located in the control box.
Improved circuit board design has achieved enhanced life expectancy up to 5 times that of the previous design. Overall MTTF for the valves is up to 500,000 cycles. The valves are provided with separate plug and socket connections rated at IP65 and comply with IBM electrical standards.
PV25EKA Features:
Adixen ISV Safety Isolation Valve 115901 Overview
The Pfeiffer Adixen ISV series valve is used at the inlet of rotary vane pumps (4 to 20 m3 /h) whenever isolation is required with vacuum circuit, in case of power failure. In addition, the ISV isolation valve acts as a venting valve for the rotary vane pump, while isolating the vacuum chamber. Suitable for neutral or slightly corrosive gas.
Adixen ISV Features:
Pfeiffer Adixen ISV Applications:
ISV Isolation Valve Operating Principle:
Start-up conditions: The different parts of the valve are at atmospheric pressure. No power is supplied to electric coil. The piston is opened under pressure from return spring.
Operating conditions: The electrical coil is powered. The solenoid valve closes, isolating the upper chamber of the valve from external air. The pumping is performed in the direction of the arrow (“pump”).
Note: on closing, a slight air flow of air (about 7 x 10-2 mbar) enters the vacuum chamber.
Overview:
The Edwards PV16EK series valves are compact, light-weight electromagnetic vacuum valves suitable for use in vacuum pipeline systems down to 1 x 10-9 mbar. A double wound coil combined with an electronic switching circuit ensures low energy consumption, low operating temperatures and extended operating life.
Bellows sealed, the PV16EK solenoid operated valves are available with either aluminum or stainless steel bodies, and in right-angle (PVEK) and in-line (IPVEK) versions, with an overall MTTF of up to 130,000 cycles.
The valve mechanism consists of a solenoid operated moving pole with integral valve pad and bellows assembly. The moving pole is enclosed in an iron casing and the bellows assembly is housed in the lower vacuum body, thus isolating the valve mechanism from the system.
The body terminates in two KF flanged ports and valve pad sealing is by a fluoroelastomer O ring seal. A plastic control box houses the electronic switching and rectification circuit which is protected by a surge proof fuse; a magnetic reed change-over switch provides the switching facility and can be wired for remote indication of valve open/closed position. The switch terminals and mains electrical terminals are also located in the control box.
Improved circuit board design has achieved enhanced life expectancy up to 5 times that of the previous design. Overall MTTF for the valves is up to 500,000 cycles. The valves are provided with separate plug and socket connections rated at IP65 and comply with IBM electrical standards.
PV25EKA Features:
Overview:
The Edwards PVEK40EKA series valves are compact, light-weight electromagnetic vacuum valves suitable for use in vacuum pipeline systems down to 1 x 10-9 mbar. A double wound coil combined with an electronic switching circuit ensures low energy consumption, low operating temperatures and extended operating life.
Bellows sealed, the PV40EKA solenoid operated valves are available with either aluminum or stainless steel bodies, and in right-angle (PVEK) and in-line (IPVEK) versions, with an overall MTTF of up to 130,000 cycles.
The valve mechanism consists of a solenoid operated moving pole with integral valve pad and bellows assembly. The moving pole is enclosed in an iron casing and the bellows assembly is housed in the lower vacuum body, thus isolating the valve mechanism from the system.
The body terminates in two KF flanged ports and valve pad sealing is by a fluoroelastomer O ring seal. A plastic control box houses the electronic switching and rectification circuit which is protected by a surge proof fuse; a magnetic reed change-over switch provides the switching facility and can be wired for remote indication of valve open/closed position. The switch terminals and mains electrical terminals are also located in the control box.
Improved circuit board design has achieved enhanced life expectancy up to 5 times that of the previous design. Overall MTTF for the valves is up to 500,000 cycles. The valves are provided with separate plug and socket connections rated at IP65 and comply with IBM electrical standards.
Features:
Overview:

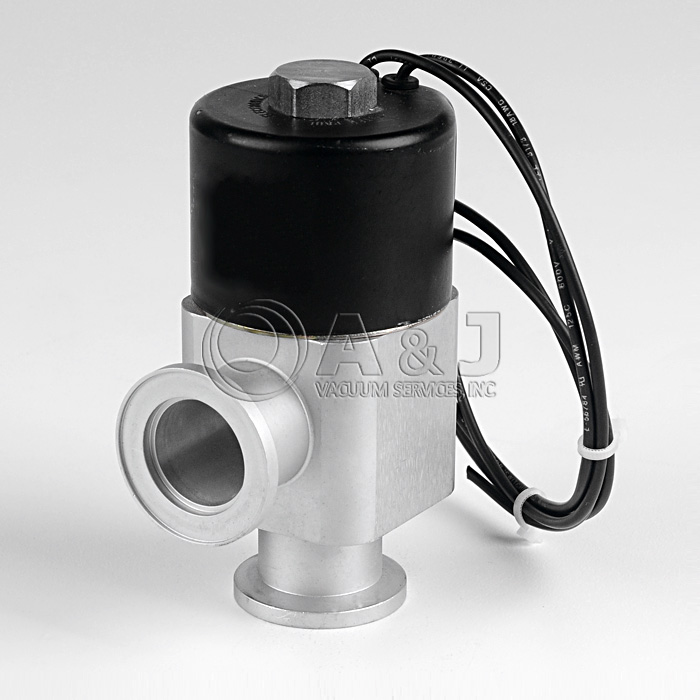

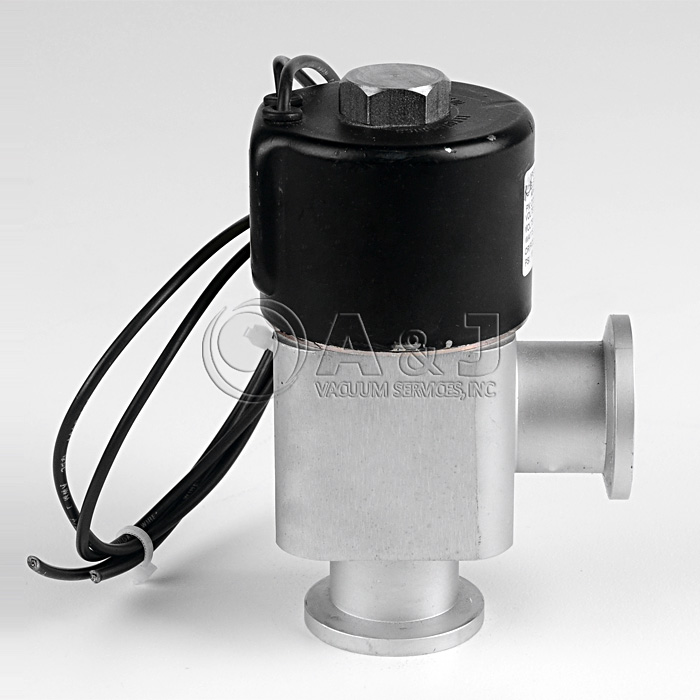

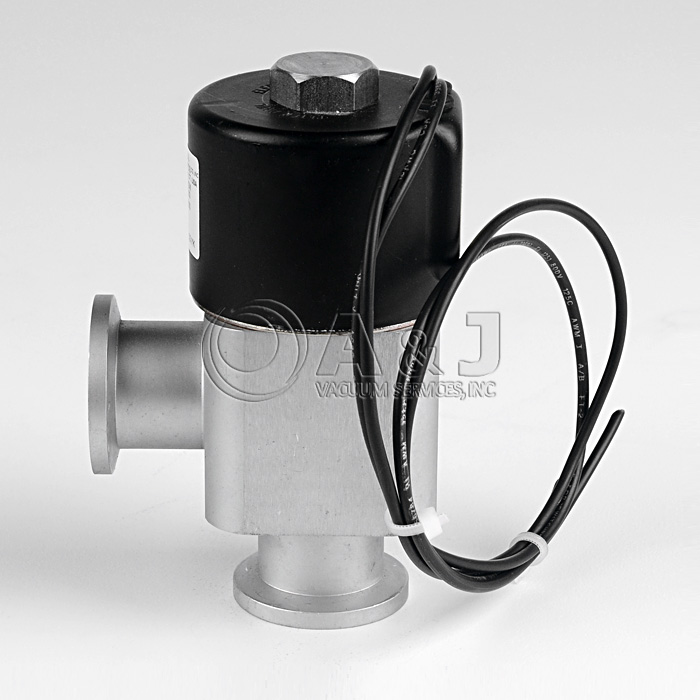

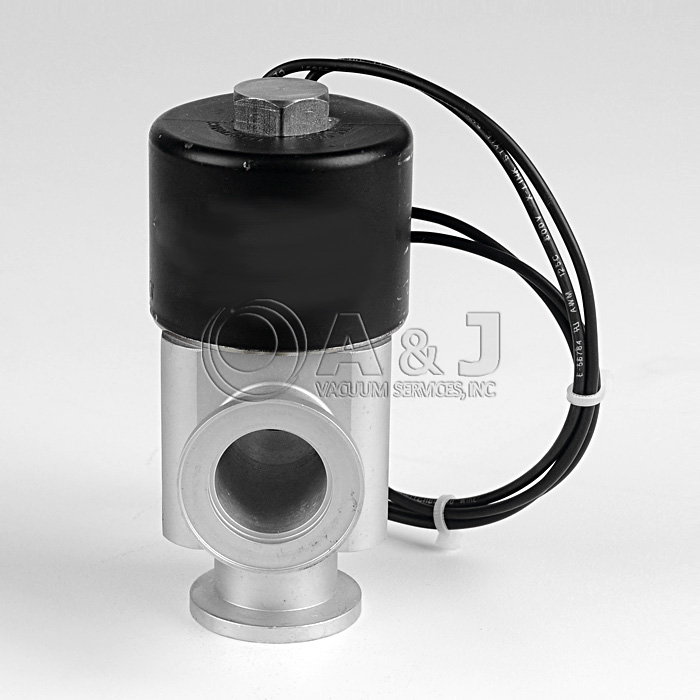

Agilent Technologies direct acting Electromagnetic Block Valves eliminate the need for compressed air in a wide variety of vacuum applications.
These normally closed valves are compact, maintenance-free and have a service life of 250,000 cycles.
EMBVs are available with NW16 or NW25 connecting flanges, and with finished aluminum or nickel-plated bodies, for mildly corrosive applications. Multiple voltage compatibility options are available.
Features:
Overview:
Agilent Technologies direct acting Electromagnetic Block Valves eliminate the need for compressed air in a wide variety of vacuum applications.
These normally closed valves are compact, maintenance-free and have a service life of 250,000 cycles.
EMBVs are available with NW16 or NW25 connecting flanges, and with finished aluminum or nickel-plated bodies, for mildly corrosive applications. Multiple voltage compatibility options are available.
Features:
Overview:
Agilent Technologies direct acting Electromagnetic Block Valves eliminate the need for compressed air in a wide variety of vacuum applications.
These normally closed valves are compact, maintenance-free and have a service life of 250,000 cycles.
EMBVs are available with NW16 or NW25 connecting flanges, and with finished aluminum or nickel-plated bodies, for mildly corrosive applications. Multiple voltage compatibility options are available.
Features:
Overview:
The Edwards PV40EK series valves are compact, light-weight electromagnetic vacuum valves suitable for use in vacuum pipeline systems down to 1 x 10-9 mbar. A double wound coil combined with an electronic switching circuit ensures low energy consumption, low operating temperatures and extended operating life.
Bellows sealed, the PV40EK solenoid operated valves are available with either aluminum or stainless steel bodies, and in right-angle (PVEK) and in-line (IPVEK) versions, with an overall MTTF of up to 130,000 cycles.
The valve mechanism consists of a solenoid operated moving pole with integral valve pad and bellows assembly. The moving pole is enclosed in an iron casing and the bellows assembly is housed in the lower vacuum body, thus isolating the valve mechanism from the system.
The body terminates in two KF flanged ports and valve pad sealing is by a fluoroelastomer O ring seal. A plastic control box houses the electronic switching and rectification circuit which is protected by a surge proof fuse; a magnetic reed change-over switch provides the switching facility and can be wired for remote indication of valve open/closed position. The switch terminals and mains electrical terminals are also located in the control box.
Improved circuit board design has achieved enhanced life expectancy up to 5 times that of the previous design. Overall MTTF for the valves is up to 500,000 cycles. The valves are provided with separate plug and socket connections rated at IP65 and comply with IBM electrical standards.
Features:
Overview:
The Edwards PV25EK series valves are compact, light-weight electromagnetic vacuum valves suitable for use in vacuum pipeline systems down to 1 x 10-9 mbar. A double wound coil combined with an electronic switching circuit ensures low energy consumption, low operating temperatures and extended operating life.
Bellows sealed, the PV25EK solenoid operated valves are available with either aluminum or stainless steel bodies, and in right-angle (PVEK) and in-line (IPVEK) versions, with an overall MTTF of up to 130,000 cycles.
The valve mechanism consists of a solenoid operated moving pole with integral valve pad and bellows assembly. The moving pole is enclosed in an iron casing and the bellows assembly is housed in the lower vacuum body, thus isolating the valve mechanism from the system.
The body terminates in two KF flanged ports and valve pad sealing is by a fluoroelastomer O ring seal. A plastic control box houses the electronic switching and rectification circuit which is protected by a surge proof fuse; a magnetic reed change-over switch provides the switching facility and can be wired for remote indication of valve open/closed position. The switch terminals and mains electrical terminals are also located in the control box.
Improved circuit board design has achieved enhanced life expectancy up to 5 times that of the previous design. Overall MTTF for the valves is up to 500,000 cycles. The valves are provided with separate plug and socket connections rated at IP65 and comply with IBM electrical standards.
Features:
Adixen ISV Safety Isolation Valve 115897 Overview
The Pfeiffer Adixen ISV series valve is used at the inlet of rotary vane pumps (4 to 20 m3 /h) whenever isolation is required with vacuum circuit, in case of power failure. In addition, the ISV isolation valve acts as a venting valve for the rotary vane pump, while isolating the vacuum chamber. Suitable for neutral or slightly corrosive gas.
Adixen ISV Features:
Pfeiffer Adixen ISV Applications:
ISV Isolation Valve Operating Principle:
Start-up conditions: The different parts of the valve are at atmospheric pressure. No power is supplied to electric coil. The piston is opened under pressure from return spring.
Operating conditions: The electrical coil is powered. The solenoid valve closes, isolating the upper chamber of the valve from external air. The pumping is performed in the direction of the arrow (“pump”).
Note: on closing, a slight air flow of air (about 7 x 10-2 mbar) enters the vacuum chamber.
