- TIC Turbo Pump Controller
- P/N D39711000
- Without Gauge Controller
- Support 1 Turbo Pump

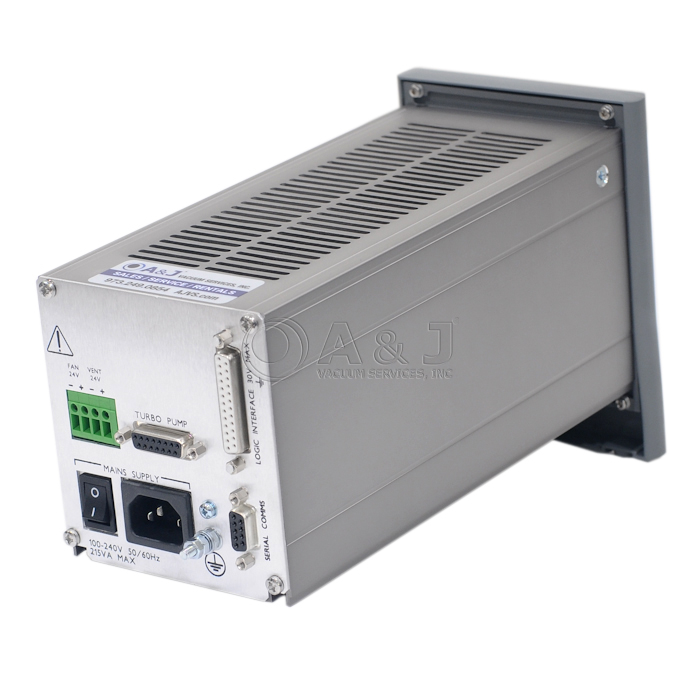

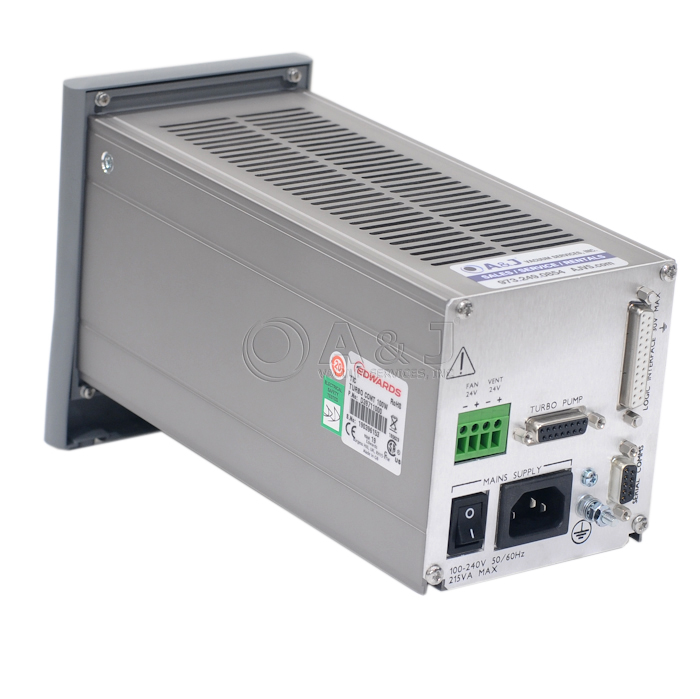

Edwards TIC Instrument and Pump Controller 100W, Without Gauge Control, RS232, D39711000
Edwards TIC Instrument and Pump Controller 100W Features:
- TIC software is structured through a series of easily accessible screens, similar to a mobile telephone.
- Supports 1 Turbo Pump (EXT75DX / nEXT85 / nEXT240 / nEXT300 / nEXT400)
- TIC automatically recognizes which turbo is connected and displays the appropriate information on the default summary screen. Scrolling and selecting accesses the control and set-up menus for that item.
- Edwards Turbo speed is shown as a proportion of full speed by a bar graph. ‘Norm’ indicates that the turbo has reached its Normal Speed, whilst forward or reverse facing chevrons indicate acceleration and deceleration.
- Edwards TIC Turbo Pump Controller offers two levels of password protection are available, effectively restricting or preventing unauthorized intervention.
- Pumps status is displayed, giving a clear indication of what is currently happening in the vacuum system.
- In the event of an error occurring, Edwards TIC will display either a WARNING or flash an ALARM. A warning advises of a condition outside normal parameters, requiring no action, but an alarm must be cleared before normal operation may resume. The three set point relays which are highlighted when tripped, may be linked to turbo speed.
TIC Instrument and Pump Controller 100W / D39711000 Overview:
The Edwards compact turbo controller with a large clear graphical display, an intuitive user interface and serial communications providing full remote control and data logging functions via a new Windows™ based PC program. The controller automatically recognizes and supports one 24 V turbomolecular pump from the EXT/nEXT range
Edwards Turbo Pump cooling and vent valve support is provided directly from the controller. Mains backing pumps (up to nXDS20i/RV12) may be controlled via an optional relay box. 2 different power variants are available, 100W or 200W which determines the ramp speed of the turbo pump.
In addition 200W models have the ability to power a 24Vdc backing pump such as our XDD1 or nXDS through a 15-way D. Turbo and instrument models add the ability to control up to 3 of our range of Active gauges (excluding IGC & Barocels).
A&J Vacuum services and repairs Edwards Tic Instrument, along with all other Edwards Controller and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Edwards TIC Instrument and Pump Controller 100W, Without Gauge Control, RS232, D39711000
Edwards TIC Instrument and Pump Controller 100W Technical Data:
| Weight | 1.70 kg | 3.74 lb |
| Power Supply Phase | 1-Ph |
| Power Supply Voltage | 1Ph 90-264V 50/60Hz |
| Dimension Length | 247.50 mm |
| IP Rating | IP20 |
| Power Supply Frequency | 50 Hz 60 Hz |
| Dimension Height | 128.60 mm |
| Dimension Width | 106.00 mm |
| Measurement Channels | 1 Turbomolecular Pump |
| Available Units of Measurements | mbar |
| Temperature Ambient Operation Max | 40.00 °C | 104.00 °F | 313.15 K |
| Temperature Ambient Operation Min | 0.000 °C | 32.00 °F | 273.15 K |
| Temperature Ambient Storage Min | -30.00 °C | -22.00 °F | 243.15 K |
| Temperature Ambient Storage Max | 70.00 °C | 158.00 °F | 343.15 K |
| Altitude Max | 3.000 × 10⁶ mm |
| Communication Interfaces Customer | RS232 (serial) RS485 (serial) |
| Connection Electrical Comms Interface Connector | DSUB 15-PIN - Female |
| Pressure Displayed Max | 2000 mbar |
A&J Vacuum services and repairs Edwards Tic Instrument, along with all other Edwards Controller and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Edwards TIC Turbo and Controller Datasheet
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
