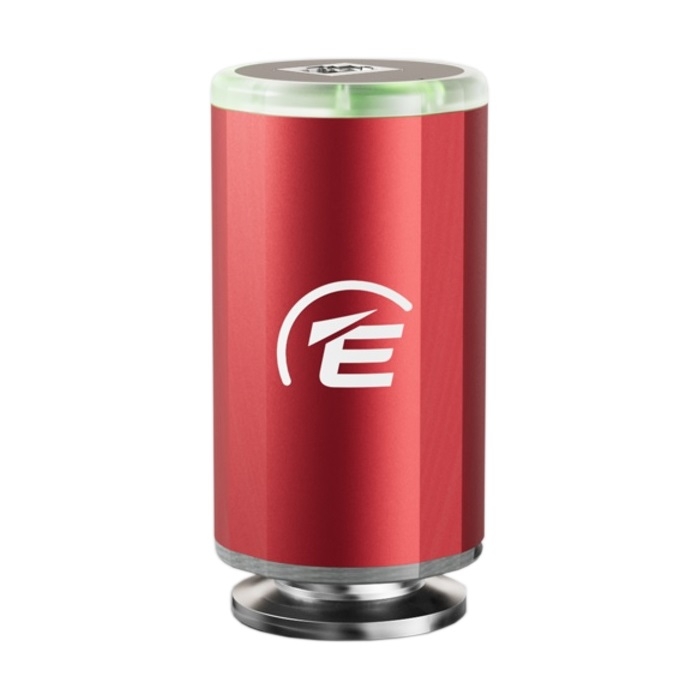

Edwards WRG 200 X NW-25 Active Wide Range Gauge, D3G0021100 / D3G-00-21100

Edwards WRG 200 X NW-25 Active Wide Range Gauge, D3G0021100 / D3G-00-21100

Edwards WRG 200 X NW-25 Active Wide Range Gauge Features:

• Direct Replacement for obsolete Edwards WRG-S-NW 25 Wide Range Gauge, D14701000, EDWARDS WRG, D147-01-000
• 360° LED light ring visual pressure indicator
• Wide range power supply
• Reduced footprint
• Filament technology
• New magnets
• Analogue/digital
• Set-point relay

WRG 200 X NW-25 Active Wide Range Gauge / D3G0021100 Overview:

The New Edwards WRG200-X-NW 25 Active Wide Range Gauge family offers the capability of single port pressure measurement in the range from atmosphere to 10-9 mbar with a linear output. WRG Gauge P/N D3G0021100 Its a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications.

The New Edwards WRG200 X NW25 Vacuum Gauge is a compact and efficient solution that significantly reduces the required space and hardware for connectivity. Its compact design makes it ideal for various applications. This gauge has undergone numerous technical improvements such as its innovative striker design, a 360 LED light ring indicator, easy push-button calibration, integrated set-point controls, and comprehensive diagnostics.

The WRG200 offers cost-effectiveness as a vacuum management solution, either when used with an Edwards controller or directly integrated into the system controls. This gauge is perfect for monitoring pressure in systems that are rapidly pumped down from atmospheric pressure to high vacuum levels.

The New Edwards WRG200 NW25 / D3G0021100 Gauge is a low maintenance and cost effective vacuum management solution when used either with a Edwards Gauge controller or directly integrated into the vacuum system controls.

The New Edwards WRG vacuum gauge has two gauges built in one, using Pirani technology for the upper pressure ranges, with a seamless switch over to an Active Inverted Magnetron for the lower range.

For ease of operation and more accurate pressure reading, the vacuum setting of the Edwards Pirani gauge is set automatically, while a single pushbutton sets atmospheric pressure. The Edwards WRG200NW25 has an easy to program set-point which operates over the entire measurement range.

The Edwards New WRG 200 Active Gauge uses an advanced technique for highly reliable patented striking, even at high vacuum or in relatively contaminated conditions.

The Edwards WRG 200 have a very low external magnetic field and are ideally suited for use with sensitive analytical instruments or in applications where the gauge needs to be mounted in close proximity to a turbomolecular pump
