- Inlet flange: DN 40-FK
- Pumping speed (N2): 47 l/s
- Ultimate pressure: < 1 x 10-7 mbar
- XDD1 Backing pump

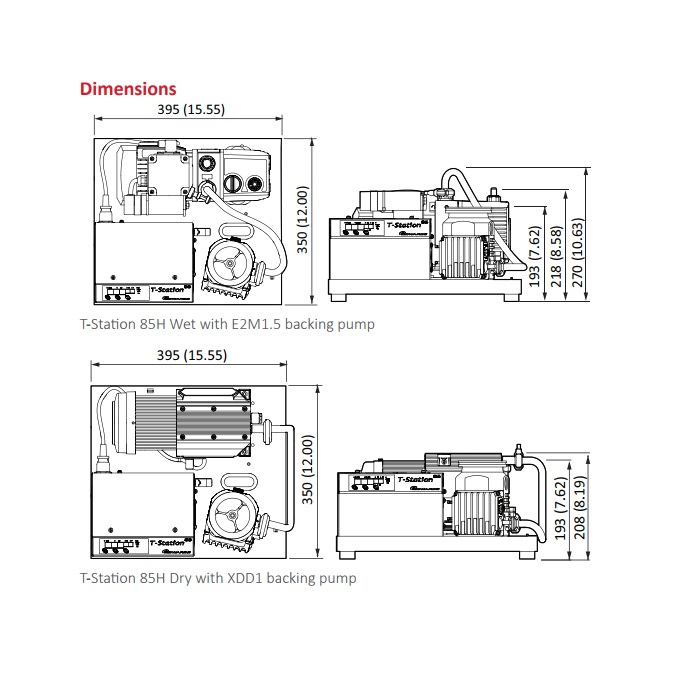

Edwards Turbo Station T85 T-Station Dry Turbo Pumping T Station, Includes EXT85DX Turbo Pump (DN 40-KF), XDD1 Backing Pump, 100-120V, TS85D1002
Edwards T-Station T85H Features:
- Compact series of pumping stations for all high vacuum applications
- Air-cooled and ready for operation with EXT85DX Turbo Pump
- DN 40-KF
- Integrated Control Unit
- 115 V AC, 50/60 Hz
T-Station T85H / TS85D1002 Overview:
Edwards’ T-Station vacuum pumping systems offer a comprehensive solution designed to deliver advanced, plug-and-play vacuum technology for applications where ease of use and flexibility are essential. The T-Station range has evolved to include a broader selection of both backing and turbomolecular pump configurations, enhancing its suitability for a wide range of applications and improving overall performance. Each turbomolecular pumping station is delivered fully assembled and ready for immediate operation, providing a true turnkey solution. The range consists of two main models—the entry-level T-Station 85 and the higher-capacity T-Station 300—each available in multiple variants.
The latest generation of T-Stations now features Edwards’ compact mXDS3s scroll pump, delivering optimal performance with improved energy efficiency.
Edwards T85H Applications:
- Analytical
- Leak Detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy
A&J Vacuum repair / rebuild and service all Edwards T-85 Vacuum Systems, nXDS Turbo Pump Service, Edwards Pump Repair, Edwards Booster Pumps, Edwards Vacuum Pumps, along with all other Edwards Turbo Pumping Stations, Edwards Turbo Pump Repair, Edwards E2M1.5 Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Edwards Turbo Station T85 T-Station Dry Turbo Pumping T Station, Includes EXT85DX Turbo Pump (DN 40-KF), XDD1 Backing Pump, 100-120V, TS85D1002
Edwards T-Station T85H Technical Data:
- Backing Pump: XDD1 Diaphragm Pump
- Inlet Flange: DN 40-KF
- Mains Requirement: 100-120 V, 50/60 Hz
- Mains Requirement Power Consumption: 230 W
- Pumping Speed Backing Pump at 50 Hz: 1.6 m3/h
- Pumping Speed for N2: 47 l/s
- Pumping Station Components: nEXT85, XDD1
- Ultimate Pressure: < 5 x 10-8 mbar
- Weight: 21 kg / 48 lbs
- Noise Level: 56dB(A)
A&J Vacuum repair / rebuild and service all Edwards T-85 Vacuum Systems, nXDS Turbo Pump Service, Edwards Pump Repair, Edwards Booster Pumps, Edwards Vacuum Pumps, along with all other Edwards Turbo Pumping Stations, Edwards Turbo Pump Repair, Edwards E2M1.5 Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Edwards XDD1 A74602983_A74602991 Operating Instructions Dry Diaphragm Pump
Edwards Vacuum E2M0.7, E2M1, E2M1.5 Rotary Vane Vacuum Pumps - Operating Instructions
Edwards nEXT85 nEXT 85 nEXT-85 Instruction Manual
Edwards nEXT 85 Turbo Pump Technical Data, nEXT85
Edwards T-Station T85 Turbo Station Brochure Datasheet
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Edwards Turbo Station T85 T-Station Dry Turbo Pumping T Station, Includes EXT85DX Turbo Pump (DN 40-KF), XDD1 Backing Pump, 100-120V, TS85D1002
Edwards T-Station T85H Features:
- Compact series of pumping stations for all high vacuum applications
- Air-cooled and ready for operation with EXT85DX Turbo Pump
- DN 40-KF
- Integrated Control Unit
- 115 V AC, 50/60 Hz
T-Station T85H / TS85D1002 Overview:
Edwards’ T-Station vacuum pumping systems offer a comprehensive solution designed to deliver advanced, plug-and-play vacuum technology for applications where ease of use and flexibility are essential. The T-Station range has evolved to include a broader selection of both backing and turbomolecular pump configurations, enhancing its suitability for a wide range of applications and improving overall performance. Each turbomolecular pumping station is delivered fully assembled and ready for immediate operation, providing a true turnkey solution. The range consists of two main models—the entry-level T-Station 85 and the higher-capacity T-Station 300—each available in multiple variants.
The latest generation of T-Stations now features Edwards’ compact mXDS3s scroll pump, delivering optimal performance with improved energy efficiency.
Edwards T85H Applications:
- Analytical
- Leak Detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy
A&J Vacuum repair / rebuild and service all Edwards T-85 Vacuum Systems, nXDS Turbo Pump Service, Edwards Pump Repair, Edwards Booster Pumps, Edwards Vacuum Pumps, along with all other Edwards Turbo Pumping Stations, Edwards Turbo Pump Repair, Edwards E2M1.5 Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Specifications
Edwards Turbo Station T85 T-Station Dry Turbo Pumping T Station, Includes EXT85DX Turbo Pump (DN 40-KF), XDD1 Backing Pump, 100-120V, TS85D1002
Edwards T-Station T85H Technical Data:
- Backing Pump: XDD1 Diaphragm Pump
- Inlet Flange: DN 40-KF
- Mains Requirement: 100-120 V, 50/60 Hz
- Mains Requirement Power Consumption: 230 W
- Pumping Speed Backing Pump at 50 Hz: 1.6 m3/h
- Pumping Speed for N2: 47 l/s
- Pumping Station Components: nEXT85, XDD1
- Ultimate Pressure: < 5 x 10-8 mbar
- Weight: 21 kg / 48 lbs
- Noise Level: 56dB(A)
A&J Vacuum repair / rebuild and service all Edwards T-85 Vacuum Systems, nXDS Turbo Pump Service, Edwards Pump Repair, Edwards Booster Pumps, Edwards Vacuum Pumps, along with all other Edwards Turbo Pumping Stations, Edwards Turbo Pump Repair, Edwards E2M1.5 Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
