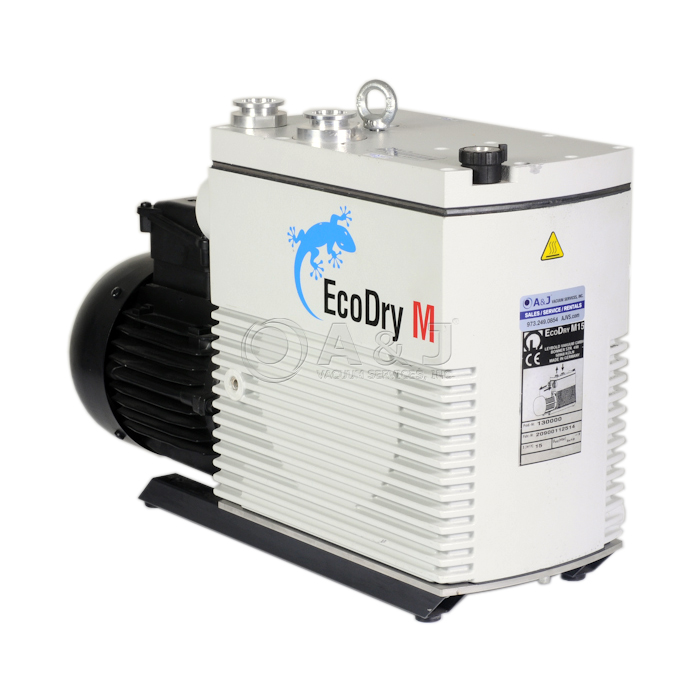

Leybold EcoDry M15, PN 130000, Dry Vacuum Pump
Condition:
Discontinued
Item#:PN06464
Mfr Part#:130000
Manufacturer:Leybold
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Leybold EcoDry M15 (M 15), PN130000 (130000) Dry Vacuum coupled with a DN 25 KF Inlet Flange and DN 25 KF Outlet Flange
Leybold EcoDry M15 Overview:
This ECODRY 15 Dry Vacuum has a max pumping speed of 9.4 cfm (60hz) and a ultimate pressure of 1.5 x 10-2 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The EcoDry M15 Vacuum Pump comes with 3-Month Warranty.
- Max pumping speed: 9.4 cfm (60hz)
- DN 25 KF Inlet Flange
- DN 25 KF Outlet Flange
- Ultimate pressure: 1.5 x 10-2 Torr.

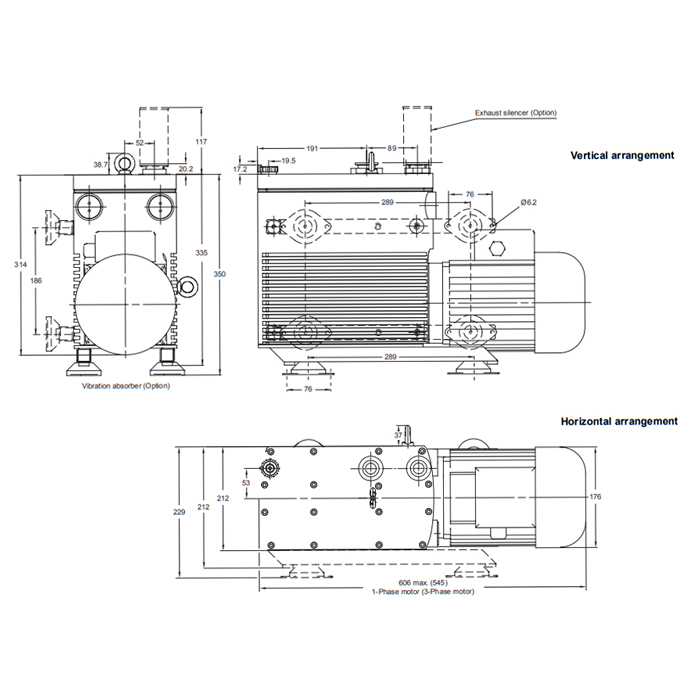

Leybold EcoDry M15 Dimensions:
Click Here for Leybold EcoDry M15 Manual
A&J Vacuum Services offers full repair/service of Leybold EcoDry M15, along with all other brands offered on our website. AJVS also services Leybold dry vacuum pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold EcoDry M15 (M 15), PN130000 (130000) Dry Vacuum coupled with a DN 25 KF Inlet Flange and DN 25 KF Outlet Flange
Leybold EcoDry M15 Technical Data:
| EcoDry M 15 | EcoDry M 20 | ||
| Number of cylinders | 3 | 3 | |
| Number of pumping stages | 3 | 2 | |
| Max. pumping speed | - at 50 Hz m3 * h-1/ cfm - at 60 Hz m3 * h-1/ cfm |
14/8.3 16/9.4 |
19/11.2 22/13 |
| Ultimate pressure (absolute) |
- at 50 Hz mbar/Torr - at 60 Hz mbar/Torr |
3 * 10-2 / 2.3 * 10-2 2 * 10-2 / 1.5 * 10-2 | 5 * 10-1 / 3.8 * 10-1 4 * 10-1 / 3.0 * 10-1 |
| Inlet pressure limit - at initial evacuation - in continuous operation |
mbar mbar |
1000 100 |
1000 100 |
| Water vapour tolerance | g * h-1 | 290 (with gas ballast set to "3") | 400 (with gas ballast set to "3") |
| Leak rate (integral) | mbar*l*s-1 | 1*10-4 | 1*10-4 |
| Motor power requirements at inlet pressures < 20 mbar (15 Torr) |
W | 300 | 300 |
| Motor Mains voltage, frequency 3-ph. / 50 Hz 3-ph. / 60 Hz 1-ph. 50 / 60 Hz (Euro) 1-ph. 60 Hz (USA) 1-ph 50/60 Hz |
V V V V V |
220-240/346-415 (-10% to %) 200-277/380-480 (-10% to %) 220 - 240 (-10 % to %) 115 (-10 % to %) 200 (-10 % to %) |
220-240/346-415 (-10% to %) 200-277/380-480 (-10% to %) 220 - 240 (-10 % to %) 115 (-10 % to %) 200 (-10 % to %) |
| Motor speed at 50/60 Hz | rpm. | 1000/1200 | 1000/1200 |
| Protection | IP | 54 | 54 |
| Noise level at ultimate pressure1) | dB(A) | < 59 | < 59 |
| Permissible ambient temperature | C/F | 0 - 50 / 32 - 122 | 0 - 50 / 32 - 122 |
| Connections / Inlet ports | DN 25 KF or G 3/4 | DN 25 KF or G 3/4 | |
| Connections /Outlet ports | DN 25 KF or G 3/4 | DN 25 KF or G 3/4 | |
| Weight with three phase motor | kg/lbs | 38/84 | 38/84 |
| Weight with single phase motor | kg/lbs | 50/111 | 50/111 |
Click Here for Leybold EcoDry M15 Manual
A&J Vacuum Services offers full repair/service of Leybold EcoDry M15, along with all other brands offered on our website. AJVS also services Leybold dry vacuum pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
