- Pumping Speed (50/60 Hz): 16.2 m3/h | 19.0 m3/h
- Ultimate Pressure with Gas Ballast: 8∙10-3 mbar
- Water Vapor Tolerance: 20 mbar
- Noise Level: 58 dB(A)
Shopping Cart ( )
Leybold TRIVAC D 16 T Rotary Vane Pump, 50/60 Hz, 312 51TE / 31251TE
Condition:
New
Item#:PN58053
Mfr Part#:312 51TE / 31251TE
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold TRIVAC D 16 T Rotary Vane Pump, 50/60 Hz, 312 51TE / 31251TE
Leybold TRIVAC D 16 T Features:
- Nominal pumping speed (50/60 Hz): 17.0 / 20.4 m3/h
- Ultimate pressure without gas ballast: 5 x 10-3 mbar
- DN 25 KF
TRIVAC D 16 T / 31251TE Overview:
The oil-sealed dual-stage TRIVAC T rotary vane vacuum pumps have the capability to pump gases and vapors and evacuate vessels or vacuum systems down into with the medium vacuum range. TRIVAC T pumps have been designed for safe and efficient use.
TRIVAC T pumps are not designed for the pumping of dusty, aggressive, corrosive, flammable or explosive gases or gases mixtures; for pumping of oxygen or other highly reactive gases with a greater concentration than atmospheric concentration (>21%); for working in flammable, explosive or dusty environments.
TRIVACD16T Scope of Delivery:
- Pump with motor
- 1 centering ring
- 1 centering ring with dirt trap
- 2 clamping rings DN 25KF
- 1 bottle of 1L oil
- Operating Instructions
- Spare Parts List
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of TRIVAC vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold TRIVAC D 16 T Rotary Vane Pump, 50/60 Hz, 312 51TE / 31251TE
Leybold TRIVAC D 16 T Technical Data:
| Nominal pumping speed (50Hz) | 17.0 m3/h |
| Nominal pumping speed (60Hz) | 20.4 m3/h |
| Pumping speed (50Hz) | 16.2 m3/h |
| Pumping speed (60Hz) | 19.0 m3/h |
| Ultimate total pressure without gas ballast | 5∙10-3 mbar |
| Ultimate total pressure with gas ballast (pos. 1) | 8∙10-3 mbar |
| Ultimate total pressure with gas ballast (pos. 2) | 2∙10-2 mbar |
| Water vapour tolerance (pos. 2) | 20 mbar |
| Water vapour capacity (pos. 2) | 230 g/h |
| Oil filling, min./max. | 1.0/1.6 l |
| Noise level to DIN 45 635 without/with gas ballast | 56/58 dB(A) |
| Ambient temperature | 12 - 45 °C | 53.6 - 113 °C | 285.15 - 318.15 K |
| Weight without oil | 37 kg | 82 lb |
| Connections, intake and exhaust side (mm) | 25 KF DN |
| Plug | 230V mains cord (1.8m) with Schuko plug CEE 7/7 (included in delivery) |
| Single phase AC motor power 218-242V 50/60Hz |
750 W |
| 3 phase AC motor power YY200-220V/Y380-415V 50Hz & YY200-220V/Y380-480V 60Hz |
750 W |
TRIVAC T pumps are not designed for the pumping of dusty, aggressive, corrosive, flammable or explosive gases or gases mixtures; for pumping of oxygen or other highly reactive gases with a greater concentration than atmospheric concentration (>21%); for working in flammable, explosive or dusty environments.
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of TRIVAC vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN57800
Mfr Part#:EK96004
Condition: Out of Stock
New
$59.99
Item#:PN40796
Mfr Part#:18911
Condition: Out of Stock
New
Price upon request
Item#:PN40798
Mfr Part#:18972
Condition: Out of Stock
New
$335.00

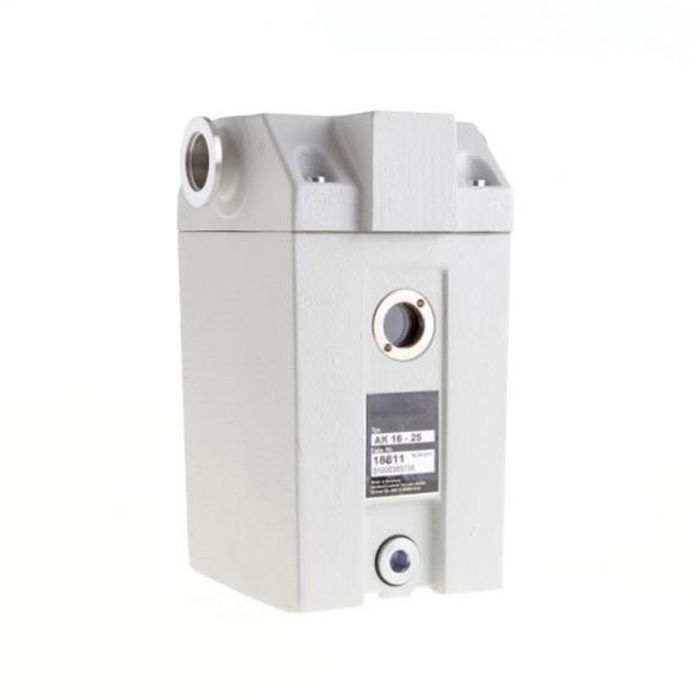

Item#:PN57450
