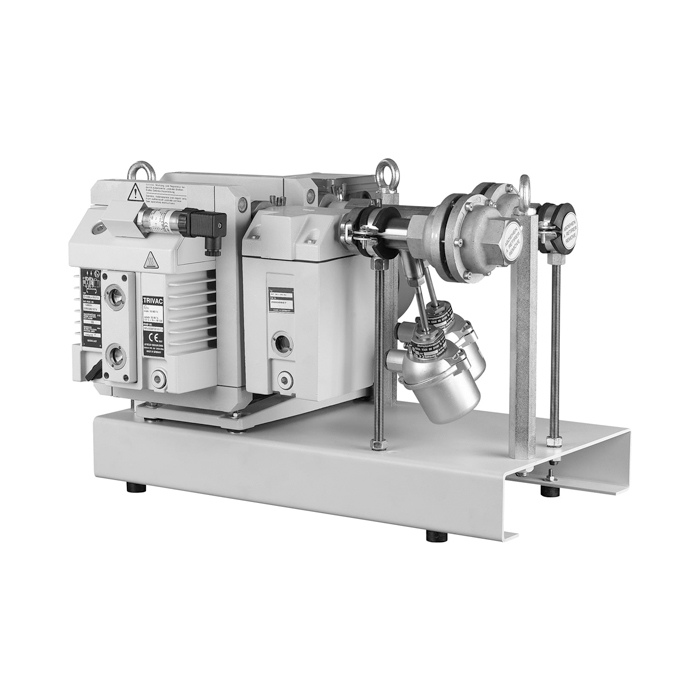

Leybold Vacuum D16B-Ex TRIVAC Vacuum Pump 3-Phase 230/400V 50 HZ, 11 CFM, 140092, D16B Ex​

The D16B-EX is an ​Oil-sealed vacuum pump​ ​with integrated oil pump for force lubrication of the bearings also at​ ​high intake pressures of 1013 mbar. The pump is free of non-ferrous​ ​metals and the inside section of the pump is metal-sealed, i.e. there
are no elastomeric seals prone to​ ​chemical attack​​.​ ​The ​Leybold 140092 ​TRIVAC B pump is equipped with a gas ballast facility through which​ ​it is possible to pump condensable gases,and a hydro-pneumatic​ ​intake valve for vacuum protection.​

​The D16B-EX vacuum pump is additionally certified in accordance with:

Category 1(i)/2(o) of the EC Directive 2014/34/EU (ATEX95)

​ATEX II 1/2G c IIC(no C2H2, CS2)T4 X 12°C<TA<40°C

Certification of the motor: ATEX II 2G Ex e II T4
Certifications of the pump: CE, EC type examination certificate: IBExU0

RoHS compliant​

A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of Trivac D16B vacuum pumps including 140091 and 140092. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

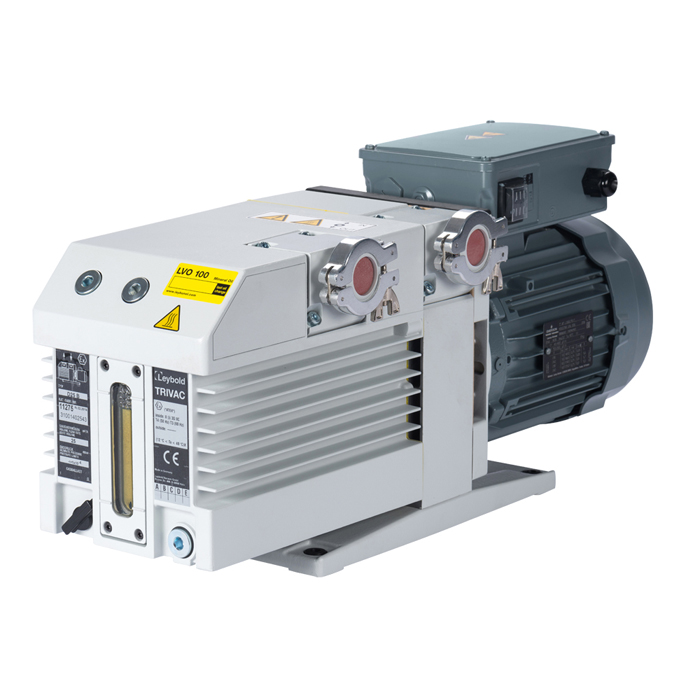

Leybold D25B-DOT TRIVAC Vacuum Pump, 3-Phase Motor, 1127618

A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D25B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

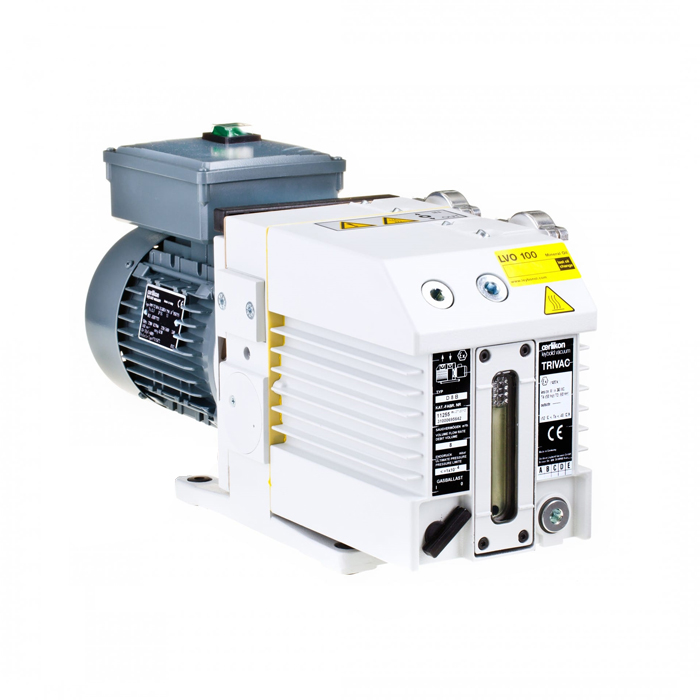

Leybold Vacuum D4B TRIVAC Vacuum Pump 3 CFM Pumping Speed, Single Phase 100/230V 50/60 HZ, 140081, D4

Leybold D4B TRIVAC Overview:

The LEYBOLD TRIVAC D4B vacuum pumps are oil lubricated vacuum pumps. Each Leybold D4B pump 140081 can be wire wired for low 100V 50/60 Hz, or High 230V 50/60Hz Voltage. The Leybold D4 is a well know pump with excelent reputation for vapor handling capability. The Leybold D4B pump has two vacuum stages with low vacuum and high vacuum which provided excelent ultimate vacuum pressure at < 2.0x10-3 mbar or <1.5x10-3 Torr. The Leybold D4B is perfectly suitable for many laboratory and research applications such as turbo pump backing pumps, diffusion pump backing pump, vacuum ovens, vacuum pumps for mass spectrometers, vacuum research laboratories, research projects. This Leybold D4B pump is prepared for Hydrocarbon oil service, best vacuum pump oil to be used is Leybonol LVO 100 / PN16787, D4B oil requirement 0.3 L min, 0.8 L max. The TRIVAC D4 Pump has grate water vapor capacity of 93 g/h.

Leybold Vacuum D4B pumps are also very quiet with nise level of 50 db(A) without gass ballast, and 52 db(A) with gass ballast open. Both Inlet and Exhaust ports are DN 16 ISO-KF. The gas ballast valve is opened with position 1 and closed with position 0. These Leybold D4B vane vacuum pumps are available with different motors with other voltage options listed below. 91255-1.

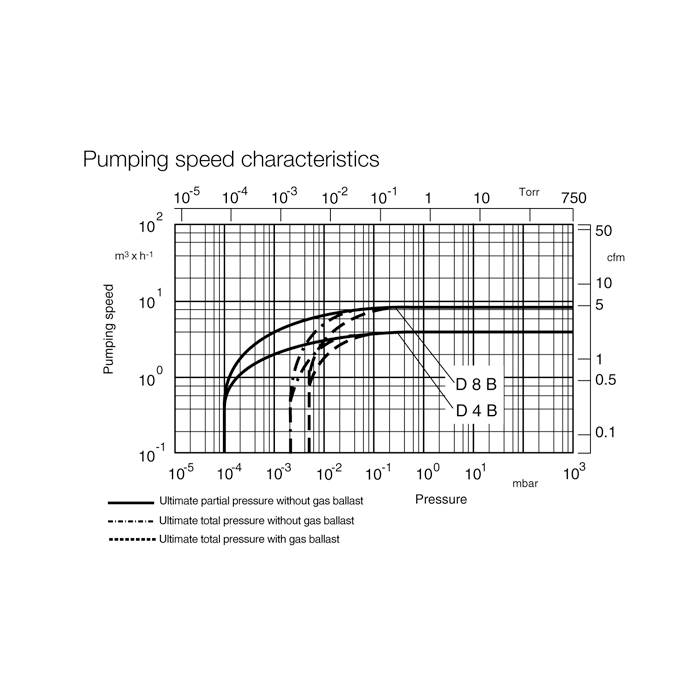

Leybold D4B TRIVAC Pumping speed:

Available D4B pump voltages configurations:

Leybold D4B Dual Stage Vacuum Pump with single phase motor 230VAC 50/60 hz, Leybold Part Number 11245

Leybold D4B Dual Stage Vacuum Pump with Three phase motor 230/400VAC 50/60 hz, Leybold Part Number 11246

Click Here to view D4B and D8B operation Manual to view all pump configurations

New Leybold D4 Pump is supplied with the following accessories:

• 1 Centering Ring
• 1 Centering ring with dirt trap
• 2 clamps DN 16 KF
• Operating instructions
• Spare parts list
• For pump protection during transit, both Inlet and exhaust ports are blanked with rubber diaphragms and supporting rings.

Typical TRIVAC D4B pump Applications:

• Electron beam welding
• Vacuum Ovens
• Leak detectors and Leak detector systems
• Surface analysis instruments
• Scanning electron microscopes
• Load lock
• Spectroscopy
• University Research Labs
• As a backing pump for turbomolecular pump systems

Leybold D4B TRIVAC Dimensions:

Click Here for Leybold D4B Manual

A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D4B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Leybold Vacuum D4B TRIVAC Vacuum Pump 230/400V 50/60 HZ, 11246, 3 CFM, 5.0 m3/h D4

Leybold D4B TRIVAC Overview:

The LEYBOLD TRIVAC D4B vacuum pumps are oil lubricated vacuum pumps. Each Leybold D4B pump 11246 can be wire wired for low 230V 50/60 Hz, or High 400V 50/60Hz Voltage 3-Phase. The Leybold D 4 B is a well know pump with excelent reputation for vapor handling capability. The Leybold D4B pump has two vacuum stages with low vacuum and high vacuum which provided excelent ultimate vacuum pressure at < 2.0x10-3 mbar or <1.5x10-3 Torr. The Leybold D4B is perfectly suitable for many laboratory and research applications such as turbo pump backing pumps, diffusion pump backing pump, vacuum ovens, vacuum pumps for mass spectrometers, vacuum research laboratories, research projects. This Leybold D 4B pump is prepared for Hydrocarbon oil service, best vacuum pump oil to be used is Leybonol LVO 100 / PN16787, D4 oil requirement 0.3 L min, 0.9 L max. The TRIVAC D4 Pump has grate water vapor capacity of 157 g/h.

Leybold D 4 B pumps are also very quiet with nise level of 50 db(A) without gass ballast, and 52 db(A) with gass ballast open. Both Inlet and Exhaust ports are DN 16 ISO-KF. The gas ballast valve is opened with position 1 and closed with position 0. These Leybold D4B vane vacuum pumps are available with different motors with other voltage options listed below.

Leybold D4B TRIVAC Pumping speed:

Available D4B pump voltages configurations:

Leybold D4B Dual Stage Vacuum Pump with single phase motor 230VAC 50/60 hz, Leybold Part Number 11245

Leybold D4B Dual Stage Vacuum Pump with Three phase motor 230/400VAC 50/60 hz, Leybold Part Number 11246

Click Here to view D4B and D8B operation Manual to view all pump configurations

New Leybold D4 Pump is supplied with the following accessories:

• 1 Centering Ring
• 1 Centering ring with dirt trap
• 2 clamps DN 16 KF
• Operating instructions
• Spare parts list
• For pump protection during transit, both Inlet and exhaust ports are blanked with rubber diaphragms and supporting rings.

Typical TRIVAC D4B pump Applications:

• Electron beam welding
• Vacuum Ovens
• Leak detectors and Leak detector systems
• Surface analysis instruments
• Scanning electron microscopes
• Load lock
• Spectroscopy
• University Research Labs
• As a backing pump for turbomolecular pump systems

Leybold D4B TRIVAC Dimensions:

Click Here for Leybold D4B Manual

A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D4B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Leybold Vacuum D8B TRIVAC Vacuum Pump 6 CFM Pumping Speed, Single Phase 100/230V 50/60 HZ, 140082, D8

Leybold D8B TRIVAC Overview:

Power cable is not included.

The LEYBOLD TRIVAC D8B vacuum pumps are oil lubricated vacuum pumps. Each Leybold D8B pump 140082 can be wire wired for low 100V 50/60 Hz, or High 230V 50/60Hz Voltage.

The Leybold D 8 B is a well know pump with excelent reputation for vapor handling capability. The Leybold D8B pump has two vacuum stages with low vacuum and high vacuum which provided excelent ultimate vacuum pressure at < 2.0x10-3 mbar or <1.5x10-3 Torr. The Leybold D8B is perfectly suitable for many laboratory and research applications such as turbo pump backing pumps, diffusion pump backing pump, vacuum ovens, vacuum pumps for mass spectrometers, vacuum research laboratories, research projects. This Leybold D 8B pump is prepared for Hydrocarbon oil service, best vacuum pump oil to be used is Leybonol LVO 100 / PN16787, D8 oil requirement 0.3 L min, 0.9 L max. The TRIVAC D8 Pump has grate water vapor capacity of 157 g/h.

Leybold D 8 B pumps are also very quiet with nise level of 50 db(A) without gass ballast, and 52 db(A) with gass ballast open. Both Inlet and Exhaust ports are DN 16 ISO-KF. The gas ballast valve is opened with position 1 and closed with position 0. These Leybold D4B vane vacuum pumps are available with different motors with other voltage options listed below. 91255-1.

Leybold D8B TRIVAC Pumping speed:

Available D8B pump voltages configurations:

Leybold D 8 B Dual Stage Vacuum Pump with single phase motor 230VAC 50/60 hz, Leybold Part Number 11255

Leybold D4B Dual Stage Vacuum Pump with Three phase motor 230/400VAC 50/60 hz

Click Here to view D4B and D8B operation Manual to view all pump configurations

New TRIVAC D8B Pump is supplied with the following accessories:

• 1 Centering Ring
• 1 Centering ring with dirt trap
• 2 clamps DN 16 KF
• Operating instructions
• Spare parts list
• For pump protection during transit, both Inlet and exhaust ports are blanked with rubber diaphragms and supporting rings.

Typical D8B Vacuum pump Applications:

• Electron beam welding
• Vacuum Ovens
• Leak detectors and Leak detector systems
• Surface analysis instruments
• Scanning electron microscopes
• Load lock
• Spectroscopy
• University Research Labs
• As a backing pump for turbomolecular pump systems

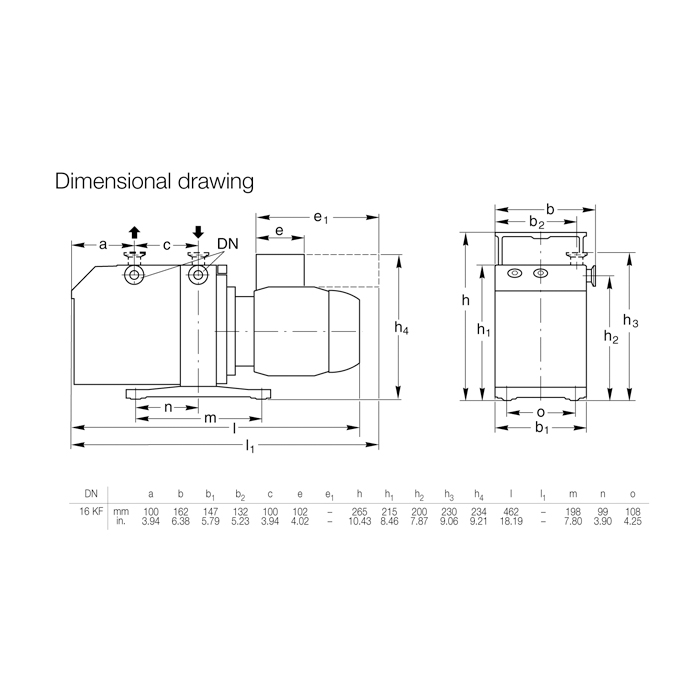

Leybold D8B TRIVAC Dimensions:

Mains Connection Cable sold separately based on required voltage selection

PN17771 / 115 VAC Mains Connection Cable, NEMA Plug, 20081090 Click Here

PN17772 / 208-230 VAC Mains Connection Cable, NEMA Plug, 20081091 / Click Here

Click Here for Leybold D8B TRIVAC Manual

A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D8B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Leybold D8B TRIVAC Vacuum Pump 1-Phase 230V 50 HZ, 6 CFM, 11255, D8

Leybold D8B TRIVAC Overview:

Power cable is not included.

The LEYBOLD TRIVAC D8B vacuum pumps are oil lubricated vacuum pumps. Each Leybold D8B pump 140082 can be wire wired for low 100V 50/60 Hz, or High 230V 50/60Hz Voltage.

The Leybold D 8 B is a well know pump with excelent reputation for vapor handling capability. The Leybold D8B pump has two vacuum stages with low vacuum and high vacuum which provided excelent ultimate vacuum pressure at < 2.0x10-3 mbar or <1.5x10-3 Torr. The Leybold D8B is perfectly suitable for many laboratory and research applications such as turbo pump backing pumps, diffusion pump backing pump, vacuum ovens, vacuum pumps for mass spectrometers, vacuum research laboratories, research projects. This Leybold D 8B pump is prepared for Hydrocarbon oil service, best vacuum pump oil to be used is Leybonol LVO 100 / PN16787, D8 oil requirement 0.3 L min, 0.9 L max. The TRIVAC D8 Pump has grate water vapor capacity of 157 g/h.

Leybold D 8 B pumps are also very quiet with nise level of 50 db(A) without gass ballast, and 52 db(A) with gass ballast open. Both Inlet and Exhaust ports are DN 16 ISO-KF. The gas ballast valve is opened with position 1 and closed with position 0. These Leybold D4B vane vacuum pumps are available with different motors with other voltage options listed below. 91255-1.

Leybold D8B TRIVAC Pumping speed:

Available D8B pump voltages configurations:

Leybold D 8 B Dual Stage Vacuum Pump with single phase motor 230VAC 50/60 hz, Leybold Part Number 11255

Leybold D4B Dual Stage Vacuum Pump with Three phase motor 230/400VAC 50/60 hz

Click Here to view D4B and D8B operation Manual to view all pump configurations

New TRIVAC D8B Pump is supplied with the following accessories:
