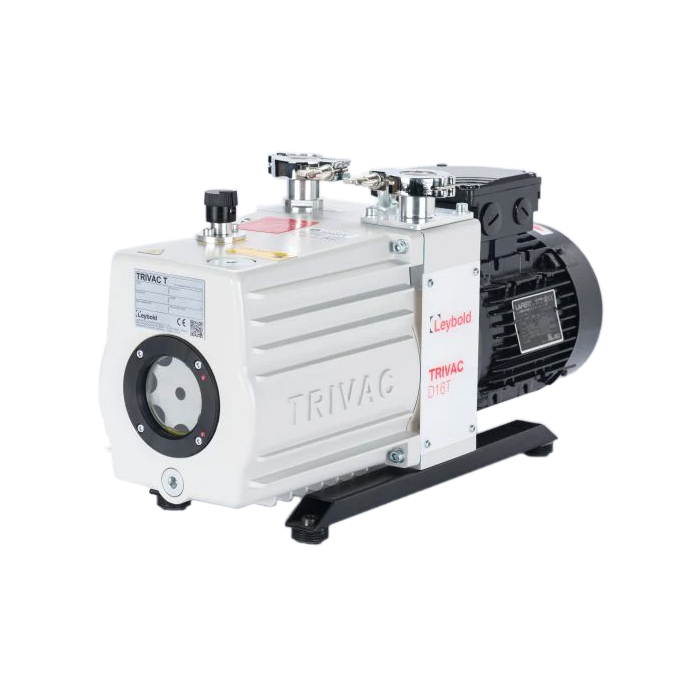

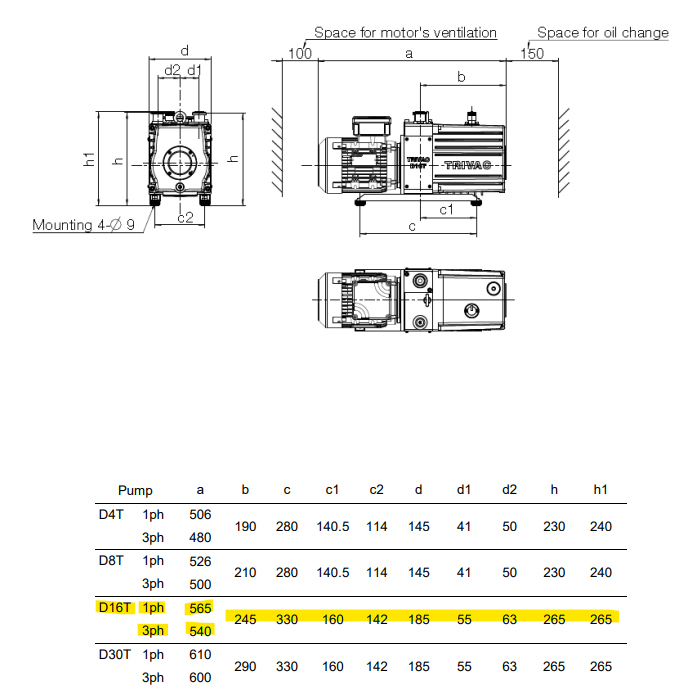

Leybold TRIVAC D 16 T Rotary Vane Pump, 50/60 Hz, 312 51TE / 31251TE
Leybold TRIVAC D 16 T Features:

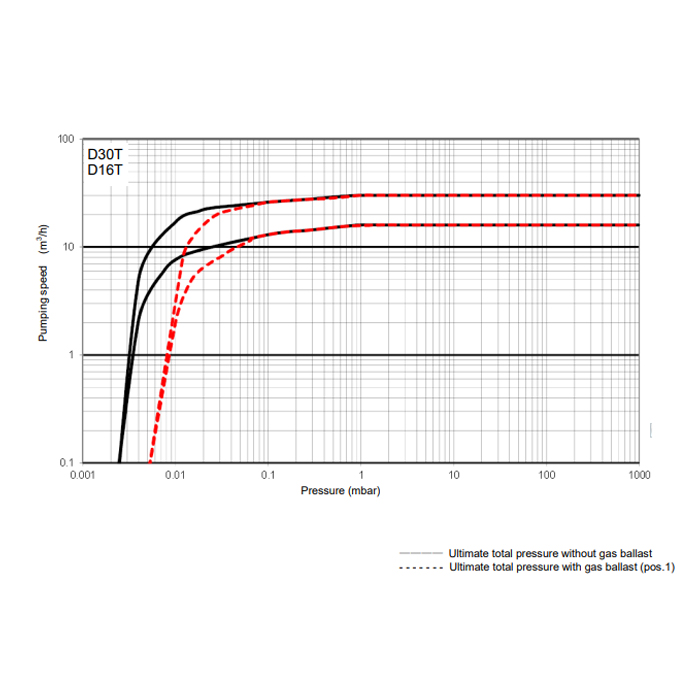

- Nominal pumping speed (50/60 Hz): 17.0 / 20.4 m3/h
- Ultimate pressure without gas ballast: 5 x 10-3 mbar
- DN 25 KF
TRIVAC D 16 T / 31251TE Overview:
The oil-sealed dual-stage TRIVAC T rotary vane vacuum pumps have the capability to pump gases and vapors and evacuate vessels or vacuum systems down into with the medium vacuum range. TRIVAC T pumps have been designed for safe and efficient use.
TRIVAC T pumps are not designed for the pumping of dusty, aggressive, corrosive, flammable or explosive gases or gases mixtures; for pumping of oxygen or other highly reactive gases with a greater concentration than atmospheric concentration (>21%); for working in flammable, explosive or dusty environments.
TRIVACD16T Scope of Delivery:
- Pump with motor
- 1 centering ring
- 1 centering ring with dirt trap
- 2 clamping rings DN 25KF
- 1 bottle of 1L oil
- Operating Instructions
- Spare Parts List
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of TRIVAC vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

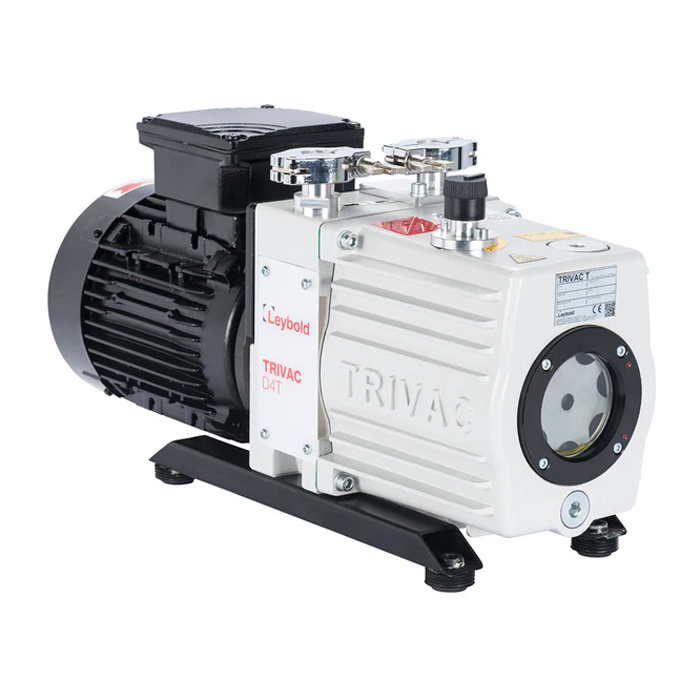

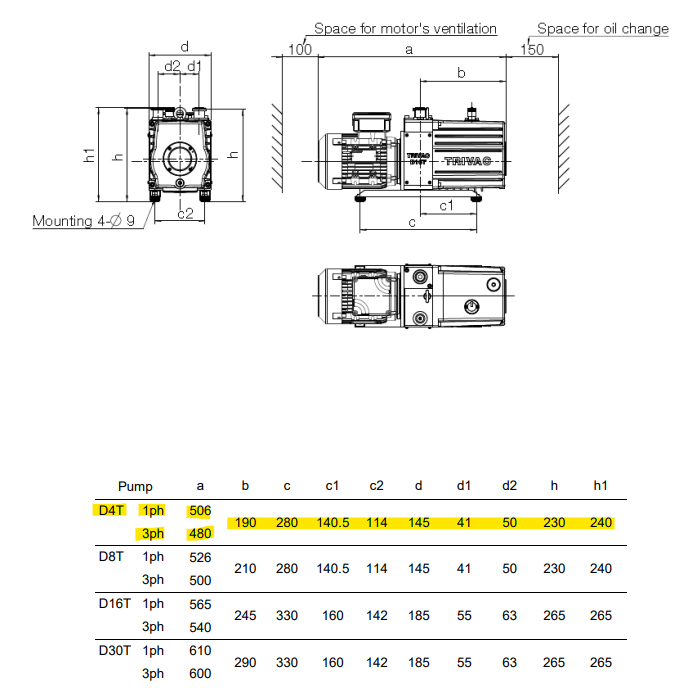

Leybold TRIVAC D 4 T Rotary Vane Pump, 50/60 Hz, 312 36TE / 31236TE
Leybold TRIVAC D 4 T Features:
- Nominal pumping speed (50/60 Hz): 5.3 / 6.4 m3/h
- Ultimate pressure without gas ballast: 5 x 10-3 mbar
- DN 16 KF
TRIVAC D 4 T / 31236TE Overview:
The oil-sealed dual-stage TRIVAC T rotary vane vacuum pumps have the capability to pump gases and vapors and evacuate vessels or vacuum systems down into with the medium vacuum range. TRIVAC T pumps have been designed for safe and efficient use.
TRIVAC T pumps are not designed for the pumping of dusty, aggressive, corrosive, flammable or explosive gases or gases mixtures; for pumping of oxygen or other highly reactive gases with a greater concentration than atmospheric concentration (>21%); for working in flammable, explosive or dusty environments.
TRIVACD4T Scope of Delivery:
- Pump with motor
- 1 centering ring
- 1 centering ring with dirt trap
- 2 clamping rings DN 16 KF or DN 25KF
- 1 bottle of 1L oil
- Operating Instructions
- Spare Parts List
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of TRIVAC vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

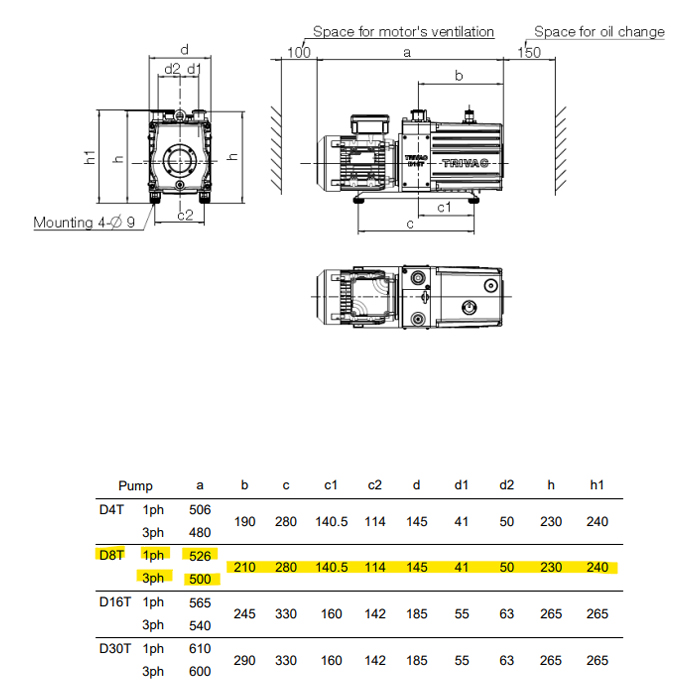

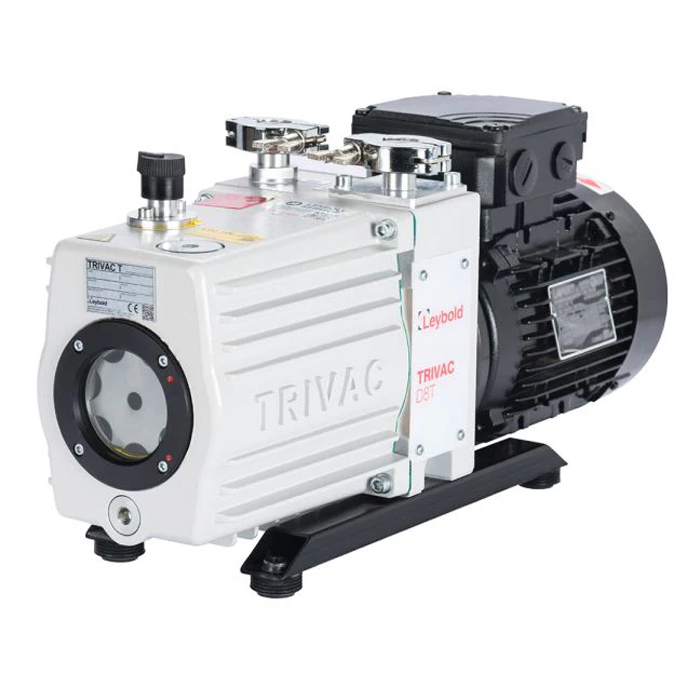

Leybold TRIVAC D 8 T Rotary Vane Pump, 50/60 Hz, 312 41TE25 / 31241TE25
Leybold TRIVAC D 8 T Features:
- Nominal pumping speed (50/60 Hz): 9.2 / 11.0 m3/h
- Ultimate pressure without gas ballast: 5 x 10-3 mbar
- DN 16 KF
TRIVAC D 8 T / 31241TE25 Overview:
The oil-sealed dual-stage TRIVAC T rotary vane vacuum pumps have the capability to pump gases and vapors and evacuate vessels or vacuum systems down into with the medium vacuum range. TRIVAC T pumps have been designed for safe and efficient use.
TRIVAC T pumps are not designed for the pumping of dusty, aggressive, corrosive, flammable or explosive gases or gases mixtures; for pumping of oxygen or other highly reactive gases with a greater concentration than atmospheric concentration (>21%); for working in flammable, explosive or dusty environments.
TRIVACD8T Scope of Delivery:
- Pump with motor
- 1 centering ring
- 1 centering ring with dirt trap
- 2 clamping rings DN 16 KF or DN 25KF
- 1 bottle of 1L oil
- Operating Instructions
- Spare Parts List
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of TRIVAC vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
