- Pumping Speed (50/60 Hz): 9 m3/h | 10 m3/h
- Ultimate Pressure with Gas Ballast: 8∙10-3 mbar
- Water Vapor Tolerance: 15 mbar
- Noise Level: 58 dB(A)
Shopping Cart ( )
Leybold TRIVAC D 8 T Rotary Vane Pump, 50/60 Hz, 312 41TE25 / 31241TE25
Condition:
New
Item#:PN58047
Mfr Part#:312 41TE25 / 31241TE25
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold TRIVAC D 8 T Rotary Vane Pump, 50/60 Hz, 312 41TE25 / 31241TE25
Leybold TRIVAC D 8 T Features:
- Nominal pumping speed (50/60 Hz): 9.2 / 11.0 m3/h
- Ultimate pressure without gas ballast: 5 x 10-3 mbar
- DN 16 KF
TRIVAC D 8 T / 31241TE25 Overview:
The oil-sealed dual-stage TRIVAC T rotary vane vacuum pumps have the capability to pump gases and vapors and evacuate vessels or vacuum systems down into with the medium vacuum range. TRIVAC T pumps have been designed for safe and efficient use.
TRIVAC T pumps are not designed for the pumping of dusty, aggressive, corrosive, flammable or explosive gases or gases mixtures; for pumping of oxygen or other highly reactive gases with a greater concentration than atmospheric concentration (>21%); for working in flammable, explosive or dusty environments.
TRIVACD8T Scope of Delivery:
- Pump with motor

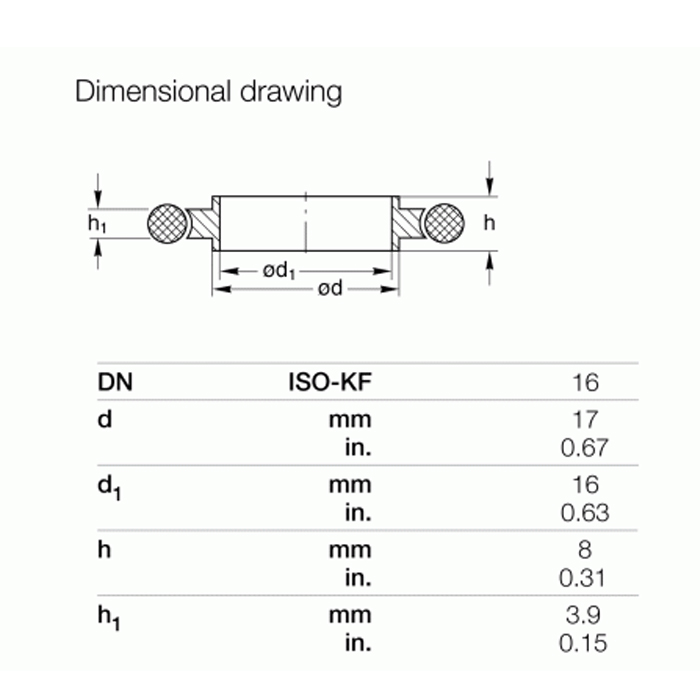

- 1 centering ring
- 1 centering ring with dirt trap
- 2 clamping rings DN 16 KF or DN 25KF
- 1 bottle of 1L oil
- Operating Instructions
- Spare Parts List
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of TRIVAC vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold TRIVAC D 8 T Rotary Vane Pump, 50/60 Hz, 312 41TE25 / 31241TE25
Leybold TRIVAC D 8 T Technical Data:
| Nominal pumping speed (50Hz) | 9.2 m3/h |
| Nominal pumping speed (60Hz) | 11.0 m3/h |
| Pumping speed (50Hz) | 9.0 m3/h |
| Pumping speed (60Hz) | 10.0 m3/h |
| Ultimate total pressure without gas ballast | 5∙10-3 mbar |
| Ultimate total pressure with gas ballast (pos. 1) | 8∙10-3 mbar |
| Ultimate total pressure with gas ballast (pos. 2) | 2∙10-2 mbar |
| Water vapour tolerance (pos. 2) | 15 mbar |
| Water vapour capacity (pos. 2) | 95 g/h |
| Oil filling, min./max. | 0.7/1 l |
| Noise level to DIN 45 635 without/with gas ballast | 56/58 dB(A) |
| Ambient temperature | 12 - 45 °C | 53.6 - 113 °C | 285.15 - 318.15 K |
| Weight without oil | 23 kg | 51 lb |
| Connections, intake and exhaust side (mm) | 16 KF DN |
| Single phase AC motor power 100-115V / 210-230V 50Hz 100-115V / 210-230V 60Hz |
320 W 400 W |
| Plug | 230V mains cord PN 20081091 (1.8m) with Schuko plug CEE 7/7 (included in delivery), 230V mains cord PN20081097 (1.8m) with UK plug BS 1363 (optional), 230V mains cord PN20081099 (1.8m) with CH plug SEV 1011 (optional), 230V main cord PN20081141 (1.8m) with US plug NEMA 6-15P (optional), 115V main cord PN20081090 (1.8m) with US plug NEMA 6-15P (included in delivery) |
| 3 phase AC motor power YY200-220V/Y380-415V 50Hz & YY200-220V/Y380-480V 60Hz |
370 W 440 W |
TRIVAC T pumps are not designed for the pumping of dusty, aggressive, corrosive, flammable or explosive gases or gases mixtures; for pumping of oxygen or other highly reactive gases with a greater concentration than atmospheric concentration (>21%); for working in flammable, explosive or dusty environments.
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of TRIVAC vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN57800
Mfr Part#:EK96004
Condition: Out of Stock
New
$59.99
Item#:PN11579
Mfr Part#:18971
Condition: Out of Stock
New
Price upon request
Item#:PN20445
Mfr Part#:ES19080
Condition: In Stock
New
In Stock
$220.00

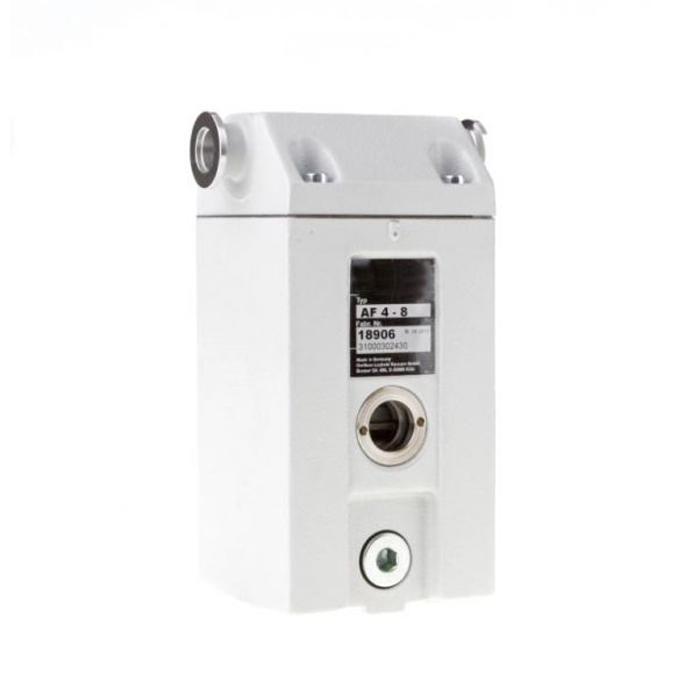

Item#:PN23514
Mfr Part#:18906
Condition: Out of Stock
New
$1,241.00
Item#:PN38281
Mfr Part#:19050
Condition: Out of Stock
New
Price upon request
Item#:PN58040
Mfr Part#:19090
Condition: Out of Stock
New
Price upon request

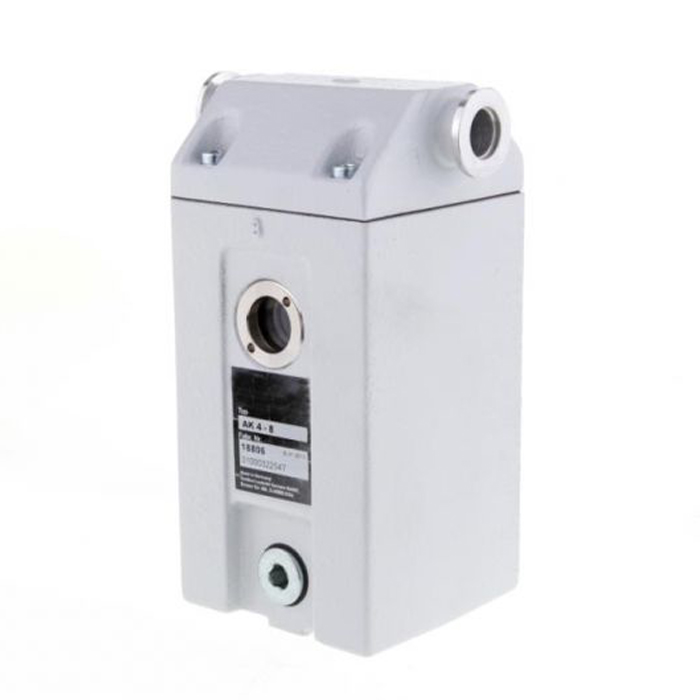

Item#:PN58041
