- Fully Refurbished
- P/N 800170V3006
- DN 100 CF
- TURBO.DRIVE 400
Shopping Cart ( )

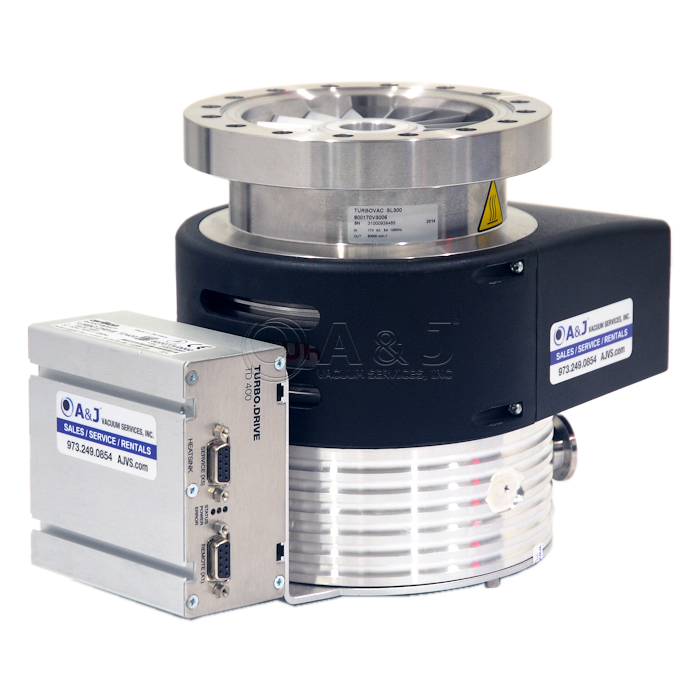

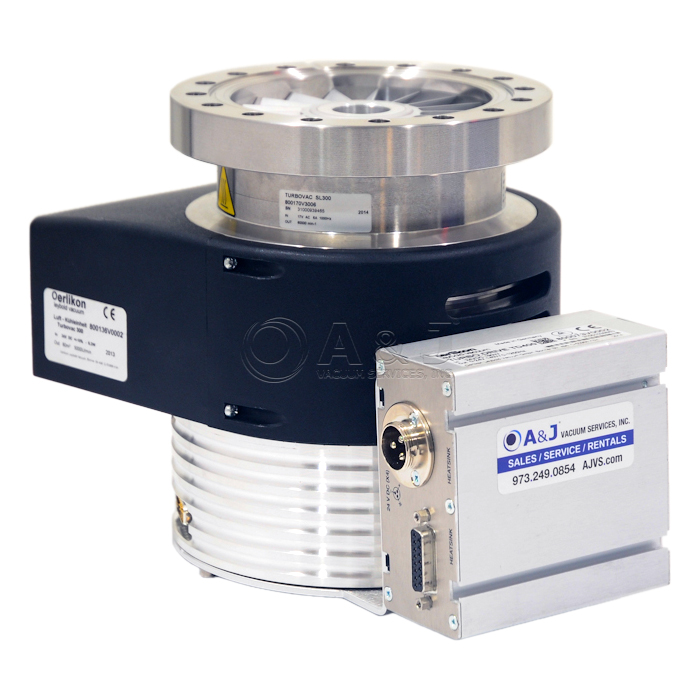

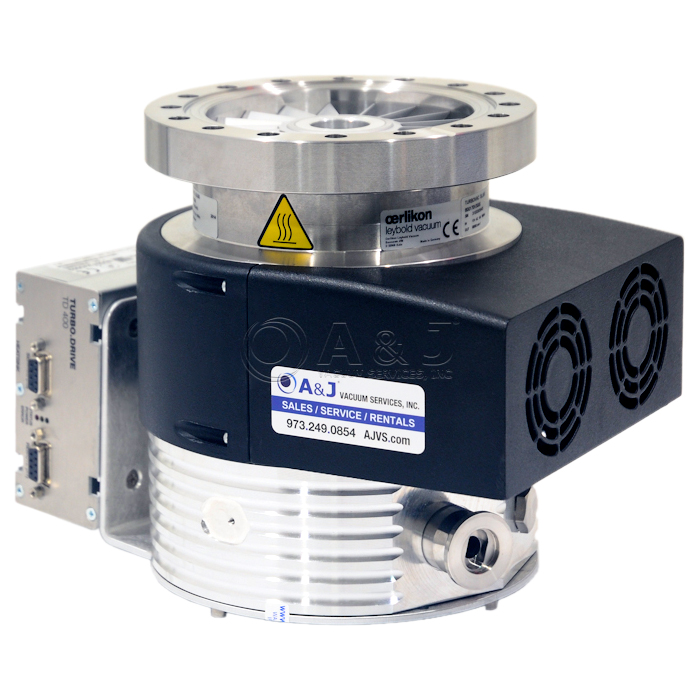

Leybold Turbovac SL 300 Turbo Pump with TD400 Controller and 24V DC Cooling Fan, DN 100 CF-F, 800170V3006 / 800073V0002
Condition:
Remanufactured
Call us for Availability
Item#:PN58199
Mfr Part#:800170V3006 / 800073V0002
Manufacturer:Leybold
Features:
Leybold Turbovac SL 300 Turbo Pump with TD400 Controller and 24V DC Cooling Fan, DN 100 CF-F, 800170V3006 / 800073V0002
Leybold Turbovac SL 300 Features:
- Safe and efficient operation
- Integrated or external frequency converter
- Compact design
- Space-saving
- Suitable for pumping air and clean gases
- Easy to integrate into complex vacuum systems
- Allows the use of down-sized fore-vacuum pumps
- Low operating costs
- Reliable operation
Turbovac SL 300 / 800170V3006 Overview:
The SL300 includes the fan, 800136V0002 and controller, 800073V0002. The pumps comprise essentially the pump housing, a multi-stage rotor with the stator group, and the drive.
The first section of the rotor is a turbomolecular pump rotor while the second tile represents a Holweck stage. The Holweck pumping stage increases the permissible forevacuum pressure level markedly when compared with the classic turbomolecular pump.
The rotor shaft runs in two lifetime lubricated ceramic ball bearings. The pump is driven by a split-cage DC motor. In this motor the rotor and stator windings are separated by a vacuum-tight can. Consequently the rotor runs inside the vacuum while the stator is outside the vacuum. This eliminates any need of vacuum feedthroughs. The pump is equipped with a temperature sensor and a resistor code.
Water cooling or an air cooling fan is available as optional equipment. The intake flange should be fitted with a wire mesh inlet screen to protect the pump against mechanical damage caused by foreign objects.
The pump is driven by an electronic frequency converter TURBO.DRIVE. All functions like, for example, speed control, pump sensing or temperature monitoring are monitored by the TURBO.DRIVE. This unit is powered by an external power supply.
The TURBO.DRIVE may be installed beside or underneath the pump or up to 5 m away. The pumps are equipped with a purge gas facility. The purge gas and venting connection is blanked off by default with a M8 closure screw. A purge gas and venting valve may be connected either directly or by using a M8 – DN16KF adapter. For space reasons, when the frequency converter is installed at the side, only either the air cooler or a purge gas valve can be connected.
This item has been fully tested and is ready for a wide variety of applications.
A&J Vacuum repair / rebuild and service all Leybold SL300 Turbo Pumps, Oerlikon SL 300 Pumps Leybold TMP Turbo Pump Service, Sogevac Pump Repair, Leybold Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold Turbovac SL 300 Turbo Pump with TD400 Controller and 24V DC Cooling Fan, DN 100 CF-F, 800170V3006 / 800073V0002
Leybold Turbovac SL 300 Technical Data:
| High-vacuum connection | DN 100 CF |
|

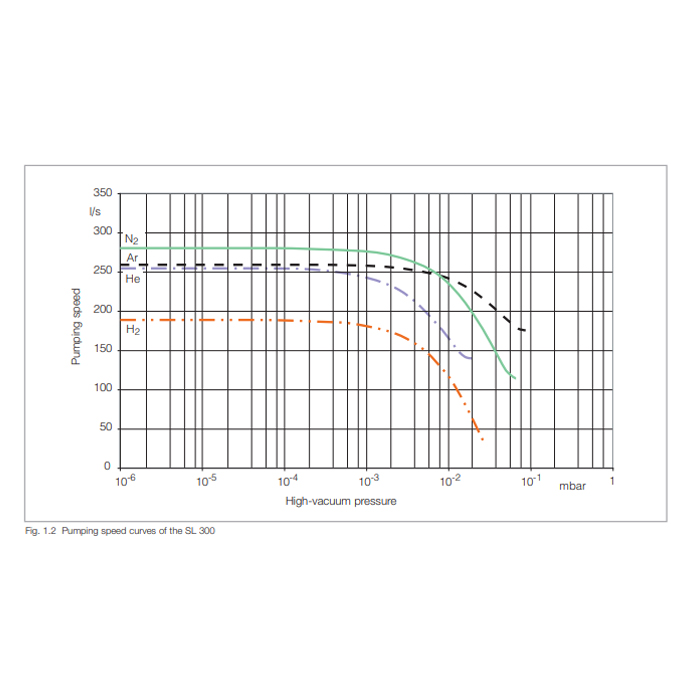

Pumping speed (without splinter guard) for |
270 l·s-1 260 l·s-1 255 l·s-1 190 l·s-1 |
| Ultimate pressure with two-stage, oil-sealed rotary vane pump with SCROLLVAC SC 30 with diaphragm pump |
< 10-10 mbar < 8·10-10 mbar < 4·10-9 mbar |
| Max. permissible forevacuum pressure with N2 water cooled |
< 8 mbar |
| Weight Pump with ISO-K flange with TURBO.DRIVE 400 with TURBO.DRIVE 400 and air cooler with TURBO.DRIVE 400 and water cooling Pump with CF flange |
5.2 kg 5.8 kg 6.3 kg 6.1 kg 7.4 kg |
| Recommended forevacuum pumps TRIVAC SCROLLVAC Diaphragm pump DIVAC (at purge gas operation) TRIVAC |
D 2,5 E SC 5 / SC 15 2.5 VT D 8 B |
| Operating speed | 60,000 min-1 |
| Run-up time | approx. 4 min |
| Power consumption at run-up at ultimate pressure |
115 W 18 W |
| Forevacuum connection | DN 16 KF |
| Purge gas connection | M8 or DN 16 KF |
| Type of protection | IP 20 |
| Noise level | < 49 dB(A) |
| Ambient temperature during operation, water cooled pump during operation, air cooled pump storage |
+15 - + 35 °C +15 - + 30 °C -15 - + 70 °C |
| Max. rel. air humidity | 95% (non-condensing) |
| Purge gas flow | 12 sccm / 0,2 mbar l·s-1 |
| Purge gas | Nitrogen, Argon or similar |
A&J Vacuum repair / rebuild and service all Leybold SL300 Turbo Pumps, Oerlikon SL 300 Pumps Leybold TMP Turbo Pump Service, Sogevac Pump Repair, Leybold Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
