- Fully Remanufactured
- P/N 800051V3001
- Oil free pump
- High pressure foreline tolerance
Shopping Cart ( )
Leybold TURBOVAC SL 700 Turbo Pump, 800051V3001
Condition:
Remanufactured
Call us for Availability
Item#:PN00220
Mfr Part#:800051V3001
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold TURBOVAC SL700 Turbo Pump, DN160ISOK, 800051V3001 Typical Applications Helium leak detectors
Leybold TURBOVAC SL700 Features
- Oil free pump
- High pressure foreline tolerance
- Excellent resistance to vibration due to proven mechanical bearings
- Efficient convection cooling due to a large number of cooling fins
- Purge gas/venting connection
- Installation in any orientation
- Flexible attachment of the frequency converter to the pump
- Small footprint
- Delayed venting through the frequency converter TURBO.DRIVE TD 400 (optional)
- Selection of interfaces, RS 232 C, RS 485 C, Profibus, Ethernet
- Helium leak detectors
- Mass spectrometers (gas chromatography GC-MS), liquid chromatography (LC-MS), residual gas analysis, mobile analytical systems, etc.)
- Electron beam microscopy
- XHV-/UHV systems
- Transfer chambers
Leybold SL700 Advantages to the User
- Easy to integrate into complex vacuum systems
- Space-saving
- Prepared for pumping of slightly corrosive gases owing to the seal gas connection
- High reliability, MTBF over 200,000 hours
- Matching accessories (fan, water cooling, seal gas/venting valves, power failure venting valves, flange heaters, different cable lengths etc.)
- High reliability due to self-monitoring

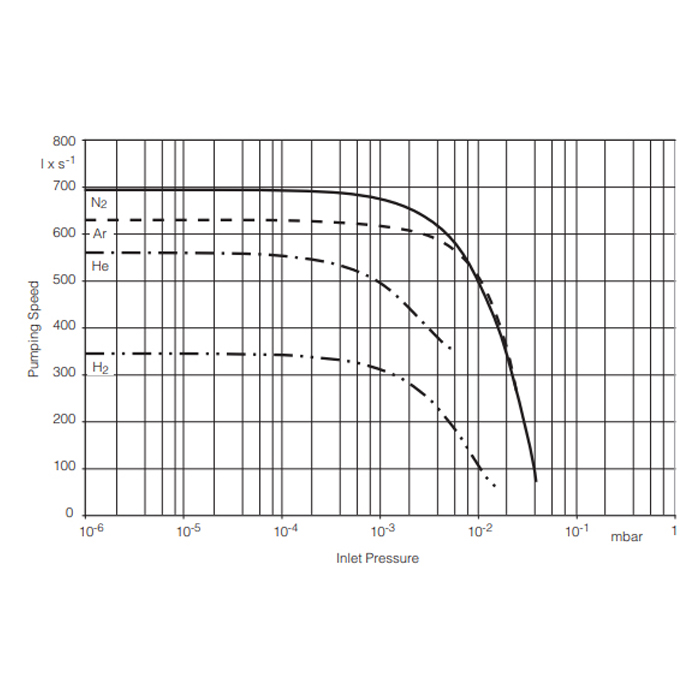

Leybold SL700 Pumping Speed:

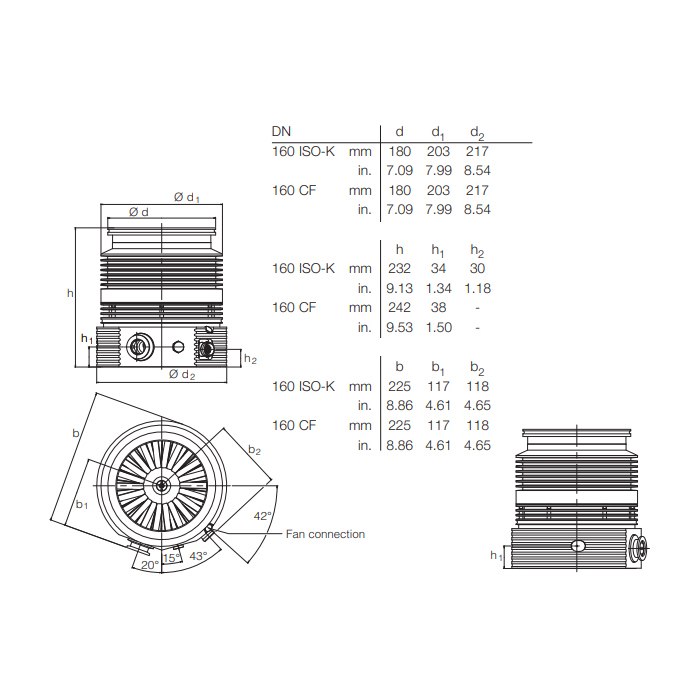

Leybold SL700 Dimensions:
A&J Vacuum Services offers full repair/service of Leybold SL700, along with all other brands offered on our website. AJVS also services Leybold Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Leybold TURBOVAC SL700 Turbo Pump, DN160ISOK, 800051V3001 Typical Applications Helium leak detectors

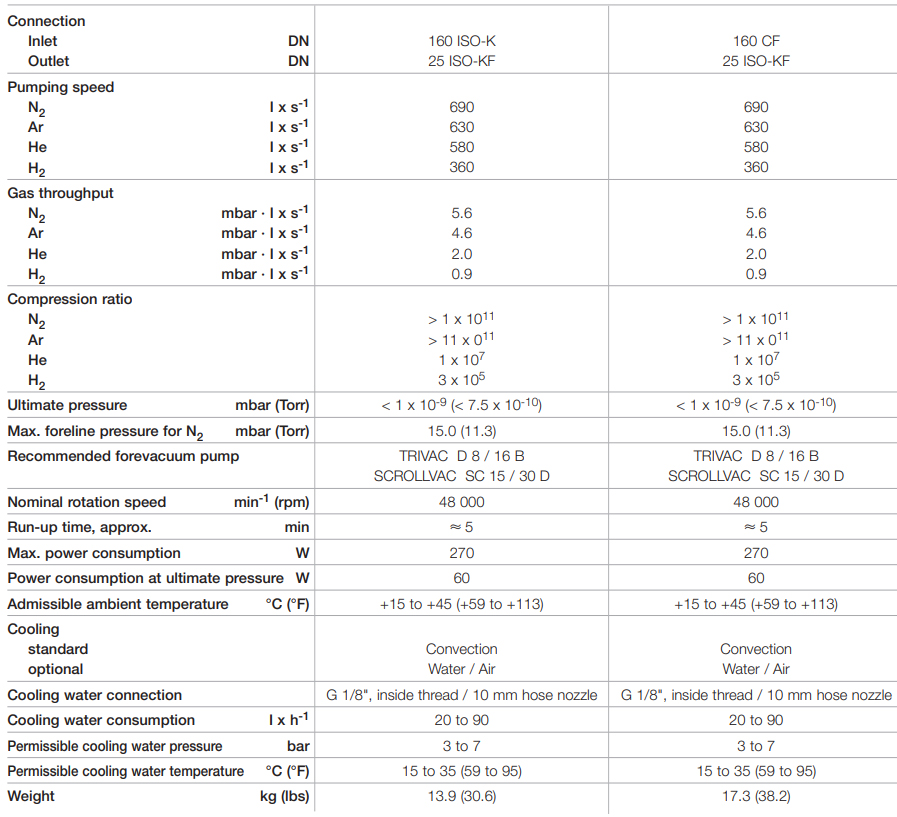

Leybold SL700 Technical Data:
A&J Vacuum Services offers full repair/service of Leybold SL700, along with all other brands offered on our website. AJVS also services Leybold Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
