- Flange (In) DN 25 ISO-KF
- Flange (Out) DN 25 ISO-KF
- Bellows: Welded AM-350
- Body: 304 Stainless Steel
Shopping Cart ( )

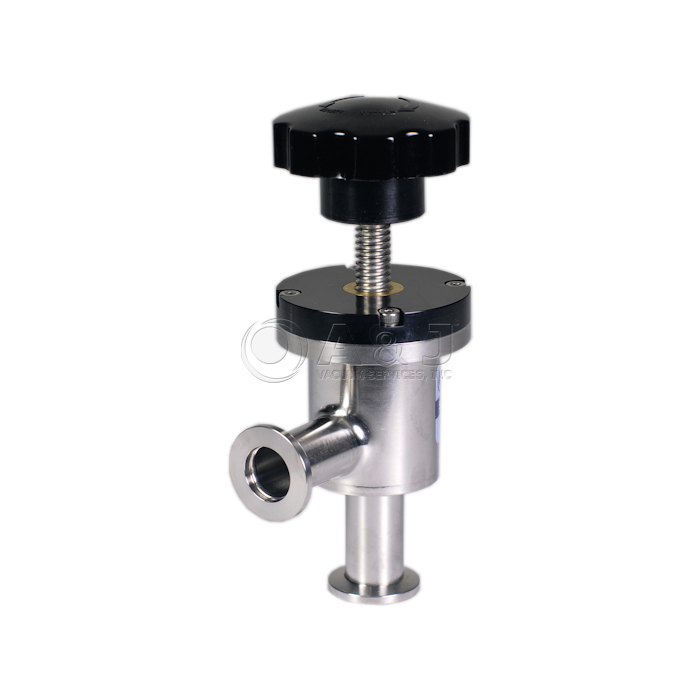

Manual Angle Valve KF-25 With Bellows, NW25, Stainless Steel, AVB-KF-25-M / PN16082
Condition:
New
In Stock
Item#:PN16082
Mfr Part#:AVB-KF-25-M / 300111010016
Manufacturer:AJVS
Features:
AJVS Manual Angle Valve KF-25 With Bellows, NW25, Stainless Steel, AVB-KF-25-M / PN16082
Overall Length (Opened): 5.89"
Overall Length (Closed): 5.13"
Overall Width: 3.15"
Body: 304 Stainless Steel
Poppet: 304 Stainless Steel
Bellows: Welded AM-350
Seal: Viton O-Ring
Leak Rate: 2 x 10-9 torr to 760 torr Viton seal bonnet
Max Pressure Before Opening: 1.2 Bar
Bake-Out Limitation: 150º C Viton seal bonnet
Those Stainess Steel manually and pneumatically operated valves are available with bellows and without bellows.
Connecting Flanges are available in KF, ISO, CF types, and Tube ends as well. AJVS offers all series angle valves suited for vacuum applications such as high vacuum process processes, high vacuum applications in pumping systems, semiconductor technology and research systems.
AJVS Manual Angle Valve KF-25 With Bellows, NW25, Stainless Steel, AVB-KF-25-M / PN16082
Overall Length (Opened): 5.89"
Overall Length (Closed): 5.13"
Overall Width: 3.15"
Body: 304 Stainless Steel
Poppet: 304 Stainless Steel
Bellows: Welded AM-350
Seal: Viton O-Ring
Leak Rate: 2 x 10-9 torr to 760 torr Viton seal bonnet
Max Pressure Before Opening: 1.2 Bar
Bake-Out Limitation: 150º C Viton seal bonnet
Those Stainess Steel manually and pneumatically operated valves are available with bellows and without bellows.
Connecting Flanges are available in KF, ISO, CF types, and Tube ends as well. AJVS offers all series angle valves suited for vacuum applications such as high vacuum process processes, high vacuum applications in pumping systems, semiconductor technology and research systems.
