- D2.5E Wet Backing Pump
- Leak Rate Measurement Range: 1 x 10-12 to 1 x 10-1 mbar x l x s-1
- Maximum Inlet Pressure: 15 mbar
- Inlet Flange: DN 25 ISO-KF
Shopping Cart ( )

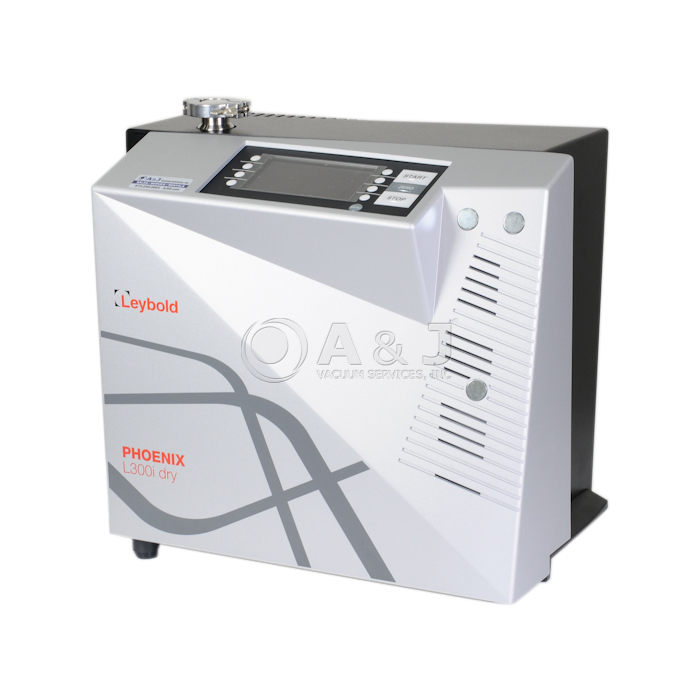

Leybold Phoenix L300i Helium Leak Detector, 251000V01, Rotary Pump, 1-ph, 115 VAC, 60 HZ (US)
Condition:
Discontinued
Item#:PN17214
Mfr Part#:251000V01
Manufacturer:Leybold
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Obsolete model !!! Leybold Phoenix L300i Helium Leak Detector, 251000V01, also known as Oerlikon L300i Leak Detector
PLEASE NOTE: THIS ITEM HAS BEEN OBSOLETE, REPLACED WITH NEW LINE OF PHOENIX QUADRO SYSTEM. CLICK HERE TO VIEW IT PN22177.
Full Service / Repair of Leybold Phoenix L300i Helium Leak Detectors is available at AJVS Service Center. Contact Us to request service estimate.
Leybold Phoenix L300i Overview:
Leybold Phoenix L300i represents next Generation in Helium Leak Testing. Phoenix L300i Helium Leak Detector opens up new domensions of productivity and reliability for your applications.
The Leybold Phoenix L300i is a portable multipurpose helium leak detector and equally well suited to both service and series production testing. The rugged modular design and its ease of use make the Phoenix L300i one of the most user-friendly leak detectors in its class.
Leybold Helium Leak Detectors permit the localization of leaks and the quantitative determination of the leak rate. In practice the leak detector performs this task by firstly evacuating the part which is to be tested, so that gas from the outside may enter through an existing leak due to the pressure difference present. If only helium is brought in front of the leak (for example by using a spray gun) this helium flows through the leak and is pumped out by the leak detector. The helium partial pressure present in the leak detector is measured by a sector mass spectrometer and is displayed as a leak rate. This is usually given in terms of volume flow of the helium.
Leybold Phoenix L300 Applications:
- Quality Assurance
- Ideal Tool for industrial series production testing
- Automotive Industry
- Analytical Instruments
- Systems Manufacture
- Power Station Engineering
- Research and Development
- Semiconductor Industry
- High Vacuum and Ultra-High Vacuum Engineering
Phoenix L300i Product Highlights:
- Most compact unit in class
- Quick start up (<2 min)
- Extremly fast responce
- High sensitivity
- Most robust and reliable ion source
- Flexable application areas
- Maximum mobility due to the wireless remote control RC 310 WL
Phoenix L300i Customer Benefits;
- Lowest detectable leak rate for helium <5 x 10-12 mbar l/s
- Leak detection starting at an inlet pressure of 15 mbar
- Short He recovering time (<5 min. )
- 10 display languages selectable
- Switchable for the detection of H2, 3He, and He
- Helium background suppression upon single key press (Auto-Zero)
- Trend /bargraph leak rate display
- Oil-sealed or dry compresing backing pumps for rapidevacuation of the device under test and for producing a high gas flow in the sniffer mode
- The optimised valve block ensures a significaly reduced recovery time after suffering helium contamination and high pumping speed at inlet.
PHOENIX Leak Detector Set-up and options:
- PHOENIX L300i / Oil sealed vacuum system. Optimazed leak detector for most standard applications (Ordering PN17214 / 251000)
- PHOENIX L300i Dry / Entirely oil-free vacuum system. Integrated helium contamination protection. (Ordering PN17215 / 251001V01)
- PHOENIX L300i Modul / Additional forevacuum system oil-sealed or dry, depending on the application. For applications involvingshort cycles and/or testing of large volumes.
- PHOENIX L300i Cart / Modular and mobile system; The Leybold PHOENIX L300i is configured according to customers needs.
Supperior Design Characteristics:
- Phoenix L300i offers angled operating panel for easy visibility of the instrument status
- Oil Level glass at the housing for simple oil level checks.
- Extremly long service life of the cathodes due to their Iridium/Yttrium coating.
Leybold Phoenix L300i Dimensions:
Click Here for Leybold Phoenix L300i Operating Instructions Manual
Click Here for Product Brochure
Click Here for Leybold Phoenix Leak Detector Instruments Catalog
A&J Vacuum repair / rebuild and service all Leybold Oerlikon Phoenix 300i Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Vacuum Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold Phoenix L300i Oerlikon Helium Leak Detector, 251000V01, Rotary Pump, DEMO UNIT, 1-ph, 115 VAC, 60 HZ (US), 251000V01
Leybold Phoenix L300i Technical Data:
| Minimum Detectable Helium Leak Rate: |
Vacuum Mode: < 5 x 10-12 mbar x l x s-1 |
| Minimum Detectable Helium Leak Rate: |
Sniffer Mode: < 1 x 10-7 mbar x l x s-1 |
| Minimum Detectable Hydrogen Leak Rate: |
Vacuum Mode: < 1 x 10-8 mbar x l x s-1 |
| Minimum Detectable Hydrogen Leak Rate: |
Sniffer Mode: < 1 x 10-7 mbar x l x s-1 |
| Leak Rate Measurement Range: | 1 x 10-12 to 1 x 10-1 mbar x l x s-1 |
| Measurement Ranges: | 12 decades |
| Maximum Inlet Pressure: | 15 mbar |
| Pumping Speed (50 Hz): | 1.5 cfm |
| Pumping Speed (60 Hz): | 1.8 cfm |
| Inlet Flange: | DN 25 ISO-KF |
| Weight: | 40 kg / 88 lbs |
Click Here for Leybold Phoenix L300i Operating Instructions Manual
Click Here for Product Brochure
Click Here for Leybold Phoenix Leak Detector Instruments Catalog
A&J Vacuum repair / rebuild and service all Leybold Oerlikon Phoenix 300i Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Vacuum Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold_Leak_Detection_Brochure.pdf
Oerlikon Phoenix L300i Manual
Leybold_Leak_Detecting_Instruments_Catalog.pdf
Leybold RC310C, RC310WL, RC 310C, and RC 310 WL ,252013V01, 252014V01, Operating instruction, Manual
Item#:PN16853
Mfr Part#:252003
Condition: In Stock
New
In Stock
$2,140.00
Item#:PN20193
Mfr Part#:252013V01
Condition: Out of Stock
New
$3,096.00
Item#:PN20194
Mfr Part#:252014V01
Condition: In Stock
New
In Stock
$4,232.00
Item#:PN22807
Mfr Part#:14020
Condition: Out of Stock
New
$3,800.00
Item#:PN22945
Mfr Part#:16 555 / 16555
Condition: In Stock
New
In Stock
$525.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
