Leybold RC310WL Remote Control for Phoenix L300i Helium Leak Detector, 252014V01, RC 310C Wireless

Leybold RC310WL Wireless Remote Control for Phoenix L300i Helium Leak Detector, 252013V01, also known as Oerlikon RC310WL Model

Leybold RC310C Hand Held Wireless Remote controller enables Phoenix Leak Detector user to step away from the Helium Leak Detector and be able to control leak testing and to view screen with Leak Rate reading.

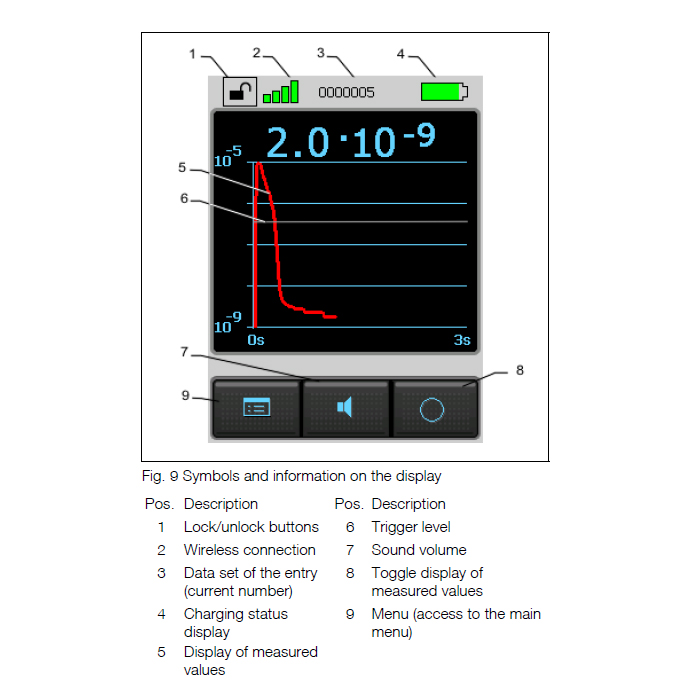

Leybold RC 310C is a compact, light weight and easy to use Remote control with bright and clear display.

Wireless Range >100 m in free field

The RC310 Remote Control has been design to operate the following Leak Detectors;

Phoenix L300i

Phoenix L300

Phoenix L200

The former wired remote control P/N 252002 can be replaced by the Leybold RC310 Controler.

Supplied Equipment:

• Remote Control / 252014V01

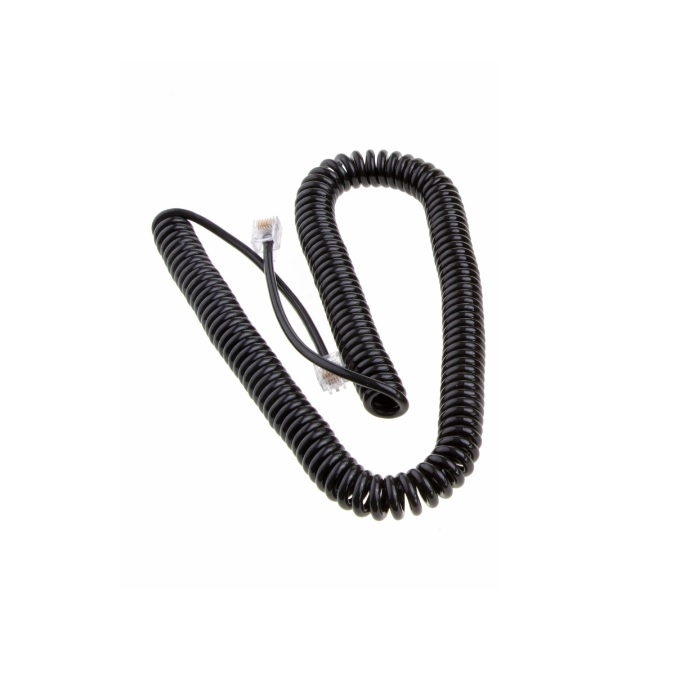

• Connection Cable 4 m
• Wall Plug in power supply (for integrated battery)
• Radio Transmitter
• Connection Cable for radio transmitter
• Operating Instructions

RC310C Remote Control is designed for Leybold Phoenix L300i Helium Leak Detector which is the next Generation in Helium Leak Testing. Phoenix L300i Helium Leak Detector opens up new domensions of productivity and reliability for your applications.

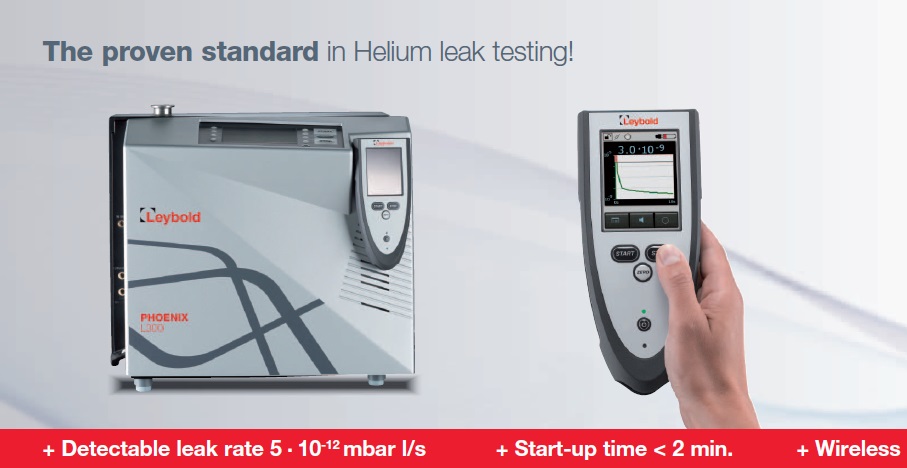

The Leybold Phoenix L300i is a portable multipurpose helium leak detector and equally well suited to both service and series production testing. The rugged modular design and its ease of use make the Phoenix L300i one of the most user-friendly leak detectors in its class.

Leybold Helium Leak Detectors permit the localization of leaks and the quantitative determination of the leak rate. In practice the leak detector performs this task by firstly evacuating the part which is to be tested, so that gas from the outside may enter through an existing leak due to the pressure difference present. If only helium is brought in front of the leak (for example by using a spray gun) this helium flows through the leak and is pumped out by the leak detector. The helium partial pressure present in the leak detector is measured by a sector mass spectrometer and is displayed as a leak rate. This is usually given in terms of volume flow of the helium.

Leybold Phoenix L300i Applications:

• Quality Assurance
• Ideal Tool for industrial series production testing
• Automotive Industry
• Analytical Instruments
• Systems Manufacture
• Power Station Engineering
• Research and Development
• Semiconductor Industry
• High Vacuum and Ultra-High Vacuum Engineering

Phoenix L300i Product Highlights:

• Most compact unit in class
• Quick start up (<2 min)
• Extremly fast responce
• High sensitivity
• Most robust and reliable ion source
• Flexable application areas
• Maximum mobility due to the wireless remote control RC 310 WL

Phoenix L300i Customer Benefits;

• Lowest detectable leak rate for helium <5 x 10-12 mbar l/s
• Leak detection starting at an inlet pressure of 15 mbar
• Short He recovering time (<5 min. )
• 10 display languages selectable
• Switchable for the detection of H2, 3He, and He
• Helium background suppression upon single key press (Auto-Zero)
• Trend /bargraph leak rate display
• Oil-sealed or dry compresing backing pumps for rapidevacuation of the device under test and for producing a high gas flow in the sniffer mode
• The optimised valve block ensures a significaly reduced recovery time after suffering helium contamination and high pumping speed at inlet.

PHOENIX Leak Detector Set-up and options:

• PHOENIX L300i / Oil sealed vacuum system. Optimazed leak detector for most standard applications (Ordering PN17214 / 251000V01)
• PHOENIX L300i Dry / Entirely oil-free vacuum system. Integrated helium contamination protection. (Ordering PN17215 / 251001V01)
• PHOENIX L300i Modul / Additional forevacuum system oil-sealed or dry, depending on the application. For applications involvingshort cycles and/or testing of large volumes.
• PHOENIX L300i Cart / Modular and mobile system; The Leybold PHOENIX L300i is configured according to customers needs.

Supperior Design Characteristics:

• Phoenix L300i offers angled operating panel for easy visibility of the instrument status
• Oil Level glass at the housing for simple oil level checks.
• Extremly long service life of the cathodes due to their Iridium/Yttrium coating.

A&J Vacuum repair / rebuild and service all Leybold Oerlikon  Phoenix L300i Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Vacuum Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
