- ACP 40
- Single Phase
- Pumping Speed: 37 m3/h
- Ultimate Pressure: 4 · 10-2 mbar
Shopping Cart ( )

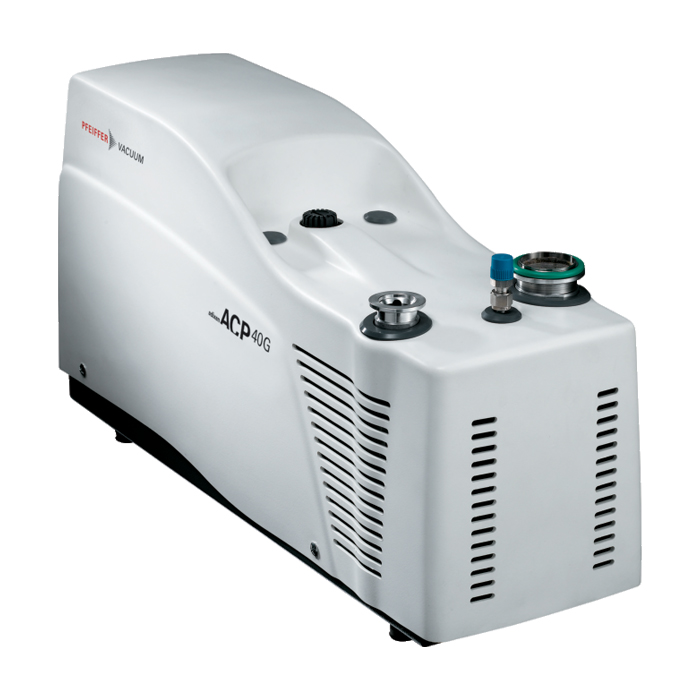

Pfeiffer ACP 40 Dry Vacuum Pump, Manual Gas Ballast, Single Phase, Standard, 110-230 V (50/60 Hz), 2000000611 / V8SACSGEMF
Condition:
New
Item#:PN55428
Mfr Part#:2000000611 / V8SACSGEMF
Manufacturer:Pfeiffer-Vacuum
Features:
Pfeiffer ACP 40 Dry Vacuum Pump, Manual Gas Ballast, Single Phase, Standard, 110-230 V (50/60 Hz), 2000000611 / V8SACSGEMF
Pfeiffer ACP 40 Dry Vacuum Pump Features:
- For all standard processes
- Manual gas ballast
- One phase motor
- EU mains cable
- Integrated electronic drive unit
ACP 40 Dry Vacuum Pump / V8SACSGEMF Overview:
The Pfeiffer ACP pump series satisfies the requirements of applications where a clean and dry vacuum is needed. The ACP series includes different pump versions.
Standard version pumps come with a gas ballast device to improve the pumping of light gases and avoid vapor condensation inside pump.
ACP40 DryVacuumPump Scope of Delivery:
- 1 vacuum pump
- 1 remote cover plug for remote connector (connected to the pump)
- 1 operating instruction manual
- 1 sheet of multilingual labels
- According to the ordering configuration:
- 1 mains supply cable
ACP40 DryVacuumPump Applications:
- Semiconductor manufacturing
- Vacuum packaging
- Medical and pharmaceutical
- R&D
- Analytics
A&J Vacuum services and repairs Pfeiffer ACP Dry Vacuum Pumps, along with all other Pfeiffer Vacuum Multi-Stage Dry Roots Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer ACP 40 Dry Vacuum Pump, Manual Gas Ballast, Single Phase, Standard, 110-230 V (50/60 Hz), 2000000611 / V8SACSGEMF
Pfeiffer ACP 40 Dry Vacuum Pump Technical Data:
| Ambient temperature | 12 – 40 °C | 53.6 – 104 °F | 285.15 – 313.15 K |
| Connection flange | DN 40 ISO-KF / DN 25 ISO-KF |
| Connection flange (in) | DN 40 ISO-KF |
| Connection flange (out) | DN 25 ISO-KF |
| Continuous inlet pressure, max. | 1013 hPa | 759.75 Torr | 1,013 mbar |
| Cooling method | Air (Forced convection) |

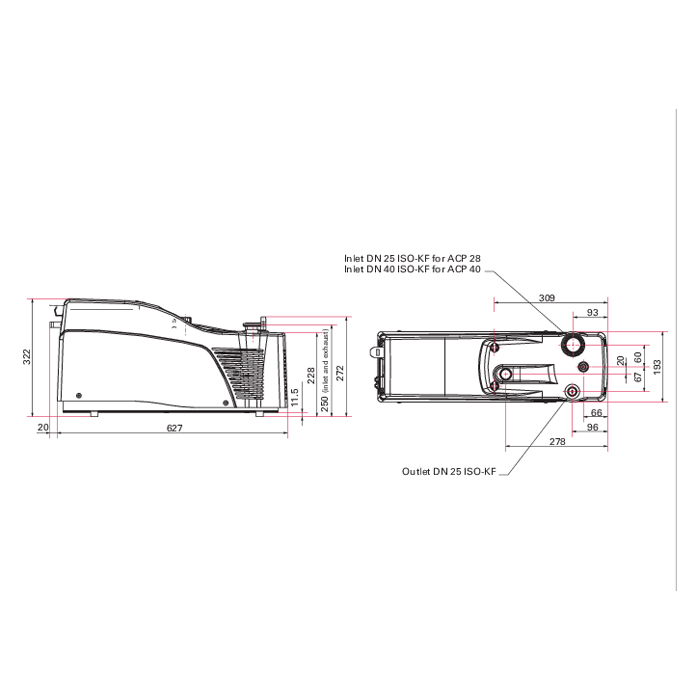

| Dimensions (L x W x H) | 647 x 193 x 322 mm | 25.47 x 7.6 x 12.68 inch |
| Emission sound pressure level (EN ISO 2151) | 65 dB(A) |
| Exhaust pressure, max. | 1200 hPa | 900 Torr | 1,200 mbar |
| Gas ballast | Yes |
| Gas ballast flow | 2.4 m³/h | 1.41 cfm | 40 l/min |
| Helium leakage rate, max. | 5 · 10-7 hPa·l/s |
| Input voltage(s) | 110 – 230 V AC (±10 %), 50/60 Hz |
| Mains cable | Yes, EU mains cable |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Max. pumping capacity of pure water vapor at 20°C | 120 g/h |
| Motor for region | Worldwide |
| Motor type | 1-phase motor |
| Power consumption at ultimate pressure | 700 W |
| Processes | Light duty applications |
| Pumping principle | Dry |

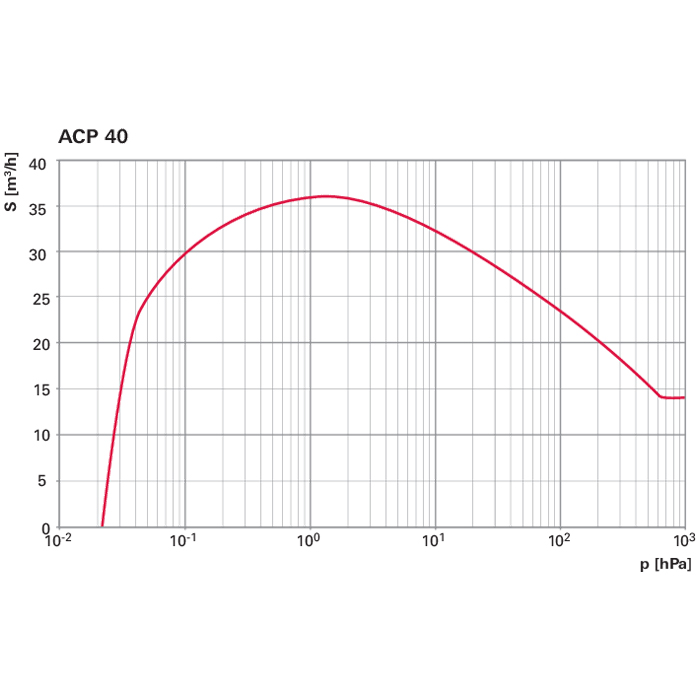

| Pumping speed | 37 m³/h | 21.78 cfm | 616.67 l/min |
| Type of electronic drive unit installation | Integrated electronic drive unit |
| Typical ultimate pressure with gas ballast | 2 · 10-1 hPa | 0.15 Torr | 0.2 mbar |
| Typical ultimate pressure without gas ballast or purge | 4 · 10-2 hPa | 3 · 10-2 Torr | 4 · 10-2 mbar |
| Ultimate pressure | 4 · 10-2 hPa | 3 · 10-2 Torr | 4 · 10-2 mbar |
| Ultimate pressure with gas ballast | 2 · 10-1 hPa | 0.15 Torr | 0.2 mbar |
| Ultimate pressure without gas ballast or purge, max. | 4 · 10-2 hPa | 3 · 10-2 Torr | 4 · 10-2 mbar |
| Version | Standard |
| Weight | 32 kg | 70.55 lb |
