Found 2 products
Item#: PN20080 Mfr Part#: ACG600GSP11111 Manufacturer: Adixen / Alcatel
PRICE: $46,640.00
WEB SAVINGS: $4,240.00
YOU PAY: $42,400.00

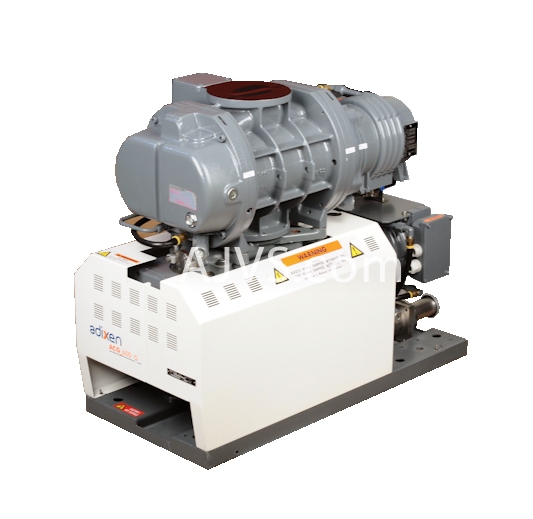

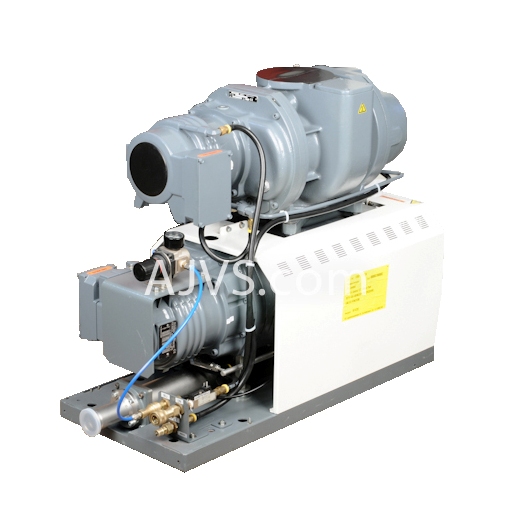

Adixen Pfieffer ACG600G Dry Vacuum Pump, 200 V to 480 V, 50/60 Hz, with Integrated Gas Ballast, ACG 600 G SP 11111



Pfeiffer ACG 600G Industrial Dry Vacuum Pump - Product Overview:


Based on the multi-stage Roots technology, the Pfeiffer Vacuum ACG 600 G Dry Vacuum Pump is the result of over twenty years of experience in manufacturing dry vacuum pumping solutions. ACG 600 G pumping groups provide all the benefits of clean and dry vacuum whenever particulate or oil contamination is an issue. A specific version is also available for the pump down of large chamber volumes > 1 m3.



Pfeiffer ACP 15 G, V5GATSRFEF



Pfeiffer ACG 600G Features:


  • For higher pumping speed requirement, the ACG 600 G pumping group combines the ACP 120 G dry pump with a Roots pump 600 m3/h
  • High Maximum Pumping Speed of 560 Cubic Meters/Hour (560 m^3/h)
  • Equipped with a purge gas port for slightly corrosive processes or for pumping down condensable media
  • Includes Optional Large Volume Option
  • Cleanliness: No risk of particulate contamination due to frictionless and oil-free pumping module
  • High Performance: High pumping speed, low power consumption, low ultimate pressure, resistant to harsh cycling
  • High Reliability: Based on multi-stage Roots technology, resulting in optimum up-time
  • Extended life time between maintenance: Typical four years interval between complete overhaul on clean applications, simple bearing replacement

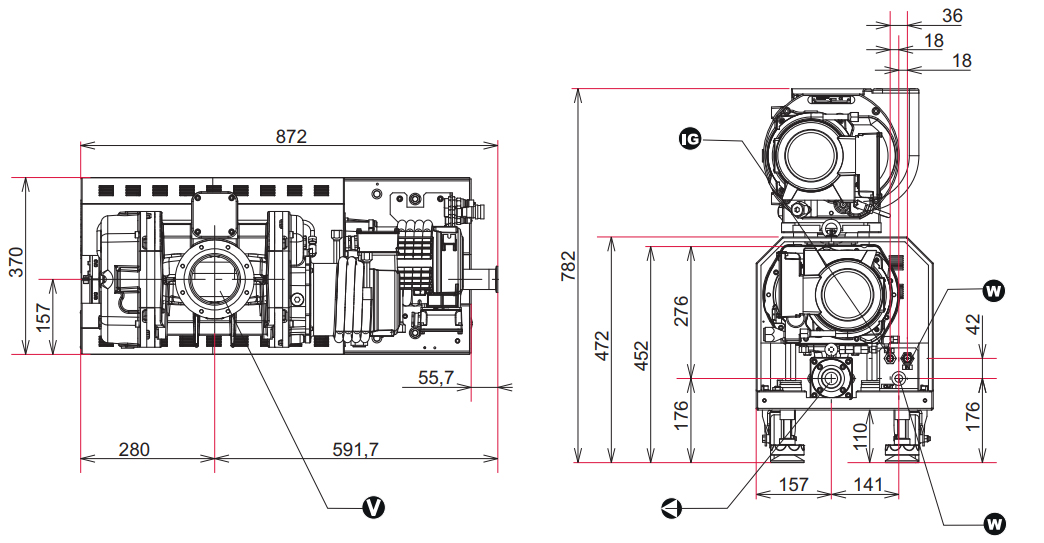

Pfeiffer ACG 600G Dimensions:


Pfeiffer Dimensions ACG 600G, ACG600GSP11111




Click Here for Pfeiffer ACG 600G Manual


A&J Vacuum services and repairs Pfeiffer ACG 600 G Industrial Dry Vacuum Pumps, along with all other Pfeiffer Vacuum Multi-Stage Dry Roots Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN23198 Mfr Part#: ACP120GSP11111 Manufacturer: Adixen / Alcatel
PRICE: $31,020.00
WEB SAVINGS: $2,820.00
YOU PAY: $28,200.00

Adixen Pfieffer ACP 120 G Dry Vacuum Pump, 200 V to 480 V, 50/60 Hz, with Integrated Gas Ballast, ACP120, ACP120GSP11111



Pfeiffer ACP 120G Industrial Dry Vacuum Pump - Product Overview:


Based on the multi-stage Roots technology, the ACP 120 G is the result of over 20 years of experience in manufacturing dry vacuum pumping solutions. ACP 120 G pumps provide all the benefits of clean and dry vacuum whenever particulate or oil contamination is an issue. A specific version is also available for the pump down of large chamber volumes > 1 m3.

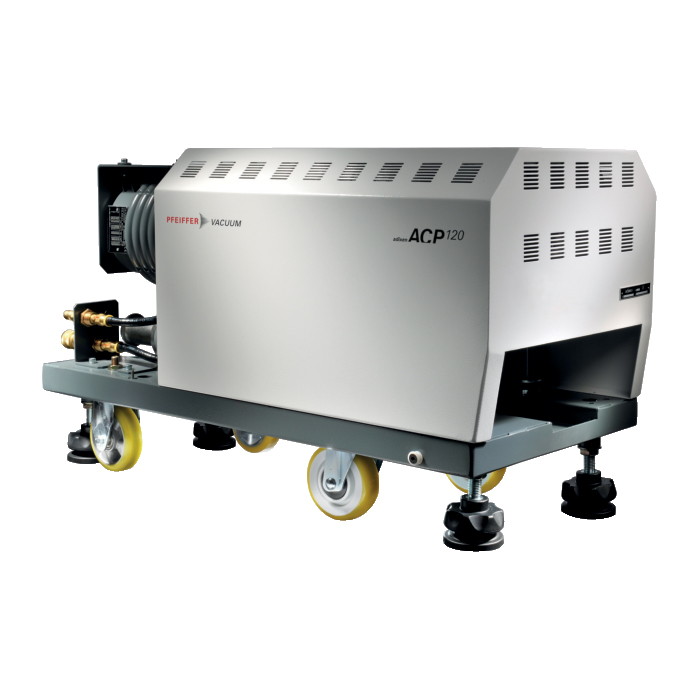

Pfeiffer ACP 120 G, ACP120GSP11111



Pfeiffer ACP 120G Features:


  • Industrial Dry Vacuum Pump for Many R&D and Industrial Applications
  • High Maximum Pumping Speed of 110 m^3/h
  • Equipped with a purge gas port for slightly corrosive processes or for pumping down condensable media
  • Includes a Large Volume Option
  • Cleanliness: No risk of particulate contamination due to frictionless and oil-free pumping module
  • High performance: High pumping speed, low power consumption, low ultimate pressure, resistant to harsh cycling
  • High reliability: Based on multi-stage Roots technology, resulting in optimum up-time
  • Extended life time between maintenance: Typical four years interval between complete overhaul on clean applications, simple bearing replacement
  • Water cooled
  • Integrated Nitrogen gas ballast to protect the pump from corrosive or condensable gases
  • Optional version with 5–40 ISO-K inlet pipe
  • Optional large volume version

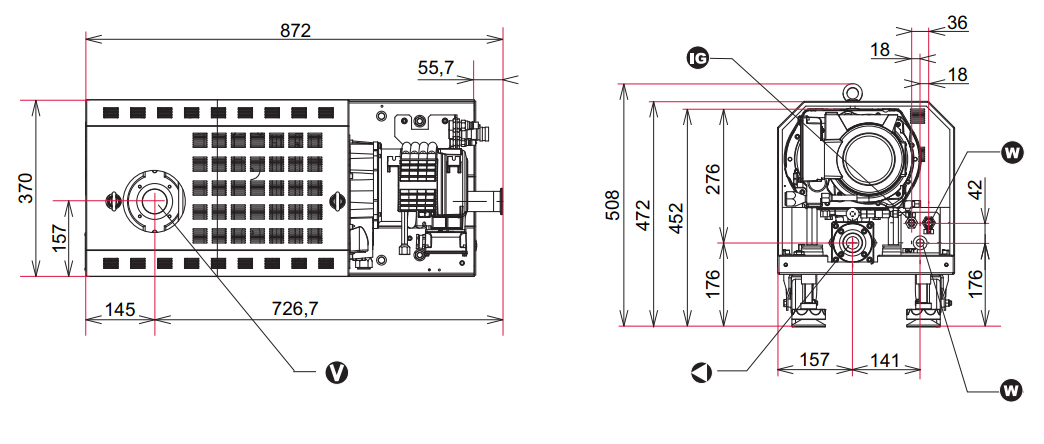

Pfeiffer ACP 120G Dimensions:


Pfeiffer Dimensions ACG 120G, ACG120GSP11111




Click Here for Pfeiffer ACP 120G Manual


A&J Vacuum services and repairs Pfeiffer ACG 600 G Industrial Dry Vacuum Pumps, along with all other Pfeiffer Vacuum Multi-Stage Dry Roots Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
