Found 2 products
Item#: PN36207 Mfr Part#: V9SABSAZMR01 Manufacturer: Pfeiffer Vacuum
Price upon request

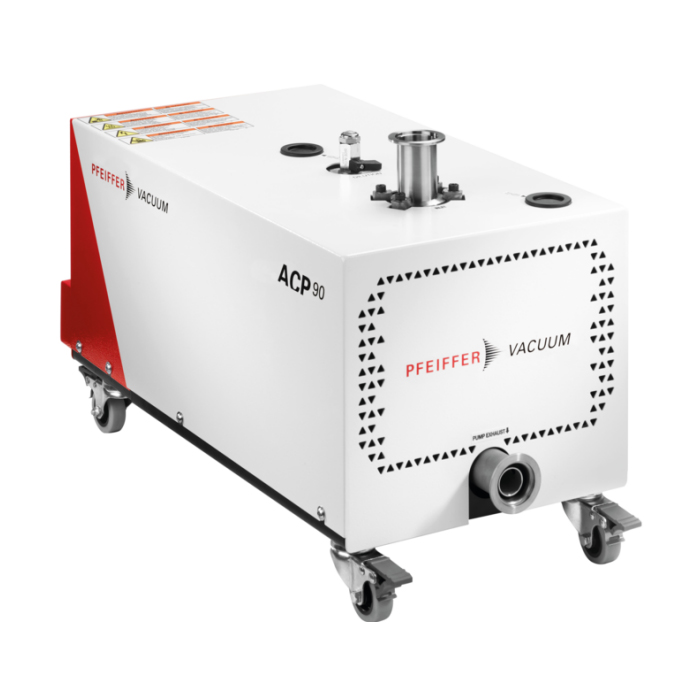

Pfeiffer Vacuum ACP 90 Compact Dry Vacuum Pump, 90 m3/h Manual Gas Ballast, Single Phase, 200-240 V (50/60 Hz), V9SABSAZMR01, ACP90



Pfeiffer Vacuum ACP 90 / V9SABSAZMR01 Compact Dry Vacuum Pump - Product Features:


  • Dry multi-stage Roots technology,SD versions, ACP pumps with a pumping speed of max. 90 m3/h. High pumping speed at high pressure.
  • ACP 90 offers No particle contamination, thanks to frictionless design: no wearing parts in the pumped gases path
  • The absence of part wear-and-tear within the pumping module allows for unsurpassed long-term stability and maximum reliability, even for the most demanding applications.
  • The frequency converter-driven motor provides constant rotational speed; as a result, stable pumping speeds and consistent ultimate pressures are achieved for universal applications involving use of the ACP 90 dry pump.
  • High-flow gas ballast ports and drainable silencers allow the ACP90 to pump high amounts of condensable vapors (with a limit of up to 2,400 g/h of pure water vapor).
  • The ACP 90 is designed for applications that require pumping of clean (dust-free) and non-corrosive gases. Standard pumps are equipped with a gas ballast device to improve the pumping of light gases and avoid vapor condensation inside the pump. Three gas ballast options are available to satisfy customer needs.
  • Pfeiffer ACP 90 is known for low maintenance cost. No annual maintenance. Maintenance of low pressure bearings can be done on-site



Pfeiffer/Adixen ACP 90 Series Dry Roots Pumps - A Brief Overview:


Pfeiffer Vacuum specializes in the manufacture of Pfeiffer ACP 90 Dry Multi-Stage Roots Pumps, ideally suited for production of clean and dry vacuum for a variety of processes and applications. Large pumps within the Pfeiffer Vacuum ACP Series provide a high pumping speed while utilizing low final pressures, allowing for high applicability and effectiveness in freeze-drying processes. Small ACP Roots pumps are specialized pumps that generate the fore vacuum required for particle acceleration and other highly concentrated processes. Still other versions of the ACP Series are used for the semiconductor and coating industries. Regardless of the application and industry, each of these processes share a common requirement - namely, the need for clean, dry, and uncontaminated air.

The Pfeiffer Vacuum ACP 90 Series of dry vacuum pumps is ideally suited to provide clean air for these applications. The series' pumping module is frictionless and does not require a lubricant for operation. There is likewise no need for sealing material between the rotor and stator, as well as in the suction chamber of the pump. This serves to prevent the back-streaming of vapors and ensures that the pump is free of unwanted particles, thus improving the reliability and stability of the pump. This in turn increases the durability of the ACP Pump, which is reflected in lower maintenance costs for the owner.

Air-cooled multi-stage roots pumps within the Pfeiffer Vacuum ACP Series have the added benefit of low maintenance coupled with constant, stable performance. They are ideally utilized for analytical applications as well as in cleaning processes featuring semiconductors and plasma.



A&J Vacuum services and repairs Pfeiffer Adixen ACP 15, ACP 28, ACP 40 and ACP 90 Compact Dry Vacuum Pumps, along with all other Pfeiffer Vacuum Multi-Stage Roots Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.




Condition: New
Item#: PN36208 Mfr Part#: V9SABSBZMR01 Manufacturer: Pfeiffer Vacuum
Price upon request

Pfeiffer Vacuum ACP 90 Compact Dry Vacuum Pump, 90 m3/h Manual Gas Ballast, Three Phase, 200-240 V (50/60 Hz), V9SABSBZMR01, ACP90



Pfeiffer Vacuum ACP 90 / V9SABSBZMR01 Compact Dry Vacuum Pump - Product Features:


  • Dry multi-stage Roots technology,SD versions, ACP pumps with a pumping speed of max. 90 m3/h. High pumping speed at high pressure.
  • ACP 90 offers No particle contamination, thanks to frictionless design: no wearing parts in the pumped gases path
  • The absence of part wear-and-tear within the pumping module allows for unsurpassed long-term stability and maximum reliability, even for the most demanding applications.
  • The frequency converter-driven motor provides constant rotational speed; as a result, stable pumping speeds and consistent ultimate pressures are achieved for universal applications involving use of the ACP 90 dry pump.
  • High-flow gas ballast ports and drainable silencers allow the ACP90 to pump high amounts of condensable vapors (with a limit of up to 2,400 g/h of pure water vapor).
  • The ACP 90 is designed for applications that require pumping of clean (dust-free) and non-corrosive gases. Standard pumps are equipped with a gas ballast device to improve the pumping of light gases and avoid vapor condensation inside the pump. Three gas ballast options are available to satisfy customer needs.
  • Pfeiffer ACP 90 is known for low maintenance cost. No annual maintenance. Maintenance of low pressure bearings can be done on-site



Pfeiffer/Adixen ACP 90 Series Dry Roots Pumps - A Brief Overview:


Pfeiffer Vacuum specializes in the manufacture of Pfeiffer ACP 90 Dry Multi-Stage Roots Pumps, ideally suited for production of clean and dry vacuum for a variety of processes and applications. Large pumps within the Pfeiffer Vacuum ACP Series provide a high pumping speed while utilizing low final pressures, allowing for high applicability and effectiveness in freeze-drying processes. Small ACP Roots pumps are specialized pumps that generate the fore vacuum required for particle acceleration and other highly concentrated processes. Still other versions of the ACP Series are used for the semiconductor and coating industries. Regardless of the application and industry, each of these processes share a common requirement - namely, the need for clean, dry, and uncontaminated air.

The Pfeiffer Vacuum ACP 90 Series of dry vacuum pumps is ideally suited to provide clean air for these applications. The series' pumping module is frictionless and does not require a lubricant for operation. There is likewise no need for sealing material between the rotor and stator, as well as in the suction chamber of the pump. This serves to prevent the back-streaming of vapors and ensures that the pump is free of unwanted particles, thus improving the reliability and stability of the pump. This in turn increases the durability of the ACP Pump, which is reflected in lower maintenance costs for the owner.

Air-cooled multi-stage roots pumps within the Pfeiffer Vacuum ACP Series have the added benefit of low maintenance coupled with constant, stable performance. They are ideally utilized for analytical applications as well as in cleaning processes featuring semiconductors and plasma.



A&J Vacuum services and repairs Pfeiffer Adixen ACP 15, ACP 28, ACP 40 and ACP 90 Compact Dry Vacuum Pumps, along with all other Pfeiffer Vacuum Multi-Stage Roots Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.




Condition: New
