- Single-Phase High Performance Rotary Vane Pump
- Standardized DN 25 Inlet & Outlet Flanges
- Pumping speed at 50 Hz: 18 m³/h | 10.59 cfm | 300 l/min
- Anti-Suckback System For Enhanced Stability During Shutdowns
Shopping Cart ( )
Pfeiffer Adixen 2021 SD Vacuum Pump, Pascal Series Rotary Vane, Single Phase, 90-132 V, 50/60 Hz, 2000043367 / 221SDMLAM
Condition:
New
In Stock
Item#:PN15988
Mfr Part#:2000043367 / 221SDMLAM
Manufacturer:Pfeiffer Vacuum
Features:
New Pfeiffer Adixen 2021 SD Vacuum Pump, Pascal Series Rotary Vane, Single Phase, 90-132 V, 50/60 Hz, 2000043367 / 221SDMLAM
New Pfeiffer Adixen 2021 SD / 221SDMLAM Pascal Rotary Vane Pump - Product Overview:

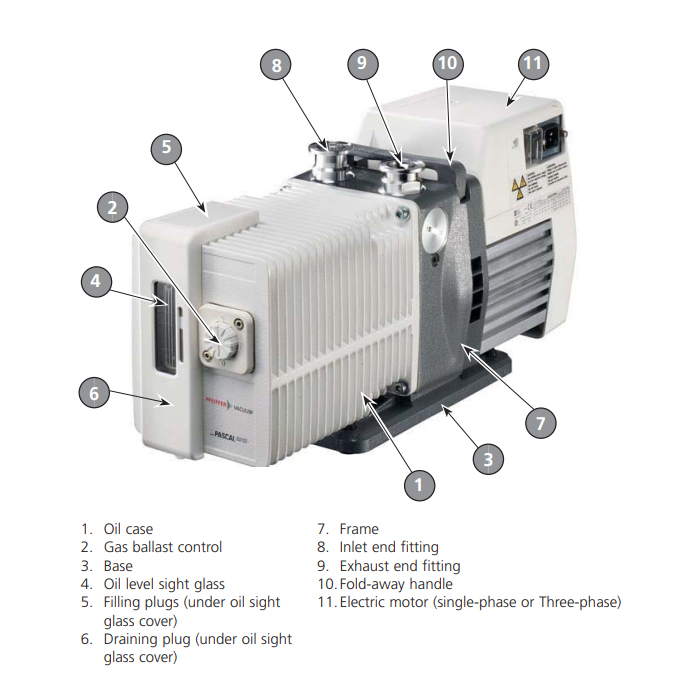

The Pfeiffer Adixen Pascal 2021 SD Rotary Vane Pump incorporates a direct drive motor, creating a highly effective, compact machine. An electrically-insulated fold-away handle is attached for facility while carrying. The anti-suck-back system ensures enhanced tightness of the pump during accidental or voluntary shutdowns. Additionally, the universal single-phase motor can be disassembled independently of the remainder of the pump, without the need to drain the oil case. With regard to the case, a vertical sight glass can be used to inspect the oil level easily while filling the tank, as well as during the operation of the pump. A gas ballast enables the pumping of condensable vapors.
The inlet and exhaust fittings on the Pfeiffer Adixen Pascal 2021 SD are standardized - both the inlet and outlet flanges utilize the DN 25 model. They are fitted vertically on the pump; however, they can be re-positioned onto the horizontal openings if required to do so by operating conditions. The main replacement parts for Adixen Pascal 2021 SD are likewise interchangeable. This enables faster assembly, disassembly, and replacement without altering the favorable performance of the pump. Various accessories can be utilized and incorporated to adapt the pump to meet the requirements of your application.
Pfeiffer 2021 SD / 221SDMLAM Rotary Vane Pumps - Technical Information:
Pfeiffer Vacuum manufactures some of the most widely-utilized varieties of advanced rotary vane used in a variety of industrial applications in the twenty-first century, including laboratory processes, chemical and process engineering, among others. These products are ideally utilized for the low-to-medium intensity vacuum range. Pfeiffer vacuum pumps are especially known for their durability and wide range of application.
A 2021 SD vacuum pump functions as a displacement pump, creating a low-pulsation suction volume flow. Rotary vane pumps such as Pascal 2021 SD include an eccentrically-supported rotor with two rotating vanes, encased and revolving within a housing. The Pfeiffer Rotary Vane Pumps offered to our clients are oil-lubricated (wet-version pumps); these operating fluids help to enhance the insulation of pump components and ensure maximum durability and efficiency of the product.
We offer both single-stage and dual-stage Pfeiffer Rotary Vane Vacuum Pumps on our website. Single-stage pumps are the preferred choice for low-intensity vacuum applications, while dual-stage pumps are the recommended choices for the medium and upper intensity range of vacuum applications.
Pfeiffer Adixen 2021 Vacuum Pump Dimensions 221SDMLAM:
L: 291 mm
A&J Vacuum services and repairs Pfeiffer Adixen 2021 SD Vacuum Pumps, along with all other Pfeiffer Vacuum Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
New Pfeiffer Adixen 2021 SD Vacuum Pump, Pascal Series Rotary Vane, Single Phase, 90-132 V, 50/60 Hz, 2000043367 / 221SDMLAM
Pfeiffer Adixen 2021 SD Vacuum Pump 221SDMLAM Product Technical Data:
| Flange (in) | DN 25 ISO-KF |
| Flange (out) | DN 25 ISO-KF |
| Pumping speed at 50 Hz | 18 m³/h | 10.59 cfm | 300 l/min |
| Pumping speed at 60 Hz | 22 m³/h | 12.95 cfm | 366.67 l/min |
| Ultimate pressure | 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar |
| Ultimate pressure with gas ballast | 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2mbar |
| Ultimate pressure without gas ballast | 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar |
| Motor version | 1-ph motor |
| Mains requirement: voltage 50 Hz | 90 – 132 V |
| Mains requirement: voltage 60 Hz | 90 – 132 V |
| Mains cable | Yes, US power cable |
| Operating fluid | Mineral oil |
| Rated power 50 Hz | 0.45 kW |
| Rated power 60 Hz | 0.55 kW |
| Protection category | IP43 |
| Weight | 28 kg | 61.73 lb |
A&J Vacuum services and repairs Pfeiffer Adixen 2021 SD Pascal Rotary Vane Pumps, along with all other Pfeiffer Vacuum Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Adixen Manual Instruction Pascal Series 2005, 2010, 2015, 2021 I, SD 5-21
Pfeiffer Adixen Operating Instructions Pascal Series 2005, 2010, 2015, 2021 I SD 5-21m3/h
AJVS_Vacuum_Pump_Turbo_Pump_Service_and_Repair.pdf
AJVS_Pfeiffer_Adixen_Pascal_2021_SD_Rotary_Vane_Pump_Service_and_Repair.pdf
