- Pumping speed at 50 Hz: 19.5 m³/h
- Pumping speed at 60 Hz: 22.5 m³/h
- Included Gas Ballast & Safety Valve
- Dual-Stage High Performance Rotary Vane Pump

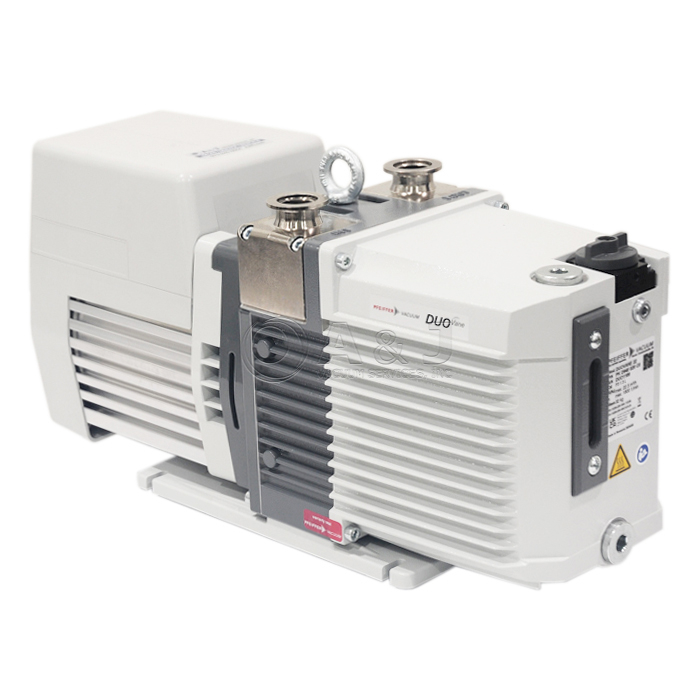

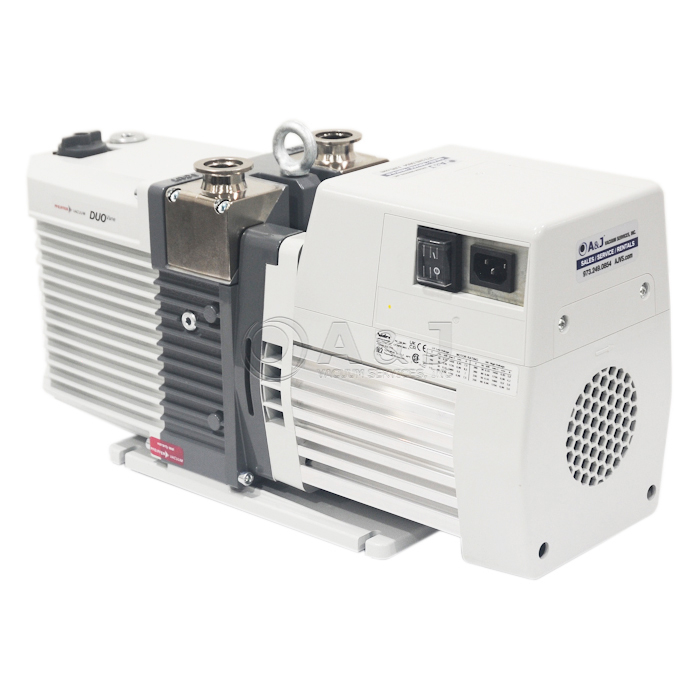

Pfeiffer Vacuum DuoVane 22 Vacuum Pump, 1-phase, 100-115 /200-230 V, 50/60 Hz, Factory set to 115VAC, PK D940 020 J0 / PKD940020J0
Pfeiffer DuoVane 22 / PKD930020J0 Overview:
Pfeiffer DuoVane 18 series rotary vane pumps are two-stage, oil-sealed rotary displacement pumps for use in a low and medium vacuum. The rotary vane pump is available in the standard version with claw coupling and asynchronous motor.
Pfeiffer Vacuum DuoVane 18 Vacuum Pump is the latest and the newest design within rotary vane pumps, with outstanding pumping performance.
The Pfeiffer Vacuum DuoVane 18 rotary vane pump is an oil-sealed rotary displacement pump. The pumping system comprises the housing, the eccentrically mounted rotor, and the centrifugal and spring-loaded radially sliding vanes, which divide the suction chamber into multiple chambers.
The volume of each stator chamber changes periodically as the rotor rotates. This causes the gas to be drawn in at the vacuum flange, and compressed in the suction chamber by the rotation of the rotor until the exhaust valve opens against the atmospheric pressure at the outlet and expels the gas. The exhaust valve is oil-sealed. When the valve opens, a small quantity of oil penetrates into the suction chamber. In addition to lubrication, this also causes the gaps between the rotor, stator, and vanes to seal.
Pfeiffer DuoVane 18 Rotary Vane Pump Key Features & Attributes:
- Dual-stage, high-performance rotary vane pump with a pumping speed of 16.9 m3/h at 60 Hz
- With single-phase motor or three phase motors
- Integrated gas ballast and safety valve
- Oil return device is included with the pump
- For all low and medium vacuum applications
- Special feature: various motor voltages for wide range of application fields
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 and 22 , along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum DuoVane 22 Vacuum Pump, 1-phase, 100-115 /200-230 V, 50/60 Hz, Factory set to 115VAC, PK D940 020 J0 / PKD940020J0
Technical Data DuoVane 22, 1-phase motor, 100-115 / 200-230 VAC, 50/60 Hz
| Flange (in) | DN 25 ISO-KF |
| Flange (out) | DN 25 ISO-KF |
| Pumping speed at 50 Hz | 19.5 m³/h |
| Pumping speed at 60 Hz | 22.5 m³/h |
| Certification | CE |
| Continuous inlet pressure, max. | 3 · 10-3 hPa | 2.25 · 10-3Torr | 3 · 10-3 mbar |
| Cooling method | Air (Forced convection) |
| Exhaust pressure, max. | 1,500 hPa | 1,125 Torr | 1,500 mbar |
| Exhaust pressure, min. | Atmospheric pressure |
| Final pressure | 3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar |
| Final pressure with gas ballast | 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2 mbar |
| Leakage rate safety valve | 1 · 10-5 Pa m³/s | 7.5 · 10-5 Torr l/s | 1 · 10-4 mbar l/s |
| Rotation speed at 50 Hz | 1500 rpm | 1,500 min-1 |
| Rotation speed at 60 Hz | 1800 rpm | 1,800 min-1 |
| Cooling method, standard | Air |
| Motor | Yes |
| Motor protection | Bimetal |
| Motor version | 1-ph motor |
| Ambient temperature | 12-40 °C | 53.6-104 °F | 285-313 K |
| Emission sound pressure level without gas ballast at 50 Hz | 54 dB(A) |
| Input voltage(s) | 100 – 115 / 200 – 230 V AC, 50 Hz | 100 – 115 / 200 – 230 V AC (±100 %), 60 Hz |
| Mains requirement: voltage (range) | ±10 % |
| Ambient temperature | 12 – 40 °C |
| Operating fluid | P3 |
| Operating fluid filling | 1.3 l |
| Leak rate safety valve | ≤ 1 · 10-5 Pa m3/s | ≤ 7.5 · 10-5 Torr l/s | ≤ 1 · 10-4mbar l/s |

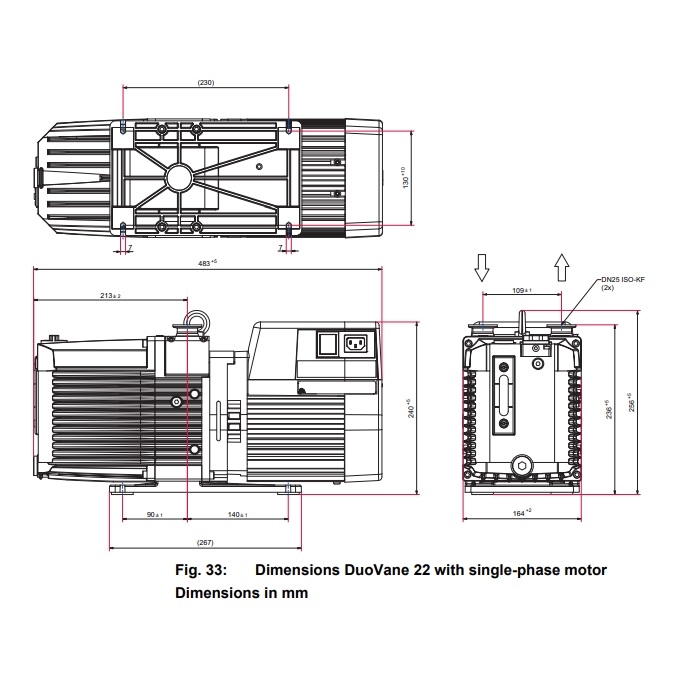

| Dimensions (L x W x H) | 428 x 164 x 256 mm |
| Rated power 50 Hz | 0.45 kW |
| Rated power 60 Hz | 0.55 kW |
| Protection category | IP40 |
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 and 22 , along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer DuoVane 6 12 18 22 Operation Instruction Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Pfeiffer Vacuum DuoVane 22 Vacuum Pump, 1-phase, 100-115 /200-230 V, 50/60 Hz, Factory set to 115VAC, PK D940 020 J0 / PKD940020J0
Pfeiffer DuoVane 22 / PKD930020J0 Overview:
Pfeiffer DuoVane 18 series rotary vane pumps are two-stage, oil-sealed rotary displacement pumps for use in a low and medium vacuum. The rotary vane pump is available in the standard version with claw coupling and asynchronous motor.
Pfeiffer Vacuum DuoVane 18 Vacuum Pump is the latest and the newest design within rotary vane pumps, with outstanding pumping performance.
The Pfeiffer Vacuum DuoVane 18 rotary vane pump is an oil-sealed rotary displacement pump. The pumping system comprises the housing, the eccentrically mounted rotor, and the centrifugal and spring-loaded radially sliding vanes, which divide the suction chamber into multiple chambers.
The volume of each stator chamber changes periodically as the rotor rotates. This causes the gas to be drawn in at the vacuum flange, and compressed in the suction chamber by the rotation of the rotor until the exhaust valve opens against the atmospheric pressure at the outlet and expels the gas. The exhaust valve is oil-sealed. When the valve opens, a small quantity of oil penetrates into the suction chamber. In addition to lubrication, this also causes the gaps between the rotor, stator, and vanes to seal.
Pfeiffer DuoVane 18 Rotary Vane Pump Key Features & Attributes:
- Dual-stage, high-performance rotary vane pump with a pumping speed of 16.9 m3/h at 60 Hz
- With single-phase motor or three phase motors
- Integrated gas ballast and safety valve
- Oil return device is included with the pump
- For all low and medium vacuum applications
- Special feature: various motor voltages for wide range of application fields
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 and 22 , along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Specifications
Pfeiffer Vacuum DuoVane 22 Vacuum Pump, 1-phase, 100-115 /200-230 V, 50/60 Hz, Factory set to 115VAC, PK D940 020 J0 / PKD940020J0
Technical Data DuoVane 22, 1-phase motor, 100-115 / 200-230 VAC, 50/60 Hz
| Flange (in) | DN 25 ISO-KF |
| Flange (out) | DN 25 ISO-KF |
| Pumping speed at 50 Hz | 19.5 m³/h |
| Pumping speed at 60 Hz | 22.5 m³/h |
| Certification | CE |
| Continuous inlet pressure, max. | 3 · 10-3 hPa | 2.25 · 10-3Torr | 3 · 10-3 mbar |
| Cooling method | Air (Forced convection) |
| Exhaust pressure, max. | 1,500 hPa | 1,125 Torr | 1,500 mbar |
| Exhaust pressure, min. | Atmospheric pressure |
| Final pressure | 3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar |
| Final pressure with gas ballast | 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2 mbar |
| Leakage rate safety valve | 1 · 10-5 Pa m³/s | 7.5 · 10-5 Torr l/s | 1 · 10-4 mbar l/s |
| Rotation speed at 50 Hz | 1500 rpm | 1,500 min-1 |
| Rotation speed at 60 Hz | 1800 rpm | 1,800 min-1 |
| Cooling method, standard | Air |
| Motor | Yes |
| Motor protection | Bimetal |
| Motor version | 1-ph motor |
| Ambient temperature | 12-40 °C | 53.6-104 °F | 285-313 K |
| Emission sound pressure level without gas ballast at 50 Hz | 54 dB(A) |
| Input voltage(s) | 100 – 115 / 200 – 230 V AC, 50 Hz | 100 – 115 / 200 – 230 V AC (±100 %), 60 Hz |
| Mains requirement: voltage (range) | ±10 % |
| Ambient temperature | 12 – 40 °C |
| Operating fluid | P3 |
| Operating fluid filling | 1.3 l |
| Leak rate safety valve | ≤ 1 · 10-5 Pa m3/s | ≤ 7.5 · 10-5 Torr l/s | ≤ 1 · 10-4mbar l/s |
| Dimensions (L x W x H) | 428 x 164 x 256 mm |
| Rated power 50 Hz | 0.45 kW |
| Rated power 60 Hz | 0.55 kW |
| Protection category | IP40 |
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 and 22 , along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
