- Frictionless ACP Dry Pump Featuring a Pumping Speed of 4.4 l/s
- Backing Pump Capacity of 25 Cubic Meters/Hour
- Includes English Language Voice Synthesizer
- Remote Control Featuring Units in mbar I/s
Shopping Cart ( )

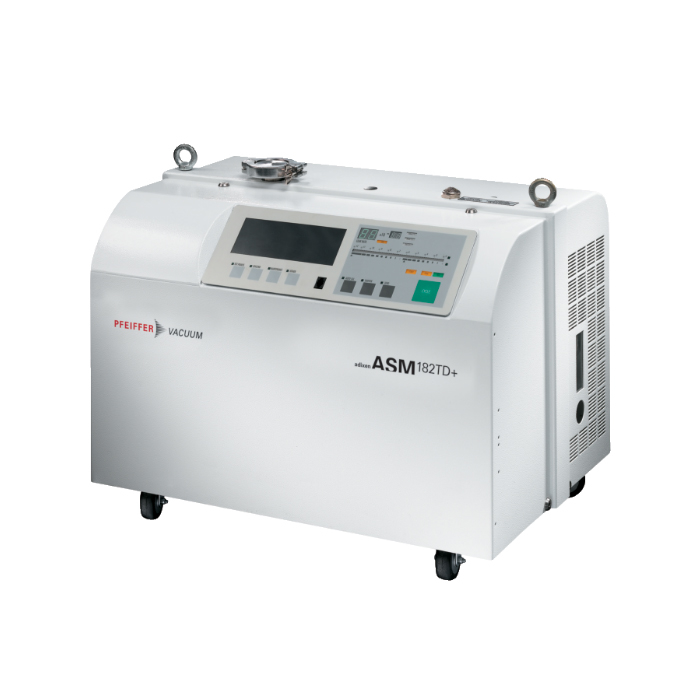

Pfeiffer Adixen ASM 182 TD+ Standard Helium Leak Detector, 4.4 l/s Pumping Speed, 110/130 V, US Power Cable, D10RSS0PB710
Condition:
Discontinued
Item#:PN17391
Mfr Part#:D10RSS0PB710
Manufacturer:Pfeiffer Vacuum
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Pfeiffer Adixen ASM 182 TD+ Standard Helium Leak Detector, 4.4 l/s Pumping Speed, 110/130 V, US Power Cable, D10RSS0PB710
Pfeiffer ASM 182 TD+ Features:
- Frictionless ACP Dry Pump with 25 m^3/h Backing Capacity
- 4.4 l/s Helium Pumping Speed
- 110/130 V
- US Power Cable (15 A)
- English Language Voice Synthesizer
- Remote Control Featuring Units in mbar l/s
ASM 182 TD+ / D10RSS0PB710 Overview:
The Pfeiffer Adixen ASM 182/192 series includes the latest evolutions of Adixen leak detectors, of which thousands are utilized in successful daily operation throughout the world in various applications and industries, including the automotive, chemical and mechanical, and electrical, electronics and packaging industries. A standout product of this series is the Adixen ASM 182 TD+ helium leak detector, utilized extensively in quality control purposes and maintenance of semiconductor processing systems, as well as quality control of vacuum components. Additionally, it is utilized as a blister-testing appliance within the pharmaceutical industry. This brand of Pfeiffer Adixen leak detectors offers several unique features, among them high sensitivity [5 x 10^(-12) mbar l/s], in addition to rapid response time while activated in spraying mode.
The Adixen ASM 182 TD+ leak detector is extremely flexible and user-friendly, with an emphasis on operational durability and ease-of-access. Automatic operation is provided throughout a vast range of processes, including atmospheric sniffer testing and refinement of extended gas lines and tubing. The ASM 182 TD+ mechanism likewise features a range of distinct operating modes, including gross leak mode and ultra-sensitive vacuum fine leak mode. Readily available basic functions, combined digital and analog display, and a range of advanced functions are also included for user convenience.
A&J Vacuum offers full service and repair of Pfeiffer ASM 182 TD+ Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer Vacuum turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Adixen ASM 182 TD+ Standard Helium Leak Detector, 4.4 l/s Pumping Speed, 110/130 V, US Power Cable, D10RSS0PB710
Pfeiffer ASM 182 TD+ Technical Data:
| Backing Pump | Oil-Free Backing Pump |
| Backing Pump Capacity | 25 m³/h | 14.71 cfm | 416.67 l/min |
| Detectable Gases | 4He |
| Dimensions (L x W x H) | 601 x 487 x 456 mm | 23.66 x 19.17 x 17.95 inch |
| Flange Model (Inlet) | DN 40 ISO-KF |
| I/O interfaces | Digital inputs (Start, Vent, Calibration…); Digital outputs (Test modes, cycle in progress, helium signal above reject set point…); Analog outputs (Helium signal log, Inlet pressure) |
| Language | English |
| Mains Cable | Yes, US power cable |
| Minimum Detectable Leak Rate for Helium (Sniffing Leak Detection) | 1 * 10^[-8] Pa m3/s | 7.5 * 10^[-8] Torr l/s | 1 * 10^[-7] mbar l/s |
| Minimum Detectable Leak Rate for Helium (Vacuum Leak Detection) | 5 * 10^[-13] Pa m³/s |
| Noise Level | 65 dB(A) |
| Power Consumption Max. | 1500 W |
| Pumping Speed for He | 4.4 l/s |
| Sound Pressure Level | 65 dB(A) |
| Start-Up Time (20°C) With Calibration | < 5.5 min |
| Start-Up Time (20°C) Without Calibration | < 4 min |
| Supply | 110 – 130 V, 50/60 Hz |
| Test Method | Vacuum and Sniffing Leak Detection |
| Type | High Performance - Compact |
| User Interface | Basic User Interface |
| Weight | 88 kg | 194 lb |
A&J Vacuum offers full service and repair of Pfeiffer ASM 182 TD+ Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer Vacuum turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
