- Pumping Speed at 50 Hz: 117.72 cfm
- Pumping Speed at 60 Hz: 145.38 cfm
- Input Voltages: 400 VAC
- Ultimate Pressure: < 3 · 10-4 mbar
Shopping Cart ( )

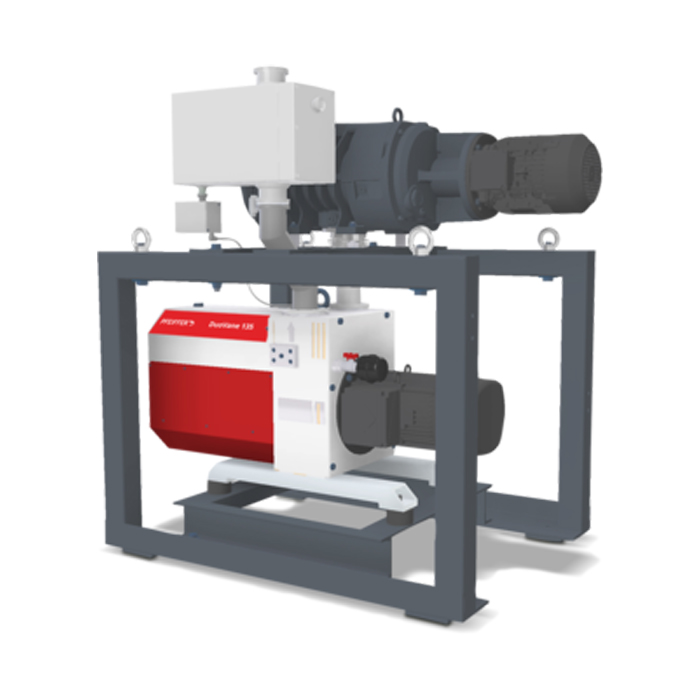

Pfeiffer Combi WVD 220 with DuoVane 36 Two-Stage Rotary Vane Pump and PANDA WV 0250 Booster Pump, PP S22 110 / PPS22110
Condition:
New
Item#:PN57607
Mfr Part#:PP S22 110 / PPS22110
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer Combi WVD 220 with DuoVane 36 Two-Stage Rotary Vane Pump and PANDA WV 0250 Booster Pump, PP S22 110 / PPS22110
Pfeiffer Combi WVD 220 Features:
- Roots pump PANDA WV 0250, operating fluid VSC100
- DuoVane 36 in standard version oil mist filter OME MR with oil return, operating fluid P3
- Built on common base frame
- Pumping speed at 1 hPa: 247 m3/h
- Pumps with other voltages on request
Combi WVD 220 / PPS22110 Overview:
Roots pumping stations serve as the workhorses among backing pumps, delivering high pumping speeds—particularly in the transitional range between rough and fine vacuum, spanning from atmospheric pressure down to approximately 10⁻³ hPa. The CombiLine series features a variety of pumping technologies, all incorporating at least one Roots pump. When needed, these systems can be equipped with a magnetic coupling, making them hermetically sealed. They are low-maintenance and suitable for applications involving explosive gases or operation in potentially explosive atmospheres (ATEX compliant).
CombiLine pumping stations are two-stage systems, consisting of a Roots pump combined with either a single-stage or two-stage rotary vane pump, or a dry pump as the backing pump. These stations are designed to evacuate vacuum chambers down to pressures within the medium vacuum range.
Combi WVD220 Scope of Delivery:
- Pumping station components mounted on frame ready for connection
- Roots pump with motor in standard version or with magnetic coupling
- Backing pump with motor
- Operating fluid and lubricant P3 / D1
- Optional accessories
- Operating manuals for station and individual components
- Wiring diagram for pumping stations with control cabinet
Combi WVD220 Applications:
- Drying and degassing
- Vacuum packaging
- Metallurgy
- Vacuum drying
- Leak detection systems
A&J Vacuum services and repairs Pfeiffer CombiLine pumping stations along with all other Pfeiffer pumping stations available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Combi WVD 220 with DuoVane 36 Two-Stage Rotary Vane Pump and PANDA WV 0250 Booster Pump, PP S22 110 / PPS22110
Pfeiffer Combi WVD 220 Technical Data:
| Backing pump | DuoVane 36 |
| Connection flange | DN 100 ISO-F / DN 40 ISO-KF |
| Connection flange (in) | DN 63 ISO-F |
| Connection flange (out) | DN 40 ISO-KF |
| Emission sound pressure level (EN ISO 2151) | 1 hPa: ≤75 dB(A) |
| Input voltage(s) | 400 V AC, 50 Hz | 460 V AC (±10 %), 60 Hz |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Motor type | 3-phase motor |
| Power consumption max. | 1.15 kW |
| Pumping principle | Oil-lubricated |

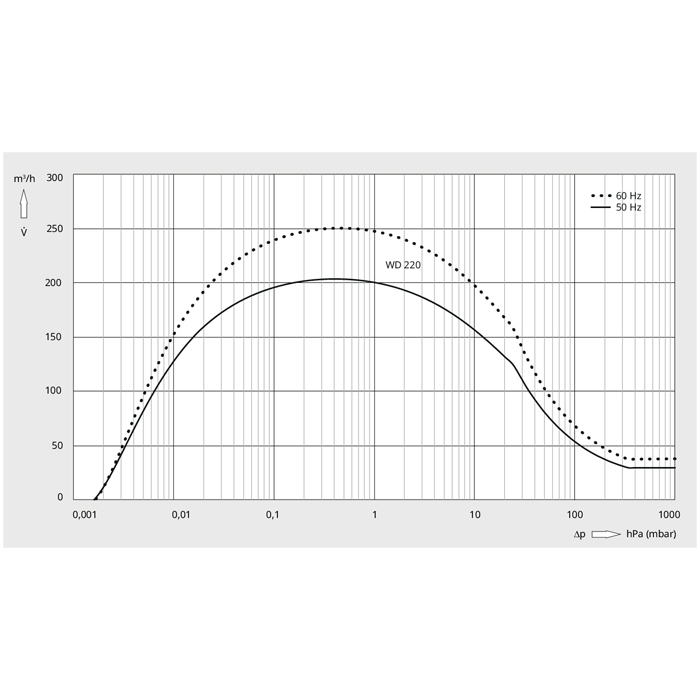

| Pumping speed at 1 hPa, 50 Hz | 200 m³/h | 117.72 cfm | 3,333.34 l/min |
| Pumping speed at 1 hPa, 60 Hz | 247 m³/h | 145.38 cfm | 4,116.67 l/min |
| Roots pump | PANDA WV 0250 |
| Type | Roots pumping station |
| Typical ultimate pressure with gas ballast | < 5 · 10-4 hPa | < 3.75 · 10-4 Torr | < 5 · 10-4 mbar |
| Ultimate pressure | < 1.5 · 10-3 hPa | < 1.125 · 10-3 Torr | < 1.5 · 10-3 mbar |
| Version | Process version |
| Weight | 218 kg | 480.61 lb |
