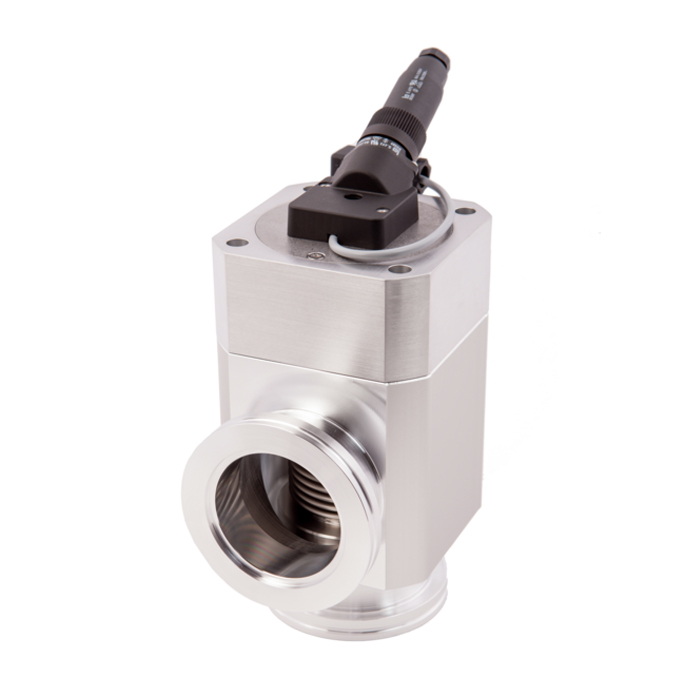

Pfeiffer EVB 063 PA, Angle Valve, Electro-pneumatic, SG/SV, 24 VDC, Aluminum, 310VEP063-02
Pfeiffer EVB 063 PA Features:
- Pressure max. (absolute): 1500 mbar
- Bellows-sealed
- With visual position indicator
- Normally closed (n. c.)
- Service life of 3 million operating cycles
Pfeiffer EVB 063 PA / 310VEP063-02 Overview:
The ESVP/CSVP pneumatic angle valves are bellows-sealed valves actuated pneumatically, specifically engineered for high vacuum and ultra-high vacuum applications.
Pfeiffer EVB063PA Scope of Delivery:
- Angle valve
- Operation instructions
Pfeiffer EVB063PA Applications:
- All vacuum applications
- Used in applications to isolate gas flow through the forelines of the vacuum system
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 and 95, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer EVB 063 PA, Angle Valve, Electro-pneumatic, SG/SV, 24 VDC, Aluminum, 310VEP063-02

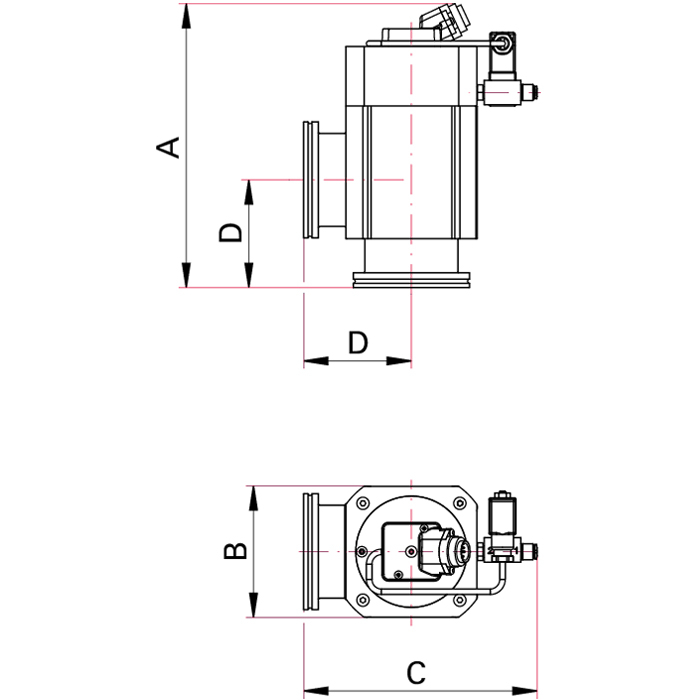

Pfeiffer EVB 063 PA Technical Data:
- Actuator: Electro-pneumatic
- Bakeout temperature - actuator, pilot valve: 50 °C | 122 °F | 323.15 K
- Bakeout temperature - housing: 150 °C | 302 °F | 423.15 K
- Closing/opening time: 300 ms/300 ms
- Compressed air (overpressure): 4000 – 8000 hPa | 3,000 – 6,000 Torr | 4,000 – 8,000 mbar
- Conductance value with molecular flow: 160 l/s
- Connection flange: DN 63 ISO-K
- Differential pressure in closing direction: 1500 hPa | 1,125 Torr | 1,500 mbar
- Differential pressure in opening direction: 1200 hPa | 900 Torr | 1,200 mbar
- Feedthrough: Bellows, Stainless steel
- Housing: Aluminum
- Input voltage(s): 24 V DC
- Operating pressure min.: 1 · 10-8 hPa | 7.5 · 10-9 Torr | 1 · 10-8 mbar
- Position indicator: Microswitch included
- Position indicator - Load capacity: ≤ 50 V AC / DC | 5 – 100 mA
- Pressure max. (absolute): 1500 hPa | 1,125 Torr | 1,500 mbar
- Seal: FKM
- Service life: 3000000 cycles
- Tightness: 1 · 10-10 Pa m³/s | 7.5 · 10-10 Torr l/s | 1 · 10-9 mbar l/s
- Type: Angle valve
- Weight approx.: 3.9 kg | 8.6 lb
