- Standardized DN 16 Inlet & Outlet Flanges
- Pumping Speed at 50 Hz: 1.25 m³/h | 0.74 cfm | 20.83 l/min
- Rotation Speed at 50 Hz: 1,500 rpm | 1,500 min-1
- Ambient Temperature: 12-40 °C | 53.6-104 °F | 285-313 K
Shopping Cart ( )

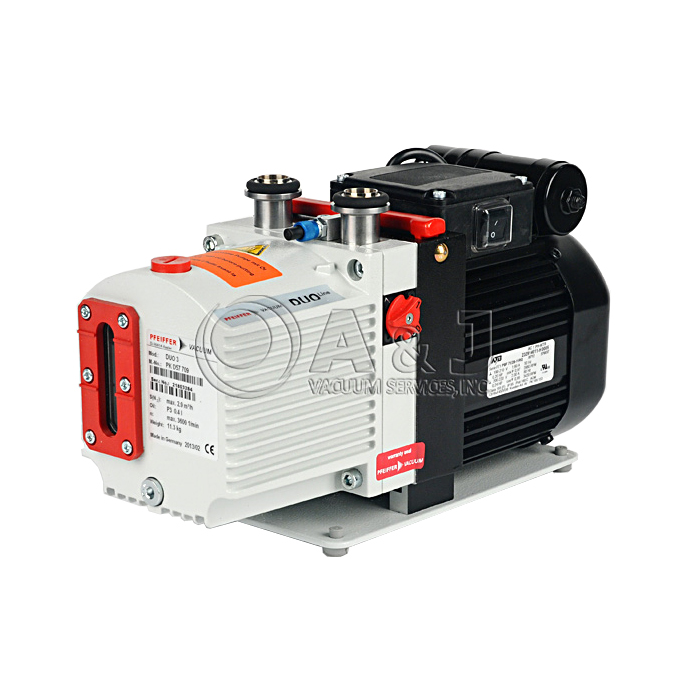

Pfeiffer DUO 1.6 Rotary Vane Pump, Single Phase, 220-240 V, 50/60 Hz, PK D56 712 C / PKD56712C, DUO1.6
Condition:
Discontinued
Item#:PN14963
Mfr Part#:2000022017 / PK D56 712 C / PKD56712C
Manufacturer:Pfeiffer Vacuum
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Pfeiffer Vacuum DUO1.6 Vacuum Pump, Rotary Vane Single Phase, 220-240 V, 50/60 Hz, PKD56712 / PK D56 712 C, Pfeiffer DUO16
Power cable is not included. Please view the accessories tab for compatible cables.
Pfeiffer DUO 1.6 Rotary Vane Pump - Product Overview:
The Pfeiffer DUO 1.6 Vacuum Pump is a direct replacement for the now-obsolete Pfeiffer DUO 1.5 Vacuum Pump. DUO 1.6 vacuum pumps offered on our website series are oil-sealed, two-stage Rotary Vane Vacuum Pumps.
Our Pfeiffer DUO 1.6 vacuum pumps are equipped with a high vacuum safety valve, which, when the pump is at a standstill, closes the vacuum chamber to a tight degree while simultaneously allowing for ventillation of the pump.
Pfeiffer Vacuum DUO 1.6 Key Features & Attributes:
- Dual Stage, High-Performance Rotary Vane Pump
- Integrated Gas Ballast and Safety Valve
- Optional with Magnetic Coupling
- Included Special Feature: Various Motor Voltages for
available Within Product for Worldwide Employment - Other Motor Voltages Available on Request
Pfeiffer Rotary Vane Pumps - Technical Information:
Pfeiffer Vacuum manufactures some of the most widely-utilized varieties of advanced rotary vane used in a variety of industrial applications in the twenty-first century, including laboratory processes, chemical and process engineering, among others. These products are ideally utilized for the low-to-medium intensity vacuum range. Pfeiffer vacuum pumps are especially known for their durability and wide range of application.
A rotary vane pump functions as a displacement pump, creating a low-pulsation suction volume flow. Rotary vane pumps include an eccentrically-supported rotor with two rotating vanes, encased and revolving within a housing. The Pfeiffer Rotary Vane Pumps offered to our clients are oil-lubricated (wet-version pumps); these operating fluids help to enhance the insulation of pump components and ensure maximum durability and efficiency of the product.
We offer both single-stage and dual-stage Pfeiffer Rotary Vane Vacuum Pumps on our website. Single-stage pumps are the preferred choice for low-intensity vacuum applications, while dual-stage pumps are the recommended choices for the medium and upper intensity range of vacuum applications.
Product Dimensions:
A&J Vacuum services and repairs Pfeiffer DUO 1.6, DUO 16, DUO 3, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Technical Data DUO1.6, 1-phase motor, 220-240 V, 50/60 Hz
| Flange (in) | DN 16 ISO-KF |
| Flange (out) | DN 16 ISO-KF |
| Pumping speed at 50 Hz | 1.25 m³/h | 0.74 cfm | 20.83 l/min |
| Pumping speed at 60 Hz | 1.5 m³/h | 0.88 cfm | 25 l/min |
| Ultimate pressure with gas ballast | 3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar |
| Ultimate pressure without gas ballast | 3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar |
| Exhaust pressure, min. | Atmospheric pressure |
| Exhaust pressure, max. | 1,500 hPa | 1,125 Torr | 1,500 mbar |
| Rotation speed at 50 Hz | 1,500 rpm | 1,500 min-1 |
| Rotation speed at 60 Hz | 1,800 rpm | 1,800 min-1 |
| Cooling method, standard | Air |
| Motor version | 1-ph motor |
| Ambient temperature | 12-40 °C | 53.6-104 °F | 285-313 K |
| Emission sound pressure level without gas ballast at 50 Hz | 48 dB(A) |
| Switch | Yes |
| Mains requirement: voltage (range) | ± 10 % |
| Mains requirement: voltage 50 Hz | 230 – 240 V |
| Mains requirement: voltage 60 Hz | 230 – 240 V |
| Recommended mains fuse capacity | 2.5 A |
| Mains cable | No |
| Operating fluid | P3 |
| Operating fluid filling | 0.4 l |
| Leak rate safety valve | 1 · 10-5 Pa m3/s | 7.5 · 10-5 Torr l/s | 1 · 10-4 mbar l/s |
| Rated power 50 Hz | 0.075 kW |
| Rated power 60 Hz | 0.09 kW |
| Protection category | IP40 |
| Weight | 9.6 kg | 21.16 lb |
A&J Vacuum services and repairs Pfeiffer DUO 1.6, DUO 16, DUO 3, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
