Pfeiffer DuoVane 1.6 Vacuum Pump, 1-phase, 115 - 230 V, 50/60Hz, PK D56 711 D / PKD56711D
Power Cable not Included !

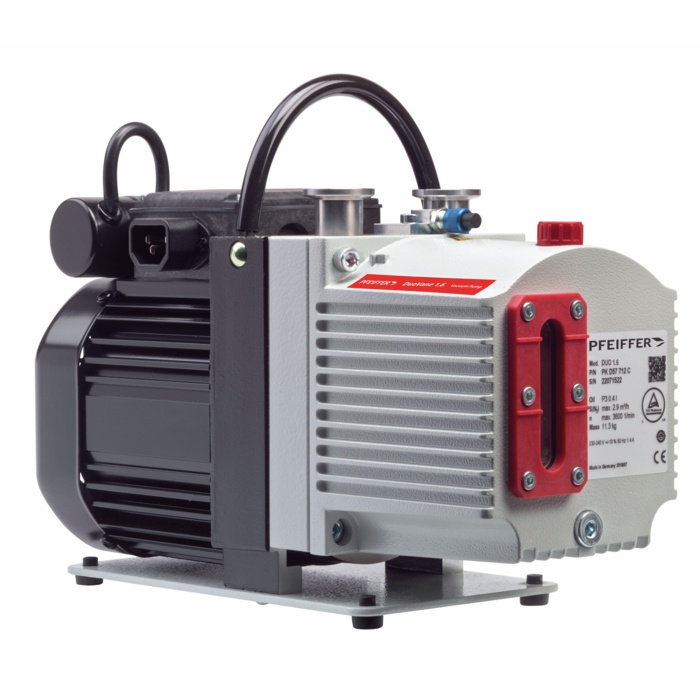

Pfeiffer DuoVane 1.6 Features:
- Dual-stage, high-performance rotary vane pump with a pumping speeds of 1.25 m3/h at 50 Hz / 1.50 m3/h at 60 Hz
- With single-phase motor with C14 connector plug inside terminal box
- Integrated gas ballast and safety valve
- Oil return device is included with the pump
- For all low and medium vacuum applications
- Special feature: various motor voltages for wide range of application fields
Pfeiffer DuoVane1.6 / PK D56 711 D Overview:
Pfeiffer DuoVane series rotary vane pumps are two-stage, oil-sealed rotary displacement pumps for use in a low and medium vacuum. The rotary vane pump is available in the standard version with claw coupling and asynchronous motor.
Pfeiffer Vacuum DuoVane Line is the latest and the newest design within rotary vane pumps, with outstanding pumping performance.
The Pfeiffer Vacuum DuoVane 1.6 rotary vane pump is an oil-sealed rotary displacement pump. The pumping system comprises the housing, the eccentrically mounted rotor, and the centrifugal and spring-loaded radially sliding vanes, which divide the suction chamber into multiple chambers.
The volume of each stator chamber changes periodically as the rotor rotates. This causes the gas to be drawn in at the vacuum flange, and compressed in the suction chamber by the rotation of the rotor until the exhaust valve opens against the atmospheric pressure at the outlet and expels the gas. The exhaust valve is oil-sealed. When the valve opens, a small quantity of oil penetrates into the suction chamber. In addition to lubrication, this also causes the gaps between the rotor, stator, and vanes to seal.
Pfeiffer DuoVane1.6 Applications:
- All applications in rough and fine vacuum
- Backing pump for turbo and Roots pumps
- General laboratory applications
- Analytics
- Chemistry laboratory
- Freeze drying
- Process engineering
A&J Vacuum services and repairs Pfeiffer DuoVane 1.6 3 6 12 18 and 22, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer DuoVane 1.6 Vacuum Pump, 1-phase, 115 - 230 V, 50/60Hz, PK D56 711 D / PKD56711D
Pfeiffer DuoVane 1.6 Technical Data:
- Ambient temperature: 12 – 40 °C | 53.6 – 104 °F | 285.15 – 313.15 K
- Certification: CE, cTUVus certified according to UL / CSA 61010-1
- Connection flange (in): DN 16 ISO-KF
- Connection flange (out): DN 16 ISO-KF
- Continuous gas input temperature, max.: 40 °C | 104 °F | 313.15 K
- Cooling method: Air (Forced convection)

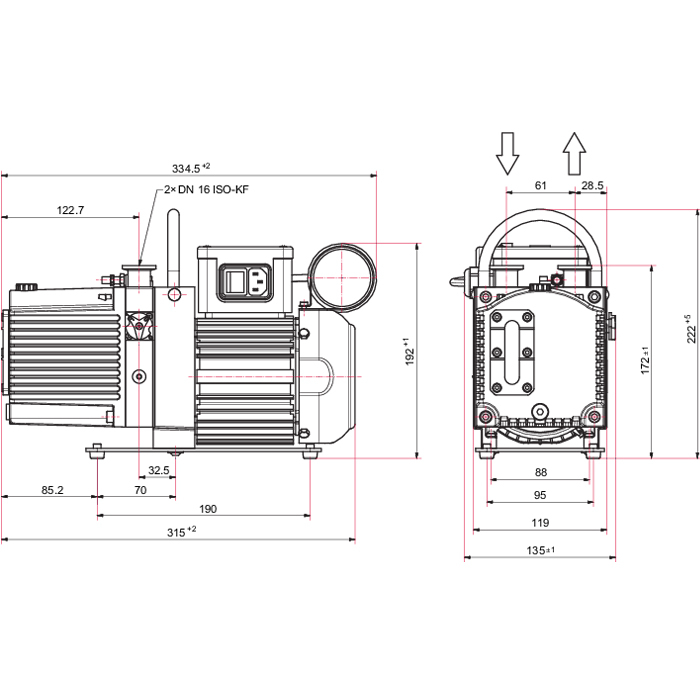

- Dimensions (L x W x H): 355 x 136 x 192 mm | 13.98 x 5.35 x 7.56 inch
- Emission sound pressure level without gas ballast at 50 Hz: 42 dB(A)
- Emission sound pressure level without gas ballast at 60 Hz: 44 dB(A)
- Exhaust pressure, max.: 1500 hPa | 1,125 Torr | 1,500 mbar
- Exhaust pressure, min.: Atmospheric pressure
- Gas ballast: Yes
- Gas ballast flow: 180 l/h
- Gas ballast pressure: 1500 hPa | 1,125 Torr | 1,500 mbar
- Input voltage(s): 115 / 230 V AC (±10 %), 50/60 Hz
- Leakage rate safety valve: 1 · 10-5 Pa m³/s | 7.5 · 10-5 Torr l/s | 1 · 10-4 mbar l/s
- Mains cable: No, C14-plug inside the terminal box
- Mains frequency compatibility: 50/60 Hz
- Motor protection: Bimetal
- Motor type: 1-phase motor
- Number of pumping stages: Two stage
- Operating fluid: P3
- Operating fluid amount: 0.4 l
- Protection degree: IP40
- Pumping principle: Oil-lubricated

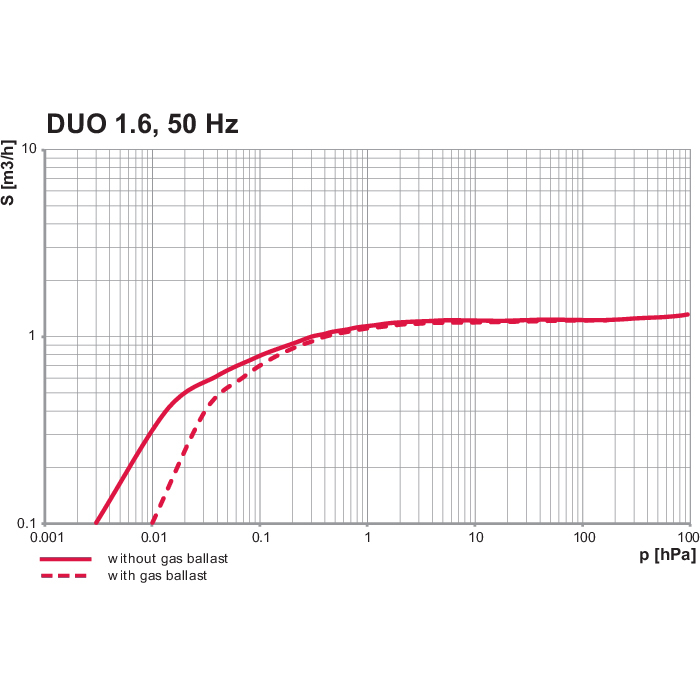

- Pumping speed at 50 Hz: 1.25 m³/h | 0.74 cfm | 20.83 l/min

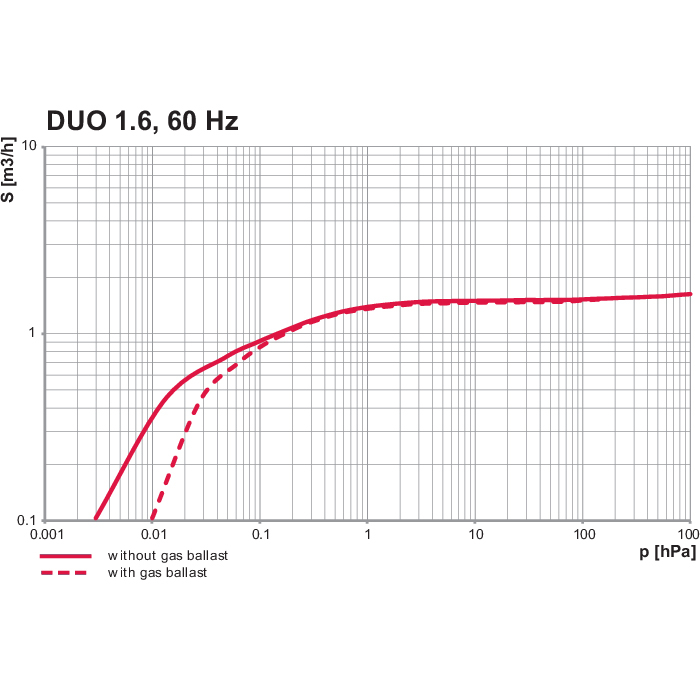

- Pumping speed at 60 Hz: 1.5 m³/h | 0.88 cfm | 25 l/min
- Rated power 50 Hz: 0.075 kW
- Rated power 60 Hz: 0.09 kW
- Recommended on-site electric fuse protection: 6 / 4 A
- Rotation speed at 50 Hz: 1500 rpm | 1,500 min-1
- Rotation speed at 60 Hz: 1800 rpm | 1,800 min-1
- Switch: Yes
- Ultimate pressure: 3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar
- Ultimate pressure with gas ballast: 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2 mbar
- Water vapor capacity 50 Hz: 15 g/h
- Water vapor capacity 60 Hz: 20 g/h
- Water vapor tolerance at 50 Hz: 15 hPa | 11.25 Torr | 15 mbar
- Water vapor tolerance at 60 Hz: 15 hPa | 11.25 Torr | 15 mbar
- Weight approx.: 10.8 kg | 23.81 lb
