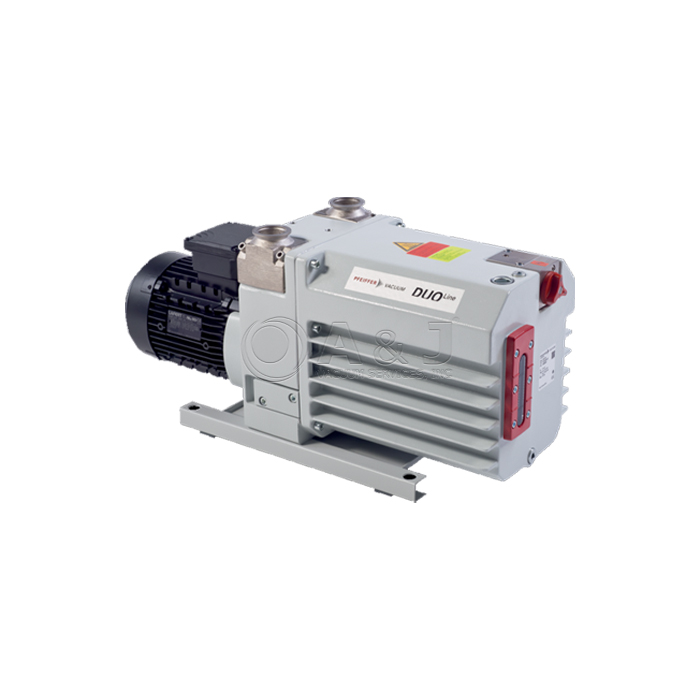

Pfeiffer DUO 65, 3-Phase Motor PTC Rotary Vane Vacuum Pump, 230/400 V, 50 Hz, 265/460 V, 60 Hz, 2000022771 / PK D46 602 E / PKD46602E
Condition:
New
Item#:PN34690
Mfr Part#:2000022771 / PK D46 602 E / PKD46602E
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer DUO 65, 3-Phase Motor PTC Rotary Vane Vacuum Pump, 230/400 V, 50 Hz, 265/460 V, 60 Hz, 2000022771 / PK D46 602 E / PKD46602E
Power cable is not included. Please view the accessories tab for compatible cables.
Pfeiffer DUO65 Rotary Vane Pump - Product Overview:
The Pfeiffer DUO 65 Rotary Vane Vacuum Pump series includes oil-sealed, two-stage Rotary Vane Vacuum Pumps. Our Pfeiffer DUO 65 rotary vane vacuum pumps arrive equipped with a high vacuum safety valve, which, when the pump is at a standstill, tightly closes the vacuum chamber while simultaneously allowing for ventilation of the pump.
Pfeiffer DUO 65, 230/400 V, 50 Hz, 265/460 V, 60 Hz Key Features & Attributes:
- Dual Stage, High Performance Rotary Vane Pump with a pumping speed of to 70 m3/h
- With 3 Phase Motor
- With temperature sensor (PTC) for optimum motor protection
- Integrated gas ballast and HV safety valve
- For all low and medium vacuum applications
- Included Special Feature: Various Motor Voltages for
Worldwide Employment & Application
Pfeiffer Rotary Vane Pumps - Technical Information:
Pfeiffer Vacuum manufactures some of the most widely-utilized varieties of advanced rotary vane used in a variety of industrial applications in the twenty-first century, including laboratory processes, chemical and process engineering, among others. These products are ideally utilized for the low-to-medium intensity vacuum range. Pfeiffer vacuum pumps are especially known for their durability and wide range of application.
A rotary vane pump functions as a displacement pump, creating a low-pulsation suction volume flow. Rotary vane pumps include an eccentrically-supported rotor with two rotating vanes, encased and revolving within a housing. The Pfeiffer Rotary Vane Pumps offered to our clients are oil-lubricated (wet-version pumps); these operating fluids help to enhance the insulation of pump components and ensure maximum durability and efficiency of the product.
We offer both single-stage and dual-stage Pfeiffer Rotary Vane Vacuum Pumps on our website. Single-stage pumps are the preferred choice for low-intensity vacuum applications, while dual-stage pumps are the recommended choices for the medium and upper intensity range of vacuum applications.
A&J Vacuum services and repairs Pfeiffer DUO 1.6, DUO 16, DUO 3, DUO 35, DUO 65, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer DUO 65, 3-Phase Motor PTC Rotary Vane Vacuum Pump, 230/400 V, 50 Hz, 265/460 V, 60 Hz, 2000022771 / PK D46 602 E / PKD46602E
Technical Data DUO 65, 3-phase motor, 230/400 V, 50 Hz, 265/460 V, 60 Hz
| Flange (in) | DN 40 ISO-KF |
| Flange (out) | DN 40 ISO-KF |
| Pumping speed at 50 Hz | 62 m³/h | 36.49 cfm | 1,033.33 l/min |
| Pumping speed at 60 Hz | 70 m³/h | 41.2 cfm | 1,166.67 l/min |
| Ultimate pressure with gas ballast | 3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar |
| Ultimate pressure without gas ballast | 2 · 10-3 hPa | 1.5 · 10-3 Torr | 2 · 10-3 mbar |
| Exhaust pressure, min. | Atmospheric pressure |
| Exhaust pressure, max. | 1,500 hPa | 1,125 Torr | 1,500 mbar |
| Rotation speed at 50 Hz | 1,500 rpm | 1,500 min-1 |
| Rotation speed at 60 Hz | 1,800 rpm | 1,800 min-1 |
| Cooling method, standard | Air |
| Motor version | Yes |
| Ambient temperature | 12-40 °C | 53.6-104 °F | 285-313 K |
| Emission sound pressure level without gas ballast at 50 Hz | ≤ 61 dB(A) |
| Switch | No |
| Mains requirement: voltage (range) | ±5 % |
| Mains requirement: voltage 50 Hz | 230 – 400 V |
| Mains requirement: voltage 60 Hz | 265 – 460 V |
| Recommended mains fuse capacity | 4 A |
| Mains cable | No |
| Operating fluid | P3 |
| Operating fluid amount | 4.2 l |
| Leak rate safety valve | ≤ 1 · 10-5 Pa m3/s | 7.5 · 10-5 Torr l/s | 1 · 10-4 mbar l/s |

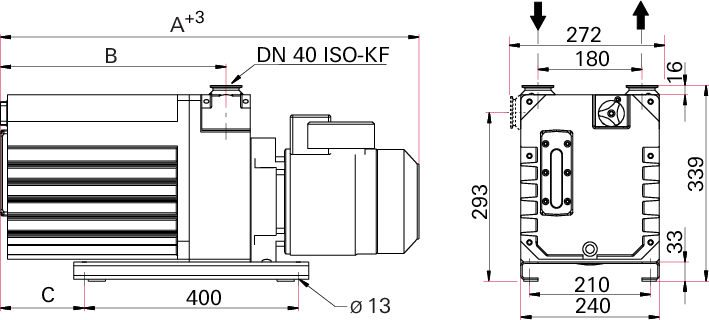

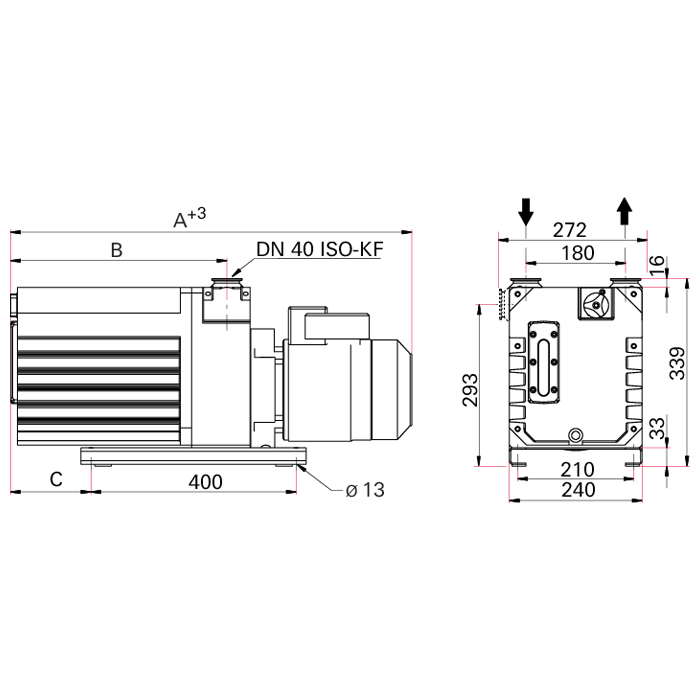

| Dimensions (L x W x H) | 728 x 240 x 340 mm | 28.66 x 9.45 x 13.39 inch |
| Rated power 50 Hz | 1.5 kW |
| Rated power 60 Hz | 1.8 kW |
| Protection category | IP55 |
| Weight With Motor | 75 kg | 165.34 lb |
A&J Vacuum services and repairs Pfeiffer DUO 1.6, DUO 16, DUO 3, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
