- Pumping Speed 50Hz: 36.49 CFM
- Pumping Speed 60Hz: 41.2 CFM
- Ultimate Pressure: 2 · 10-3 mbar
- Three Phase Motor
Shopping Cart ( )
Pfeiffer DuoVane 70 Vacuum Pump, 3-phase, PTC, 230/400 V, 50 Hz | 265/460 V, 60 Hz, PK D46 602 F / PKD46602F
Condition:
New
Item#:PN57965
Mfr Part#:PK D46 602 F / PKD46602F
Manufacturer:Pfeiffer-Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer DuoVane 70 Vacuum Pump, 3-phase, PTC, 230/400 V, 50 Hz | 265/460 V, 60 Hz, PK D46 602 F / PKD46602F
Pfeiffer DuoVane 70 Features:
- Pumping speed 50/60HZ: 36.49/41.2 cfm
- Dual-stage, high-performance rotary vane pump
- Temperature sensor (PTC) for optimum motor protection
- Integrated gas ballast and HV safety vacuum valve
- Special feature: various motor voltages for worldwide use
DuoVane 70 / PKD46602F Overview:
Pfeiffer DuoVane series rotary vane pumps are two-stage, oil-sealed rotary displacement pumps for use in coarse and medium vacuum applications. The rotary vane pump is available in the standard version with claw coupling and asynchronous motor.
Pfeiffer Vacuum DuoVane Line is the latest and the newest design within rotary vane pumps, with outstanding pumping performance.
The Pfeiffer Vacuum DuoVane 70 rotary vane pump is an oil-sealed rotary displacement pump. It includes air cooling and pressure oil lubrication. The pumping system comprises the housing, the eccentrically mounted rotor, and the centrifugal and spring-loaded radially sliding vanes, which divide the suction chamber into multiple chambers.
The volume of each stator chamber changes periodically as the rotor rotates. This causes the gas to be drawn in at the vacuum flange, and compressed in the suction chamber by the rotation of the rotor until the exhaust valve opens against the atmospheric pressure at the outlet and expels the gas. The exhaust valve is oil-sealed. When the valve opens, a small quantity of oil penetrates into the suction chamber. In addition to lubrication, this also causes the gaps between the rotor, stator, and vanes to seal.
DuoVane70 Scope of Delivery:
- Rotary vane vacuum pump with motor
- Operation fluid (other than F4, F5 and 113)
- Centering ring with cone sieve and O-ring for the connection flange
- Locking caps for both connection flanges
- Operating instructions
DuoVane70 Applications:
- All applications in rough and fine vacuum
- Backing pump for turbo and Roots pumps
- General laboratory applications
- Analytics
- Chemistry laboratory
- Freeze drying
- Metallurgy
- Process engineering
- Sterilization
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 and 70, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer DuoVane 70 Vacuum Pump, 3-phase, PTC, 230/400 V, 50 Hz | 265/460 V, 60 Hz, PK D46 602 F / PKD46602F
Pfeiffer DuoVane 70 Technical Data:
| Ambient temperature | 12 – 40 °C | 53.6 – 104 °F | 285.15 – 313.15 K |
| Connection flange (in) | DN 40 ISO-KF |
| Connection flange (out) | DN 40 ISO-KF |
| Continuous gas input temperature, max. | 40 °C | 104 °F | 313.15 K |
| Cooling method | Air (Forced convection) |

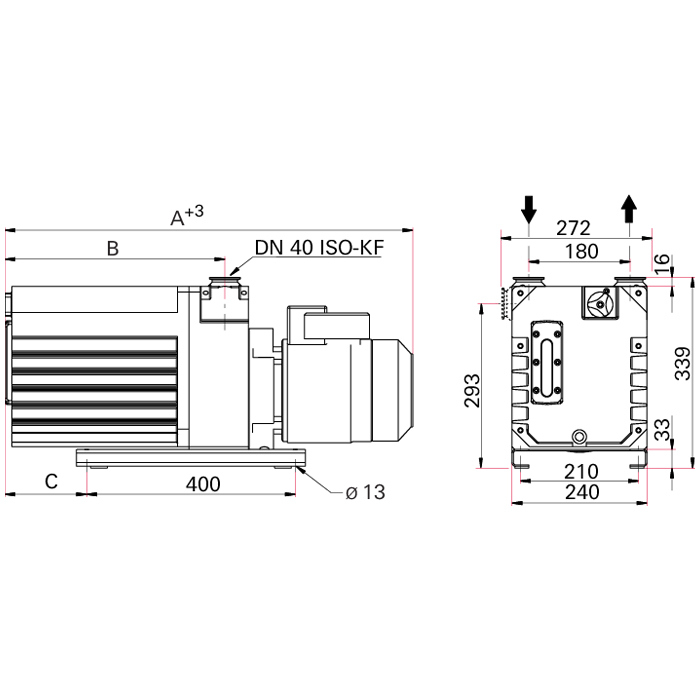

| Dimensions (L x W x H) | 728 x 240 x 340 mm | 28.66 x 9.45 x 13.39 inch |
| Emission sound pressure level without gas ballast at 50 Hz | 61 dB(A) |
| Exhaust pressure, max. | 1500 hPa | 1,125 Torr | 1,500 mbar |
| Exhaust pressure, min. | Atmospheric pressure |
| Gas ballast | Yes |
| Gas ballast flow | 1800 l/h |
| Gas ballast pressure | 1500 hPa | 1,125 Torr | 1,500 mbar |
| Input voltage(s) | 230 / 400 V AC, 50 Hz | 265 / 460 V AC (±5 %), 60 Hz |
| Leakage rate safety valve | 1 · 10-5 Pa m³/s | 7.5 · 10-5 Torr l/s | 1 · 10-4 mbar l/s |
| Mains cable | No |
| Mains frequency compatibility | 50/60 Hz |
| Motor protection | PTC |
| Motor type | 3-phase motor |
| Number of pumping stages | Two stage |
| Operating fluid | P3 |
| Operating fluid amount | 4.2 l |
| Protection degree | IP55 |
| Pumping principle | Oil-lubricated |
| Pumping speed at 50 Hz | 62 m³/h | 36.49 cfm | 1,033.34 l/min |
| Pumping speed at 60 Hz | 70 m³/h | 41.2 cfm | 1,166.67 l/min |
| Rated power 50 Hz | 1.5 kW |
| Rated power 60 Hz | 1.8 kW |
| Rotation speed at 50 Hz | 1500 rpm | 1,500 min-1 |
| Rotation speed at 60 Hz | 1800 rpm | 1,800 min-1 |
| Switch | No |
| Ultimate pressure | 2 · 10-3 hPa | 1.5 · 10-3 Torr | 2 · 10-3 mbar |
| Ultimate pressure with gas ballast | 3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar |
