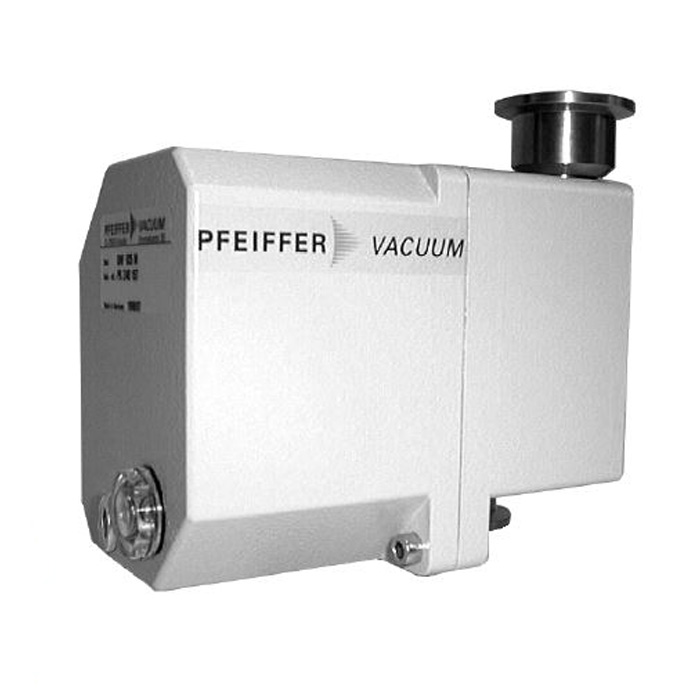

Pfeiffer Vacuum KAS 16 Condensate Separator, DN 16 ISO-KF, 2000020849 / PK Z10 003 / PKZ10003
Condition:
New
Item#:PN15638
Mfr Part#:2000020849 / PK Z10 003 / PKZ10003
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum KAS 16 Condensate Separator, DN 16 ISO-KF, 2000020849 / PK Z10 003 / PKZ10003
Pfeiffer KAS 16 Overview:
The Pfeiffer Vacuum KAS 16 protects the pump against the damaging effects of condensates, the fitting of a condensate separator in the intake line of a vacuum pump is recommended.
This keeps the lubricating efficiency of the operating fluid and ensure the attainable final pressure.
The KAS is provided with a sight glass to show the condensate level.
Condensate separators cannot be cooled and cannot therefore be used as condensers.
As a rule, condensate separators are installed in the intake line of a vacuum system or a vacuum pump.
Where certain applications are involved it is also recommended to fit a condensate separator in the exhaust line.
Pfeiffer KAS 16 Dimensions:
A: 142 mm
B: 80 mm
C: 120 mm
D: 127 mm
E: 20 mm
F: 105mm
G: 17 mm
Click Here for Pfeiffer KAS 16 Operating Instruction
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Vacuum KAS 16 Condensate Separator, DN 16 ISO-KF, 2000020849 / PK Z10 003 / PKZ10003
Pfeiffer KAS 16 Technical Data:
| Capacity | 0.2 l |
| Flange (in) | DN 16 ISO-KF |
| Flange (out) | DN 16 ISO-KF |
| For pumping speed up to | 12 m³/h | 7.06 cfm | 200 l/min |
| Leak rate | < 1 · 10-6 Pa m3/s | < 7.5 · 10-6 Torr l/s | < 1 · 10-5 mbar l/s |
| Pressure max. (absolute) | 1,500 hPa | 1,125 Torr | 1,500 mbar |
| Weight | 1.35 kg | 2.98 lb |
Click Here for Pfeiffer KAS 16 Operating Instruction
