- Conductance at 100 hPa 33 l/s
- For pumping speed up to 12 m³/h | 7.06 cfm | 200 l/min
- Flange (in) DN 16 ISO-KF
- Leak rate < 1 · 10-5 Pa m3/s | < 7.5 · 10-5 Torr l/s | < 1 · 10-4 mbar l/s
Shopping Cart ( )
Pfeiffer Vacuum SAS 16 Dust Separator w/ Polyester Filter, DN 16 ISO-KF, 2000020934 / PK Z60 506 / PKZ60506
Condition:
New
In Stock
Item#:PN15637
Mfr Part#:2000020934 / PK Z60 506 / PKZ60506
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum SAS 16 Dust Separator w/ Polyester Filter, DN 16 ISO-KF, 2000020934 / PK Z60 506 / PKZ60506
Pfeiffer SAS 16 Overview:

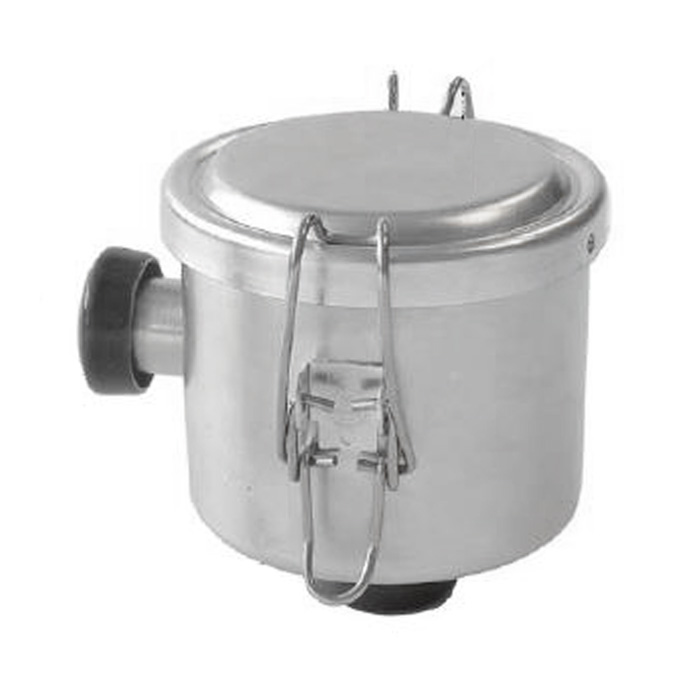

The Pfeiffer Vacuum SAS 16 Dust Separator is installed in the intake line of vacuum pumps to prevent large dust particles from entering the pump.
This increases the service life of the pump and the operating fluid.
The SAS is designed for volume flow rates in the range of 5 to 1000 m3/h depending on the type.
Condensible vapors cannot be vacuumed via the SAS.
Pfeiffer SAS 16 Dimensions:
A&J Vacuum Services offers full repair/service of Pfeiffer Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum SAS 16 Dust Separator w/ Polyester Filter, DN 16 ISO-KF, 2000020934 / PK Z60 506 / PKZ60506
Pfeiffer SAS 16 Technical Data:
| Ambient temperature | -26-104 °C | -14.8-219.2 °F | 247-377 K |
| Conductance at 100 hPa | 33 l/s |
| Conductance at 1 hPa | 16 l/s |
| Degree of separation | 99.7 % |
| Flange (in) | DN 16 ISO-KF |
| Flange (out) | DN 16 ISO-KF |
| For pumping speed up to | 12 m³/h | 7.06 cfm | 200 l/min |
| Grain size limit (separable) | 5 µm |
| Leak rate | < 1 · 10-5 Pa m3/s | < 7.5 · 10-5 Torr l/s | < 1 · 10-4 mbar l/s |
| Mounting orientation | 0° (HV flange top) |
| Operating range | 1.0 abs |
| Weight | 0.12 kg | 0.26 lb |
A&J Vacuum Services offers full repair/service of Pfeiffer Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
