Pfeiffer HiCube 80 Neo Benchtop Turbo Pumping Station, Includes HiPace 80 Neo Turbo Pump (DN 63 CF-F), MVP 030-3 Three Stage Dry Diaphragm Pump and 7" Touch Screen Controller, 2000198769 / PM 027 017 -T / PM027017-T / PM Q102 013 00
Pfeiffer HiCube 80 Neo Benchtop Features:
- The HiCube Neo is ready for immediate use thanks to its plug and-play operation
- Air-cooled and ready for operation with HiPace 80 Turbo Pump and MVP 030-3 DC Three Stage Dry Diaphragm Backing Pump
- Pfeiffer HiCube 80 Neo comes with DN 40 ISO-K Conflat inlet flange
- It is controlled intuitively via the 7“ color touch screen control panel
- Pfieffer HiCube 80 Neo voltage requirement 90-132 V AC, 50/60 Hz; 185-265 V AC, 50/60 Hz
- Reliable and robust
HiCube 80 Neo Benchtop / PM027017-T Overview:
HiCube Neo model series turbo pumping stations are ready-to-connect, fully automatic pump units. The turbo pumping station is designed as a portable desktop model, or mobile free-standing model; it consists of a turbopump and a backing pump specially matched to it.
The dashboard appears automatically when you switch on the HiCube Neo pumping station. Hicube Neo dashboard provides information about the operating status of the connected pump, the system status, the pressure (if the gauge is connected), the status of the components in operation/during shutdown, the parameter list, and the actual rotation speed.
The Pfeiffer Vacuum HiCube 80 Neo Benchtop Turbo Pumping Station is the truly portable and bench top pumping unit for many of the High Vacuum Applications. DN-63 CF-F Conflat Inlet Flange makes this system trully High Vacuum Pumping System.
The Hicube 80 Neo Station has a modern design with the latest turbo pump and electronics technology. Fully integrated High-performance Pfeiffer MVP 030-3 Three Stage Dry Diaphragm pump with a pumping speed of up to 1.8 m3/h with Optimal process adoptation and rotational speed control.

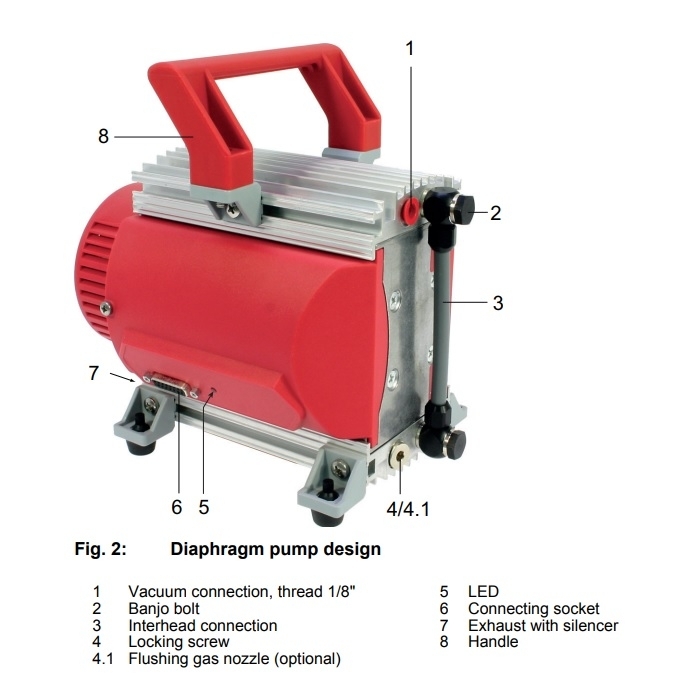

Pfeiffer MVP 030-3 provides positive displacement with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
What’s so special about the HiCube NEO vacuum solution: The combination of a turbopump from the HiPace Neo series Turbo Pump and a backing pump designed for the user’s specific application needs.
The HiCube Neo turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube Neo can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Neo Turbo Stations feature connectivity for digital pressure gauges.
All HiCube Neo turbo pumping stations are fitted with particularly energy-efficient backing pumps that have a DC drive. The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load in the
vacuum, the pumping station automatically reduces the backing pump output. This results in maximum energy savings.
HiCube80NeoBenchtop Applications:
- Gas analysis
- Calibration of measuring tubes
- Laboratory applications
- Research, Development and Scientific
- Particle accelerators
- Residual gas analysis
- Cryogenics
A&J Vacuum also repair / rebuild and service all Pfeiffer HiCube 80 Neo / Eco Pumping Stations along with all other Pfeiffer Vacuum MVP Diaphragm Pumps, Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. We also service New Leybold Turbo Pumping Stations, New Edwards turbo Pump Stations.Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer HiCube 80 Neo Benchtop Turbo Pumping Station, Includes HiPace 80 Neo Turbo Pump (DN 63 CF-F), MVP 030-3 Three Stage Dry Diaphragm Pump and 7" Touch Screen Controller, 2000198769 / PM 027 017 -T / PM027017-T / PM Q102 013 00
Pfeiffer HiPace 80 Neo Benchtop Technical Data:
| Ambient temperature | 5 – 40 °C | 41 – 104 °F | 278.15 – 313.15 K |
| Backing pump | MVP 030-3 |
| Connection flange | DN 63 CF-F / G 1/8" Silencer |
| Connection flange (in) | DN 63 CF-F |
| Connection flange (out) | G 1/8" |
| Cooling method | Air (Forced convection) |
| Emission sound pressure level (EN ISO 2151) | ≤50 dB(A) |
| Fore-vacuum safety valve | No |
| Input voltage(s) | 100 – 120 / 200 – 240 V AC (±10 %), 50/60 Hz |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Module Slot 1 | Gauge/IO |
| Motor for region | Worldwide |
| Pumping speed backing pump at 50 Hz | 1.8 m³/h | 1.06 cfm | 30 l/min |
| Pumping speed for N2 | 67 l/s |
| Rated current consumption | 120 V: 1.75 A 120 V: 1.75 A |
| Rated power at max. rotation speed | 165 W |
| Turbopump | HiPace 80 Neo |
| Type | Turbo pumping station |
| Ultimate pressure | 1 · 10-8 hPa | 7.5 · 10-9 Torr | 1 · 10-8 mbar |
| Weight | 17.5 kg | 38.58 lb |
