- For installation in any orientation
- Rugged, powerful turbopump with a pumping speed of up to 260 l/s for N2
- Ideal for the generation of an ultra high vacuum
- H=Version with extra high compression ratio
Shopping Cart ( )
Pfeiffer HiPace 300 H Turbo Pump with TC 110 Controller, DN 100 CF-F, 2000014854 / PM P05 541 C / PMP05541C / PM C01 790
Condition:
New
In Stock
Item#:PN40803
Mfr Part#:2000014854 / PM P05 541 C / PMP05541C / PM C01 790
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer HiPace 300 H Turbo Pump with TC 110 Controller, DN 100 CF-F, 2000014854 / PM P05 541 C / PMP05541C / PM C01 790
Pfeiffer HiPace 300 H Features:
- Rugged, powerful turbopump with a pumping speed of up to 260 l/s for N2
- Integrated TC 100 / PM C01 790 drive electronics
- Inlet Flange: DN 100 CF-F
- Ideal for the generation of an ultra high vacuum
- For installation in any orientation
- Flexible through the ability to employ up to 4 accessories
- Ideal for fast cycles
- Extensive accessories expand the range of applications
HiPace 300 H / PMP05541C Overview:
The Pfeiffer HiPace 300H PMP05541 DN 100 CF-F is a extremely high compression, especially for light gases. Ideal for the generation of an ultra high vacuum.
Hipace 300 H is a rugged, powerfull turbo Pump with a pumping speed of up to 260 l/sec for N2.
Pfeiffer Hipace 300H is equipped with integrated TC 110 electronic drive. Hipace 300 H Turbo Pump is designed to be installed in any orientation.
The Pfeiffer Hipace 300 Turbo Vacuum Pump's proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
The turbopump HiPace 300 forms a complete unit together with the electronic drive unit TC 100. This turbopump offers water as well as air cooling. This pump has not integrated power supply.
Complete Operating Instruction for HiPace 300 H PM P05 541 is available in PDF format below.
HiPace300H Scope of Delivery:
- Turbopump with electronic drive unit
- Protective cover for the high vacuum connection
- Protective cover for the fore-vacuum connection
- Operating instructions
HiPace300H Applications:
- Fish farming
- R&D
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 300 H Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer HiPace 300 H Turbo Pump with TC 110 Controller, DN 100 CF-F, 2000014854 / PM P05 541 C / PMP05541C / PM C01 790
Pfeiffer HiPace 300 H Technical Data:
| Bearing | Hybrid |
| Compression ratio for Ar | > 1 · 10 / 13 |
| Compression ratio for H2 | 1 · 10 / 7 |
| Compression ratio for He | > 2.5 · 10 / 9 |
| Compression ratio for N2 | > 1 · 10 / 13 |
| Cooling method, optional | Air |
| Cooling method, standard | Water |
| Cooling water flow | 50 l/h |
| Cooling water flow, max | 50 l/h |
| Cooling water flow, min | 50 l/h |
| Cooling water temperature | 15-35 °C | 59-95 °F | 288-308 K |
| Current max. | 7.5 A |
| Electronic drive unit | with TC 400 |

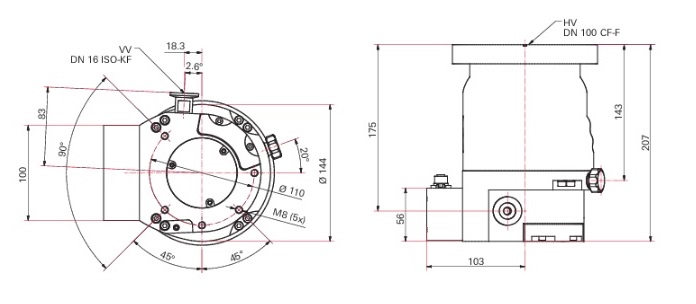

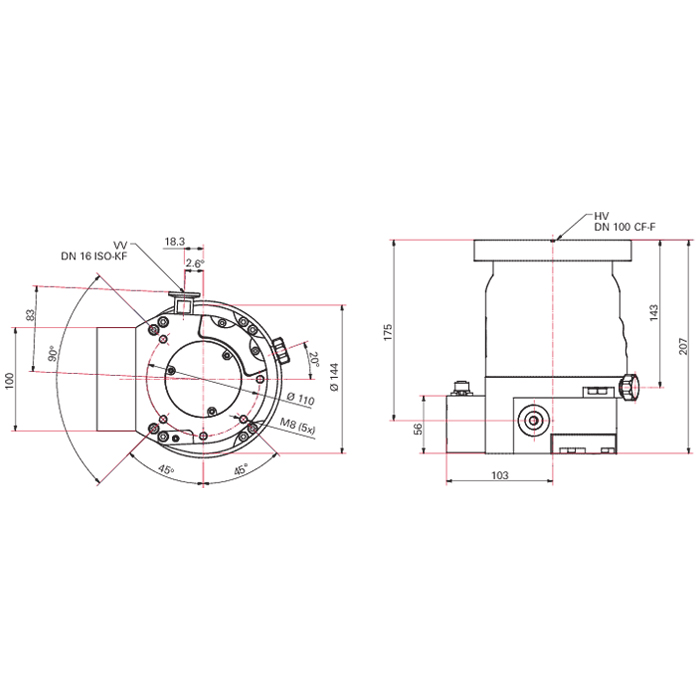

| Flange (in) | DN 100 CF-F |
| Flange (out) | DN 16 ISO-KF/G ¼" |
| Fore-vacuum max. for N2 | 30 hPa | 22.5 Torr | 30 mbar |
| Gas throughput at full rotational speed for Ar | 0.5 hPa·l/s |
| Gas throughput at full rotational speed for H2 | > 10 hPa·l/s |
| Gas throughput at full rotational speed for He | 3.5 hPa·l/s |
| Gas throughput at full rotational speed for N2 | 1.5 hPa·l/s |
| I/O interfaces | RS-485, Remote |
| Venting connection | G 1/8" |
| Mounting orientation | Any |
| Permissible magnetic field max. | 5.5 mT |
| Power consumption max. | 300 W |
| Protection category | IP54 |

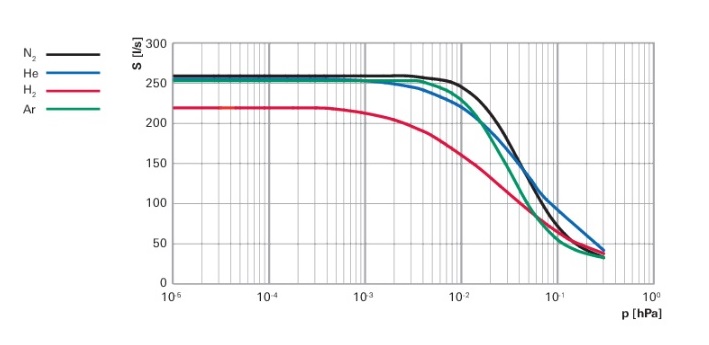

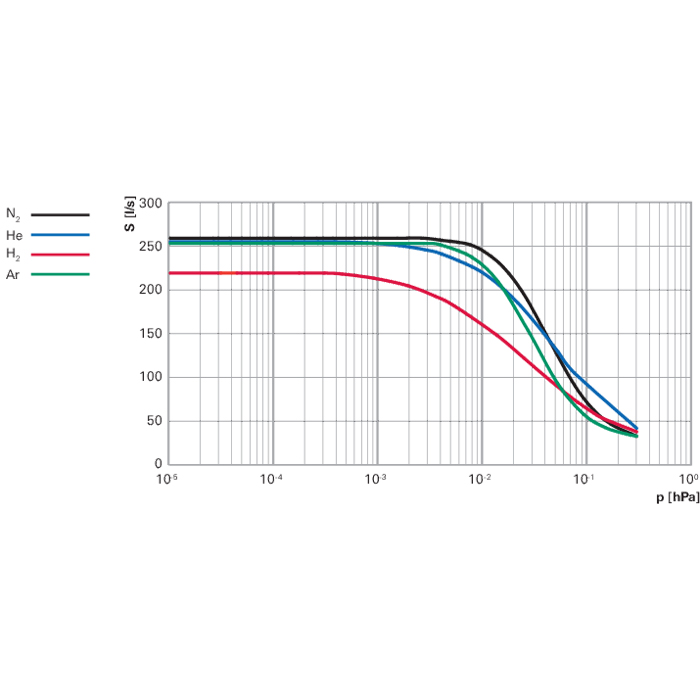

| Pumping speed for Ar | 255 l/s |
| Pumping speed for H2 | 220 l/s |
| Pumping speed for He | 255 l/s |
| Pumping speed for N2 | 260 l/s |
| Rotation speed ± 2 % | 60,000 rpm | 60,000 min-1 |
| Rotation speed variable | 35 – 100 % |
| Run-up time | 3.5 min |
| Type of electronic drive unit installation | Integrated electronic drive unit |
| Ultimate pressure | < 1 · 10-10 hPa | < 7.5 · 10-11 Torr | < 1 · 10-10 mbar |
| Venting connection | G 1/8" |
| Weight | 8.7 kg | 19.18 lb |
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 300 Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
