- For power supply, control and operation of appropriate Pfeiffer Vacuum products
- Ideally matched to HiPace 300 with TC 110
- Connection of Pfeiffer Vacuum ActiveLine gauges possible
- With integrated power supply
Shopping Cart ( )
Pfeiffer DCU 180 Display Control Including Power Supply, PM C01 821 -A / PMC01821A
Condition:
New
In Stock
Item#:PN06199
Mfr Part#:PM C01 821 -A / PMC01821A
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer DCU 180 Display Control Including Power Supply, PM C01 821 -A / PMC01821A
Pfeiffer DCU 180 Display Control Features:
- To control and monitor all parameters of the drive electronics
- Comes with With integrated power supply
- deally matched to HiPace 300 with TC 110
DCU 180 Display Control / PMC01821A Overview:

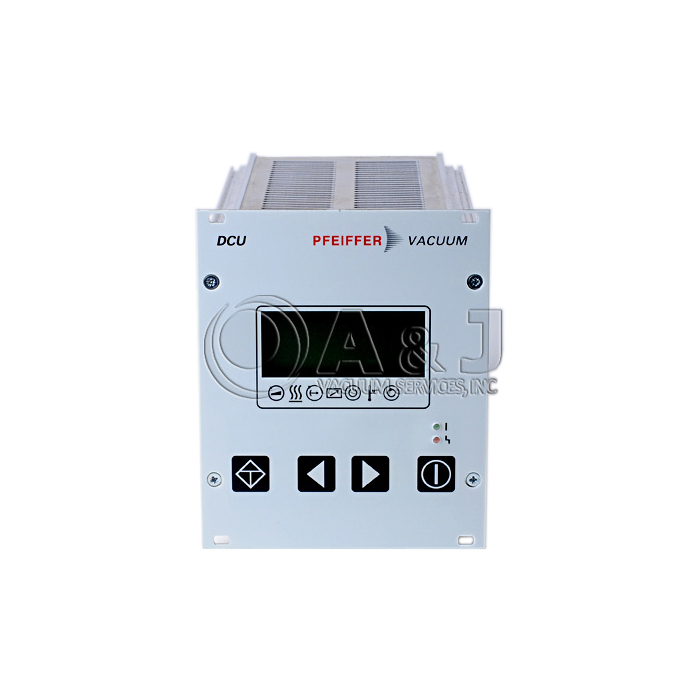

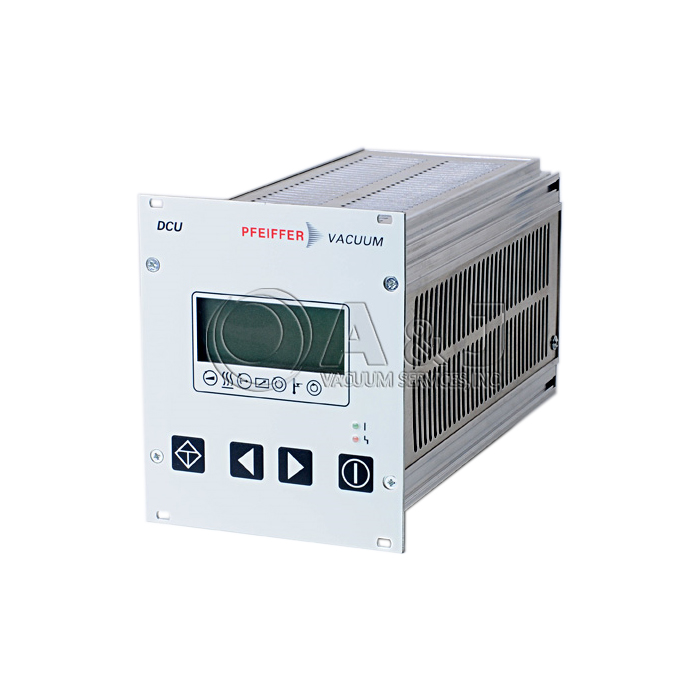

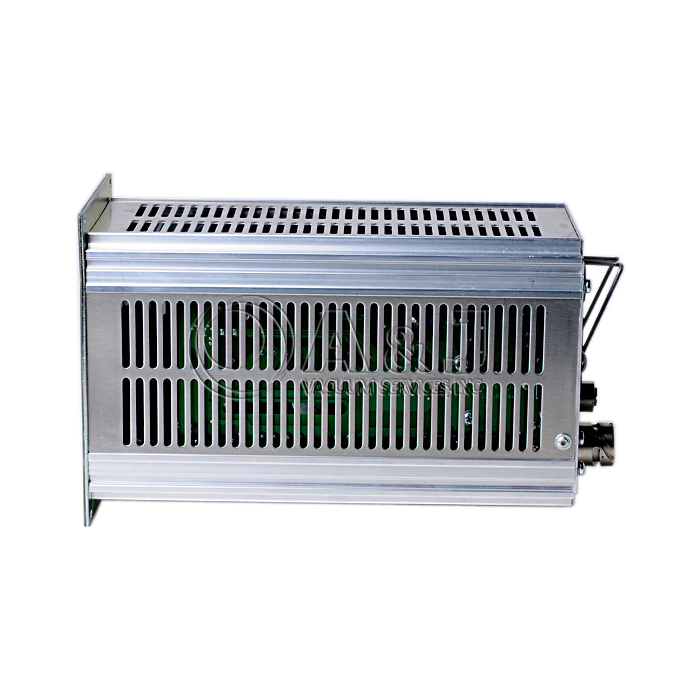

The DCU 180 / PM C011 821 is a display and control unit for Pfeiffer Vacuum vacuum pumps with integrated electronic drive unit.

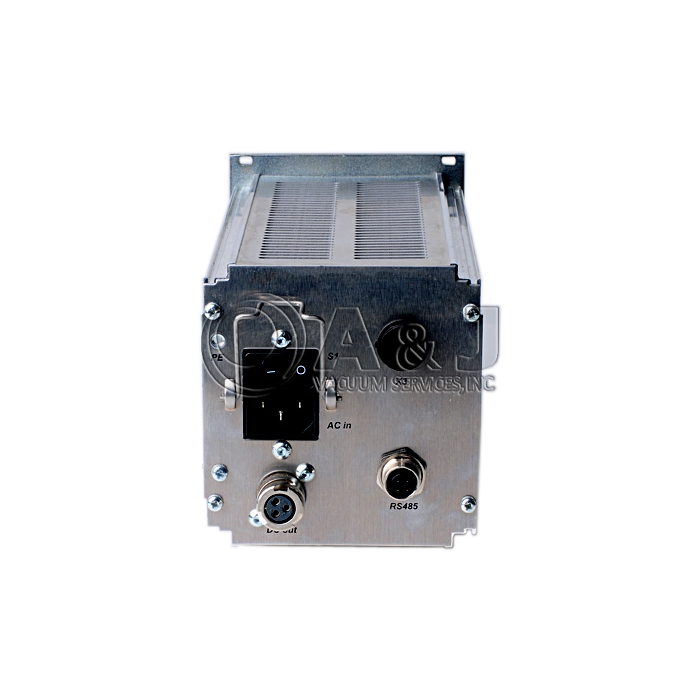

This DCU 180 displays all control parameters for the electronic drive unit. It is also possible to connect a pressure measuring vacuum gauge directly to the back of the DCU 180.
HiPace stands for a complete line of compact yet powerful turbopumps featuring pumping speeds that range from 10 – 800 liters per second. It offers a cost-effective yet flexible installation in any orientation. The proven bearing system affords unrivaled dependability. The improved rotor design makes for higher pumping speeds, higher backing pump compatibility and higher gas throughputs coupled with very good compression for light gases. The new, integrated drive electronics reduce the need for cumbersome and costly cabling.
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum DCU 180 / PM C01 821-A Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer DCU 180 Display Control Including Power Supply, PM C01 821 -A / PMC01821A
Pfeiffer DCU 180 Display Control Technical Data:
| Ambient temperature | 5-50 °C |
| Mains requirement: frequency (range) | 50/60 Hz |
| Mains requirement: power consumption | 210 VA |
| Mains requirement: voltage (range) | 115-230 (-20 - +15 %) V AC |
| OuTPU t current | 7.5 A |
| OuTPU t voltage | 24 (± 2 %) V DC |
| Protection category | IP 20 |
| Weight | 1.7 kg |
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum DCU 180 / PM C01 821-A Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum, Mains cable 115 V AC, NEMA 5-15 to C13, 3m, 2000028157 / P 4564 309 ZE / P4564309ZE
Item#:PN00834
Mfr Part#:2000028157 / P 4564 309 ZE / P4564309ZE
Condition: In Stock
New
In Stock
$45.00

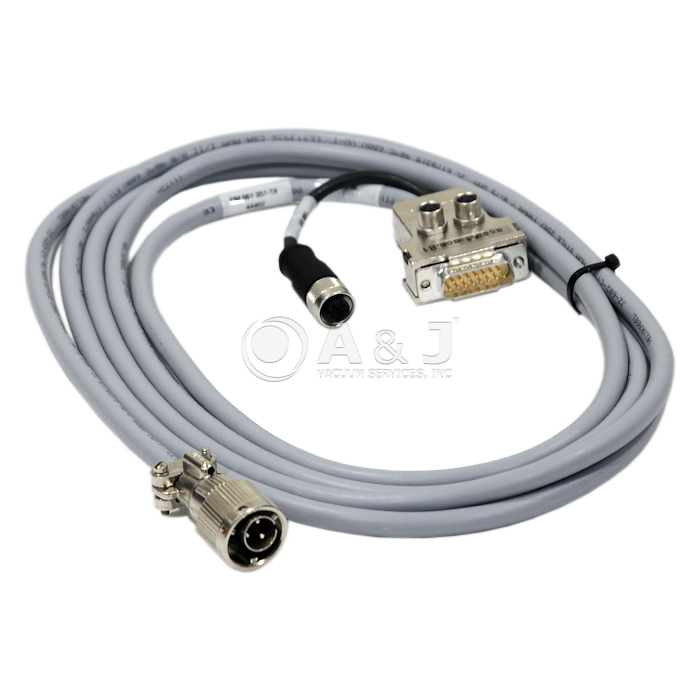

Item#:PN07059
Mfr Part#:2000018772 / PM061351-T / PM 061 351 -T
Condition: In Stock
New
In Stock
$479.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
