Pfeiffer HLT 570 Helium Leak Detector, 120 V, 60 Hz, PTL02111

Condition: Remanufactured

Call us for Availability

Item#:PN14558

Mfr Part#:PTL02111

Manufacturer:Pfeiffer Vacuum

Price upon request

Request a repair estimate Request sales quote Financing available

Remanufactured Pfeiffer Vacuum HLT570 Helium Leak Detector, 120 V, 60 Hz PTL02111

Features:

Overview
Specifications
Manuals
AJVS Brochures
Videos
Service & Repair

Pfeiffer Vacuum HLT570 Helium Leak Detector, 120 V, 60 Hz PTL02111

Pfeiffer HLT 570 Overview & Features:

Rugged, dependable helium leak detector.
For a mains voltage of 120 V, 60 Hz
With 5.1 m3/h UNO5 Rotary Vane Pump
Very easy operation to achieve precise measuring results
Wireless remote control optional, distance up to 100 m as well as data logging to USB stick
Durable and industry-tested mass spectrometer
Integrated test leak
Bypass option for large test items
For sniffer and vacuum leak detection
Simple maintenance - low cost of ownership

Helium Leak Detector – The clever and modular Solution. Simple Operation. Top Performance.

With its modular design and it's new wireless remote control RC 500 WL, the SmartTest offers the perfect solution for vacuum leak detection. Fast, reliable results, lowest detectable leak rates and short recovery time are what characterize the SmartTest and make it such a powerful and dependable product.

Utmost sensitivity in identifying even the smallest leaks. Quantification of the leaks. Outstanding reproducibility of the measurement. Helium test gas is non-toxic and non-flammable. Short measurement times

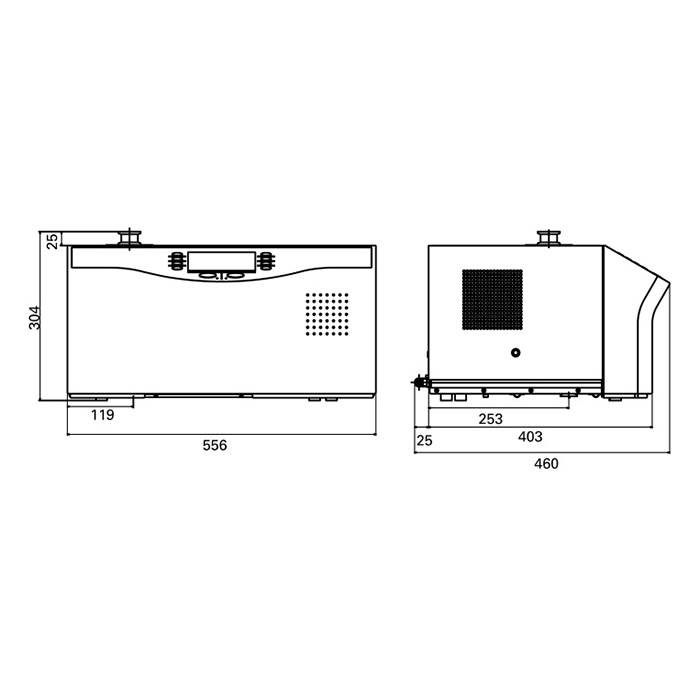

Pfeiffer HLT 570 Dimensions:

Pfeiffer HLT 560 Leak Detector Dimension, PTL02001

Click Here for Pfeiffer HLT 570 Manual

A&J Vacuum Services offers full repair/service of Pfeiffer HLT 570 SmartTest Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

This item is non-returnable/non-refundable

Pfeiffer Vacuum HLT570 Helium Leak Detector, 120 V, 60 Hz PTL02111

Pfeiffer HLT 570 Technical Data:

Ambient temperature	10-35 °C
Cold start to ready	3 min
Detectable gases	4He, 3He, H2
Flange (in)	DN 25 ISO-KF
Inlet pressure max.	25 mbar
Input: Analog	ActiveLine vacuum transmitter
Input: Digital	Start/Stop, Vent, Cero, Calibration, Bypass detection
Interface	RS-232-C, RS-485
Leak rate display	10-12 - 1 mbar l/s
OuTPU t: Analog	Leakage rate signal 2 x 0-10 V, lin/log
OuTPU t: Digital	Ready to start, Ready to measure, Leak, Error, Bypass valve, Calibration acknowledge
Power consumption	300 VA
Pumping speed for He	2.5 l/s
Pumping time to ready: 0.5 l test volume	no
Pumping time to ready: 0.5 l test volume	1 s
Pumping time to ready: 100 l test volume	no
Pumping time to ready: 100 l test volume	1300 s
Pumping time to ready: 10 l test volume	no
Pumping time to ready: 10 l test volume	125 s
Relay: Switching capacity	2 x 230 V AC
Relay: Switching current	3 A
Response time	0.5 s
Roughing pump	no
Roughing pump	Diaphragm pump 2 m3/h
Smallest detectable leak rate for He (according AVS 2.1)	< 5·10-12 mbar l/s
Sniffer probe, detectable leak rate	< 5·10-8 mbar l/s
Supply	no
Supply	120 V, 60 Hz
Test method	Vacuum and sniffing leak detection
Weight	44 kg

Click Here for Pfeiffer HLT 570 Manual
