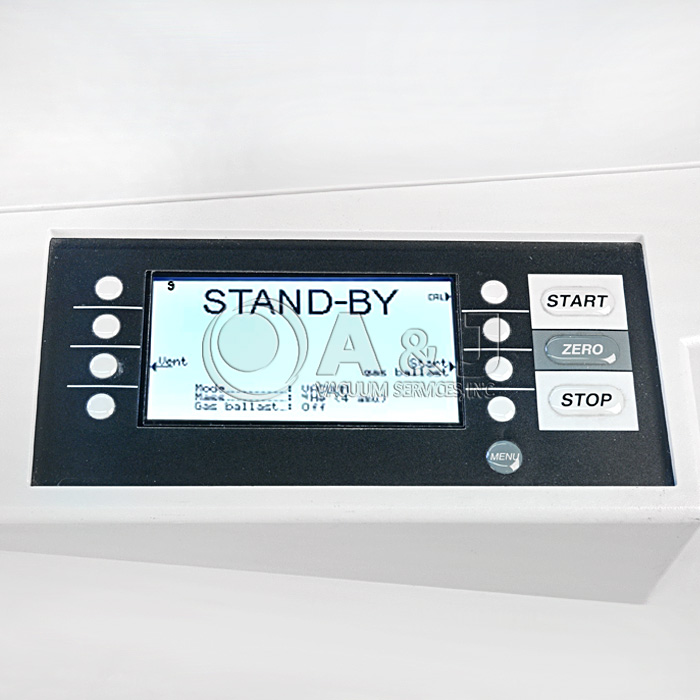

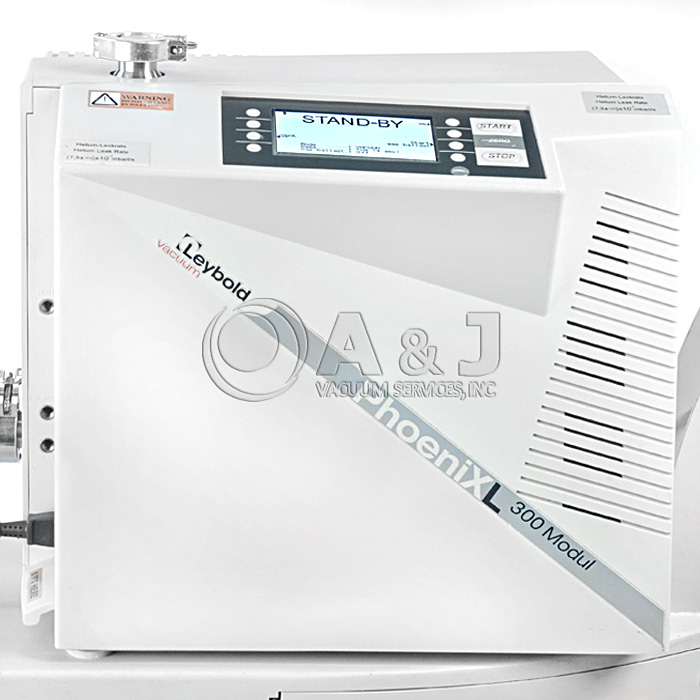

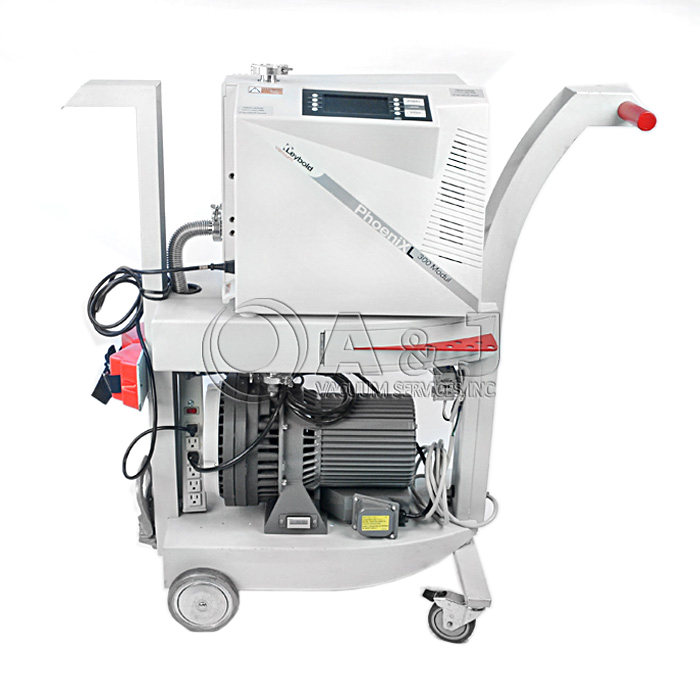

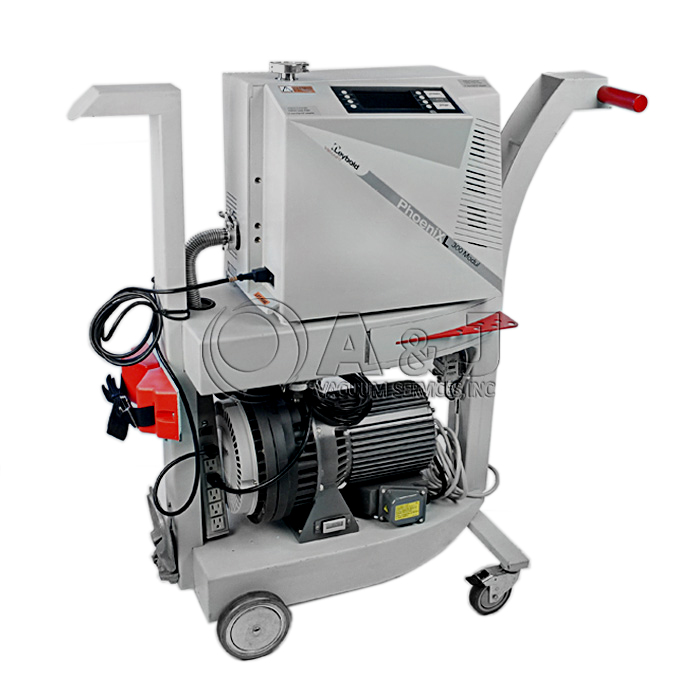

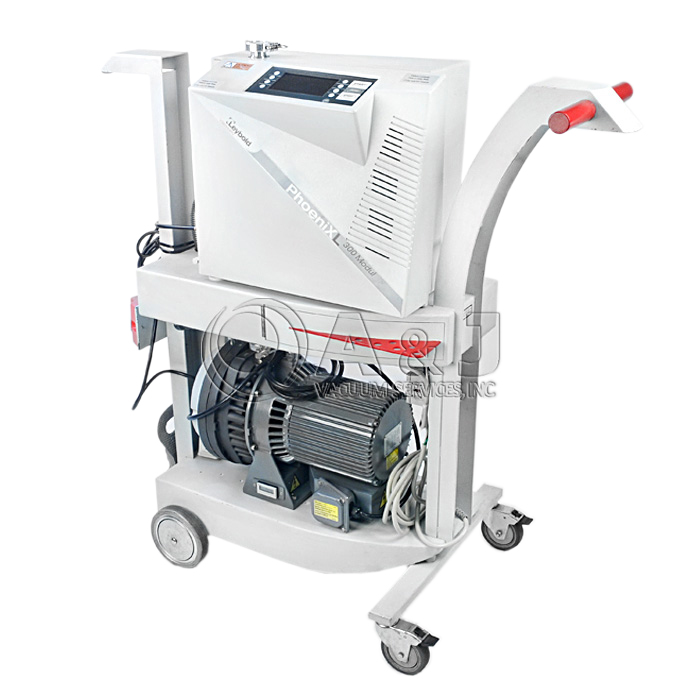

The PhoeniXL is a leak detector for Helium or Hydrogen. This instrument may be used to detect the location and the size of leaks on objects under test in two different ways:
The PhoeniXL is to be used for leak detection only. It must not be used as a pumping system (esp. pumping aggressive or humid gases.)
Pumping condensable gases and steams: When pumping test sample water vapour that is inside the test object can attain to the fore pump. With the water vapor that is in the air - especially in humid areas or when using humid or wet test samples - the acceptable compatibility of water vapor or capacity of water vapor respectively can be exceeded. The steam in the oil of the pump condeses when the water vapor rises over the acceptable value. So the attribute of the oil changes and danger of corrosion occures for the pump.
While using the leak detector with condensable gases and steams the oil of the fore pump has to be controlled regularly. So you can recognize a condensation of water vapor in the pump. Usually the oil is light and lucent. When water vapor is inside it gets blear and milky at operating state temperature. When turning the pump off water vapor condensates and raises the part of water in the oil.
The leak detector must not directly be switched off after the process, in which condensable gases or steams are pumped, is finished. It must be running (at least 20 minutes) with opend gas ballast valve until the oil of the pump is freed from detached steam.
Click Here for Leybold PhoeniXL 300 Operating Instruction
Click Here for Leybold Oerlikon Helium Leak Detectors
Click Here for Leybold Leybold Product Brochure
A&J Vacuum Services offers full repair/service of Oerlikon / Leybold PhoeniXL 300, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

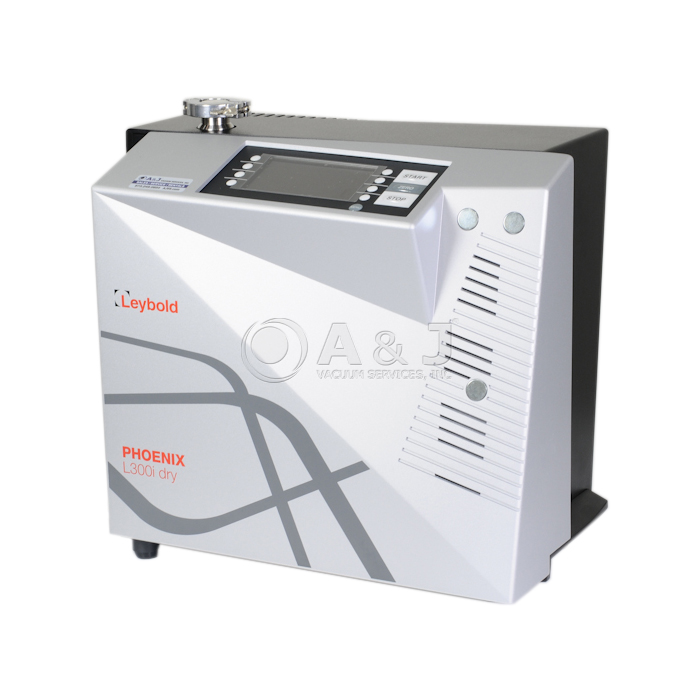

Leybold Phoenix L300i P/N 251000 represents next Generation in Helium Leak Testing. Phoenix L300i Helium Leak Detector opens up new domensions of productivity and reliability for your applications.
Leybold Phoenix 300i is a helium leak detector of many purposes - it is suited to service and series production testing. Becuase of its design, the Phoenix L300i is the most user friendly leak detector in its class.
Phoenix L300 Leybold Helium Leak Detectors allow to localize leaks and quantitatively determine the leak rate. The Phoenix helium leak detector permits that by evacuation of the portion to be tested so that gasses from the outside can enter through an existing leak due to the pressure difference. Upon helium is brought in front of the leak, it flows through the leak and is later pumped out by the detector. The partial pressure of helium, once in the leak detector, is measured by a mass spectrometer and is displayed as a leak rate.
Click Here for Leybold Phoenix L300i Operating Instructions Manual
Click Here for Product Brochure
Click Here for Leybold Phoenix Leak Detector Instruments Catalog
A&J Vacuum repair / rebuild and service all Leybold Oerlikon Phoenix 300i Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Vacuum Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold UL200 Helium Leak Detector, bench top unit to be used with external Roughing pump (Not Included)
3 CFM Roughing Pump Required
The Leybold Ultratest UL200 is a helium leak detector. This Instrument may be used to locate and quantify leaks in test samples.
The UL 200 is capable of detecting and quantifying helium test gas flowing into a test sample having a leak by means of selective mass spectometer. It's operation is based on the counter flow principle, i.e. inflowing helium diffuses against the gas flow being pumped by the turbomolecular pump into the mass spectometerwhereas heavier gases are held back.
The Backing Pump (not Included) generates the forepressure required for operation of the turbomolecular pump.
A&J Vacuum Services offers full repair/service of Leybold UL 200, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
The Leybold Ultratest UL200 is a helium leak detector. This Instrument may be used to locate and quantify leaks in test samples.
The UL 200 is capable of detecting and quantifying helium test gas flowing into a test sample having a leak by means of selective mass spectometer. It's operation is based on the counter flow principle, i.e. inflowing helium diffuses against the gas flow being pumped by the turbomolecular pump into the mass spectometerwhereas heavier gases are held back.
The Leybold Trivac 2.5 Backing Pump generates the forepressure required for operation of the turbomolecular pump.
