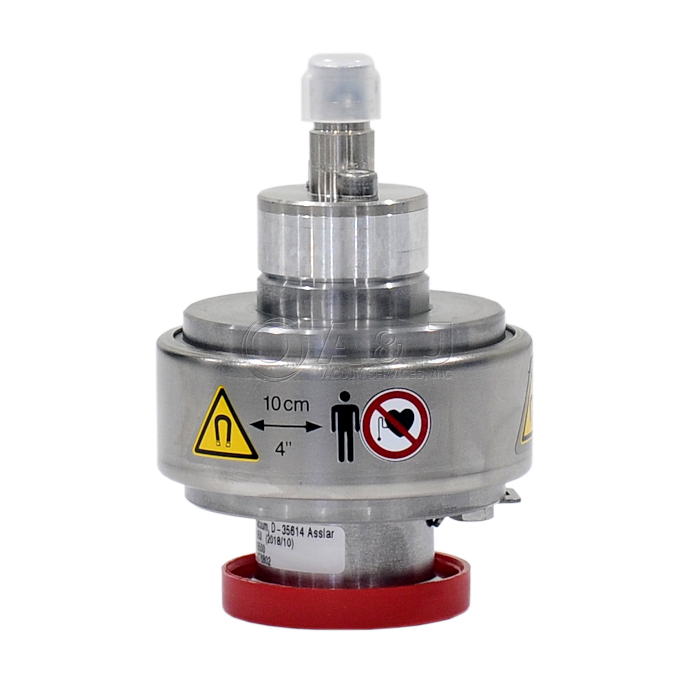

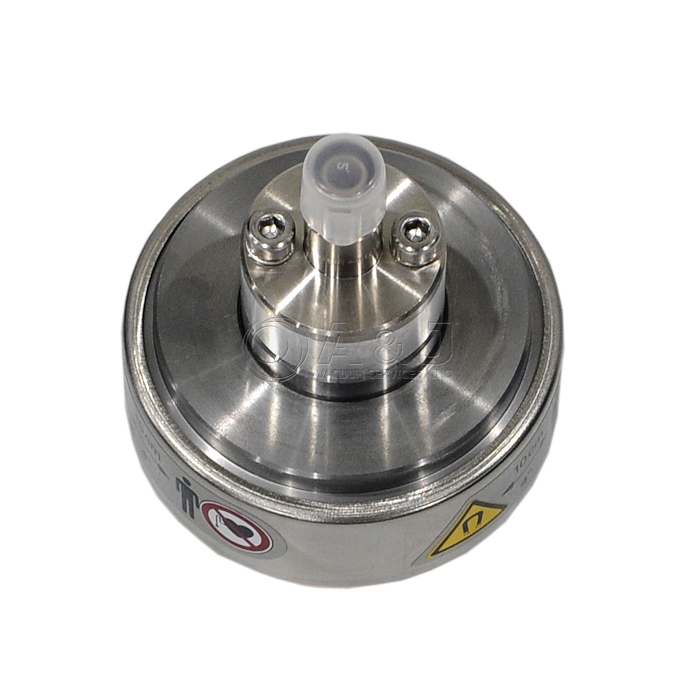

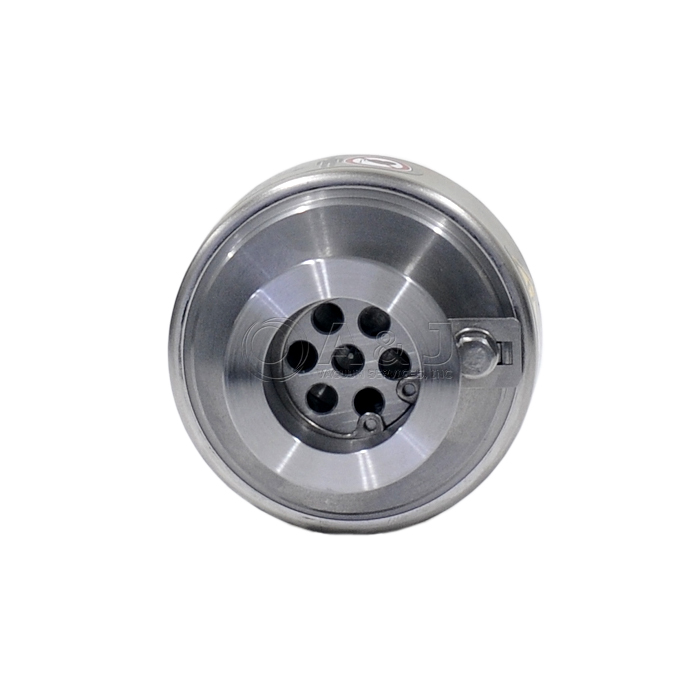

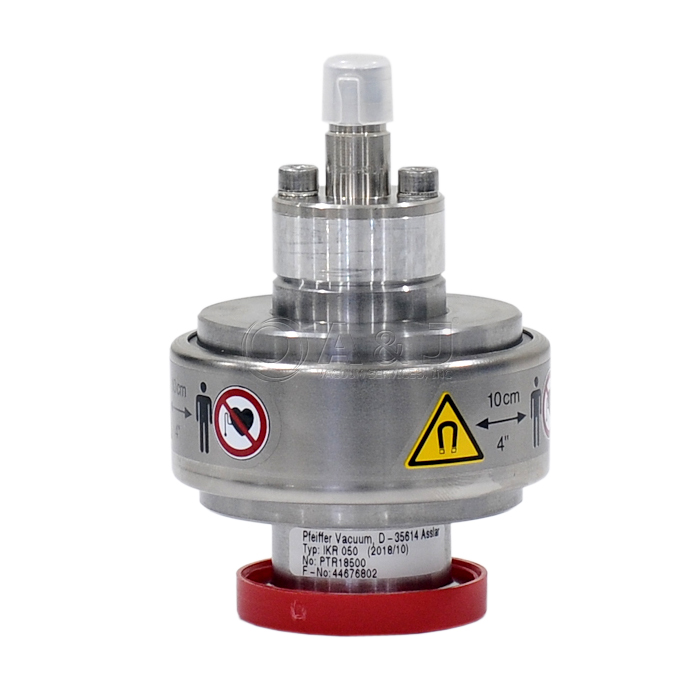

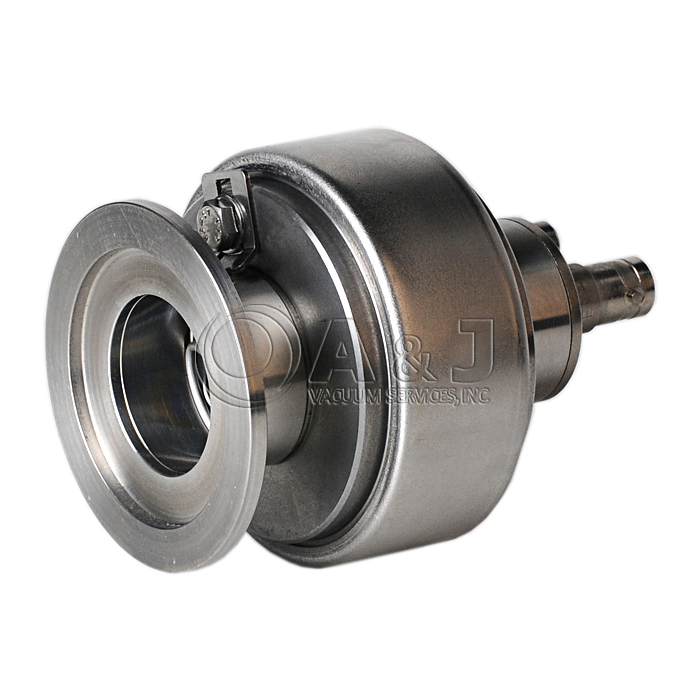

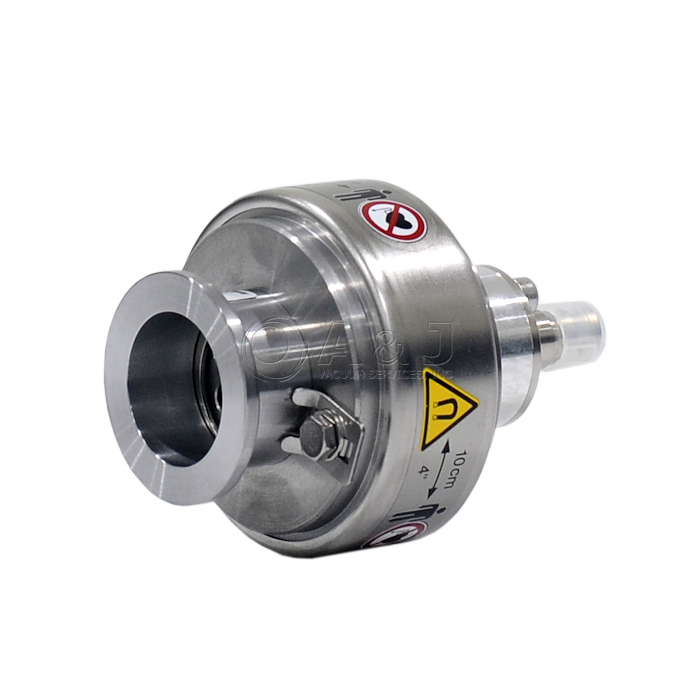

Pfeiffer IKR 050 Cold Cathode Gauge Head, Coaxial, DN 40 ISO-KF, FPM Sealed, 2000006914 / PT R18 501 / PTR18501
Condition:
New
In Stock
Item#:PN16109
Mfr Part#:2000006914 / PT R18 501 / PTR18501
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer IKR 050 Cold Cathode Gauge Head, Coaxial, DN 40 ISO-KF, FPM Sealed, 2000006914 / PT R18 501 / PTR18501
Pfeiffer IKR 050 Cold Cathode Gauge Head Features:
- Flange size DN 40 ISO-KF
- For general applications
IKR 050 Cold Cathode Gauge Head / 2000006914 Overview:
The Pfeiffer IKR 050 is used together with a Pfeiffer Vacuum measurement and control unit of the type TPG 300.
Over the whole measurement range, the measuring signal is output as logarithm of the pressure.
The IKR 050 functions with a cold cathode ionization measurement circuit (according to the inverted magnetron principle).
A&J Vacuum services and repairs Pfeiffer Vacuum Measurement Controlers ModulLine IKR050, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer IKR 050 Cold Cathode Gauge Head, Coaxial, DN 40 ISO-KF, FPM Sealed, 2000006914 / PT R18 501 / PTR18501
Pfeiffer IKR 050 Cold Cathode Gauge Head Technical Data:
| Ambient temperature | 5 – 150 °C | 41 – 302 °F | 278.15 – 423.15 K |
| Bake-out temperature max. | ≤ 150 °C | ≤ 302 °F | ≤ 423.15 K |
| Connecting flange | DN 40 ISO-KF |

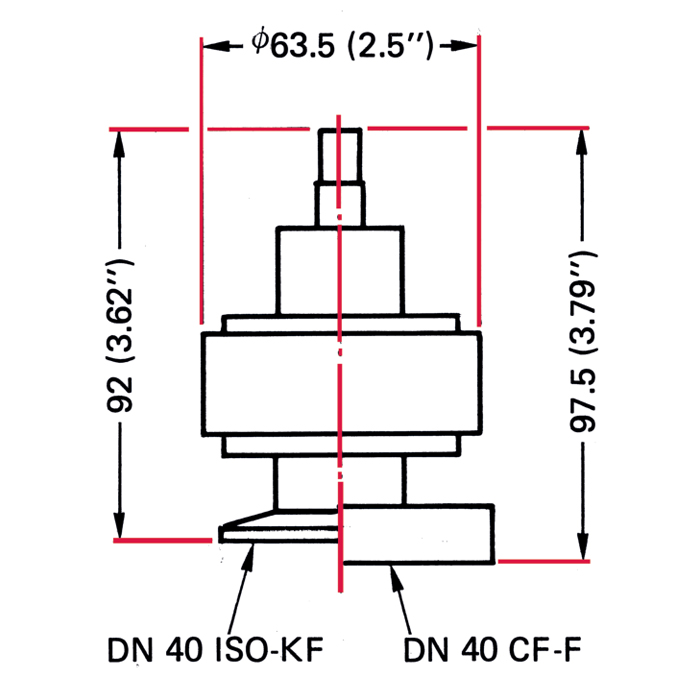

| Dimension (D x L) | 63.5 mm x 109.5 mm | 2.5 x 4.31 inch |
| Electrical connection | SHV, female |
| Flange, material | Stainless steel |
| Insulator | Al2O3 |
| Materials in contact with media | Ceramic (Al2O3 = 99.5 %) FPM Mo Stainless steel 1.4306 (AISI 304L) Stainless steel 1.4310 (AISI 301) |
| Measurement accuracy in range 0 | ca. 30 % (of measured value) |
| Measurement method | Cold cathode |
| Measurement range | 2E-9 – 5E-3 hPa | 1.5 · 10-9 – 3.75 · 10-3 Torr | 2 · 10-9 – 5 · 10-3 mbar |
| Mounting orientation | Arbitrary |
| Operating altitude max. | 2000 m |
| Operating site | Indoor, weatherproof |
| Pressure max. | 9 · 103 hPa | 6,750 Torr | 9,000 mbar |
| Protection degree | IP40 |
| Repeatability in range 0 | ca. 5 % (of measured value) |
| Seal | FKM |
| Special feature | FPM sealed |
| Weight | 0.6 kg | 1.32 lb |
A&J Vacuum services and repairs Pfeiffer Vacuum Measurement Controlers ModulLine IKR050, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
