- Inlet Flange: DN 25 ISO-KF
- Flange: Stainless Steel
- Inner Seal: FPM
- PN PTR18753
Shopping Cart ( )

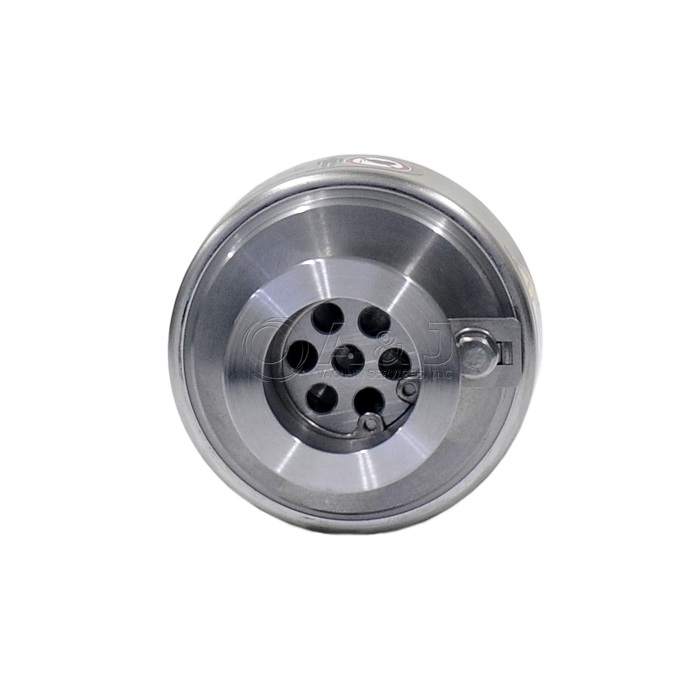

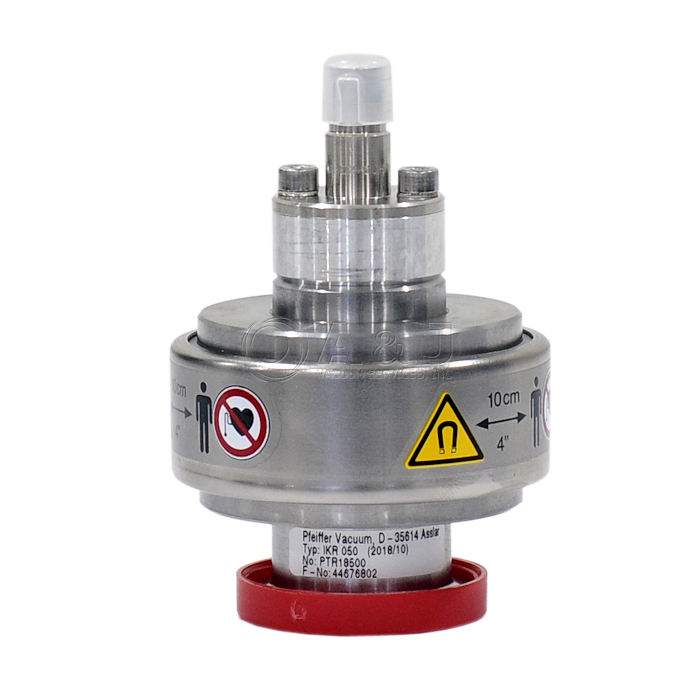

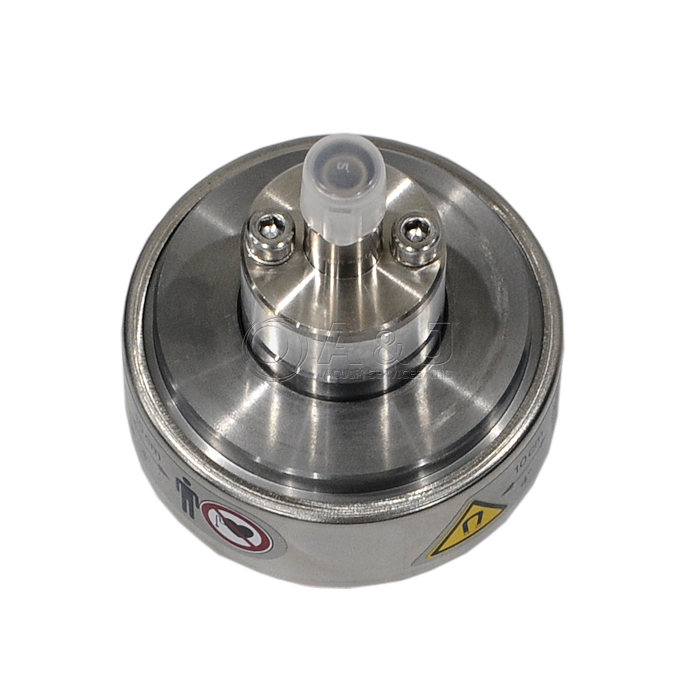

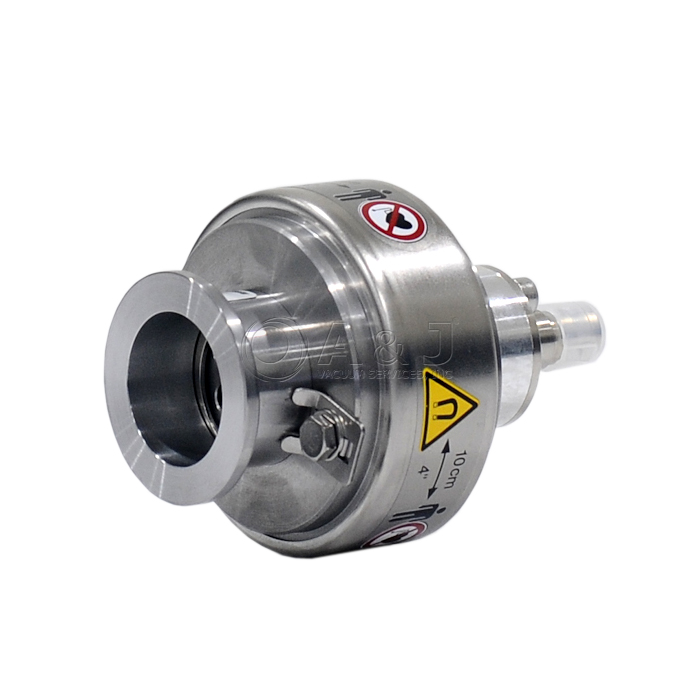

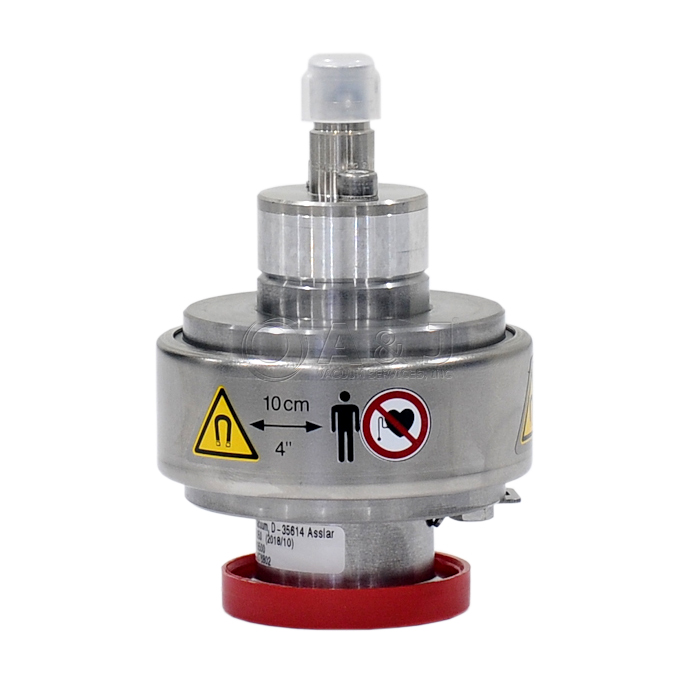

Pfeiffer IKR 060 Cold Cathode Gauge Head, Coaxial, DN 40 ISO-KF, Metal Seal, 2000006922 / PT R18 753 / PTR18753
Condition:
New
In Stock
Item#:PN22404
Mfr Part#:2000006922 / PT R18 753 / PTR18753
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer IKR 060 Cold Cathode Gauge Head, Coaxial, DN 40 ISO-KF, Metal Seal, 2000006922 / PT R18 753 / PTR18753
IKR 060 Cold Cathode Gauge Head / 2000006922 Overview:
The Pfeiffer IKR 060 is used together with a Pfeiffer Vacuum measurement and control unit TPG 300.
Over the whole measurement range, the measuring signal is output as logarithm of the pressure.
The IKR060 functions with a cold cathode ionization measurement circuit (according to the inverted magnetron principle).
A&J Vacuum services and repairs Pfeiffer Vacuum Measurement Controlers ModulLine IKR050, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer IKR 060 Cold Cathode Gauge Head, Coaxial, DN 40 ISO-KF, Metal Seal, 2000006922 / PT R18 753 / PTR18753
Pfeiffer IKR 060 Cold Cathode Gauge Head Technical Data:
| Ambient temperature | 5 – 250 °C | 41 – 482 °F | 278.15 – 523.15 K |
| Bake-out temperature max. | ≤ 250 °C | ≤ 482 °F | ≤ 523.15 K |
| Connecting flange | DN 40 ISO-KF |
| Dimension (D x L) | 63.5 mm x 109.5 mm | 2.5 x 4.31 inch |
| Electrical connection | SHV, female |
| Flange, material | Stainless steel |
| Insulator | Al2O3 |
| Materials in contact with media | Ag Ceramic (Al2O3 = 99.5 %) Mo Stainless steel 1.4306 (AISI 304L) Stainless steel 1.4310 (AISI 301) |
| Measurement accuracy in range 0 | ca. 30 % (of measured value) |
| Measurement method | Cold cathode |
| Measurement range | 1E-10 – 5E-3 hPa | 7.5 · 10-11 – 3.75 · 10-3 Torr | 1 · 10-10 – 5 · 10-3 mbar |
| Mounting orientation | Arbitrary |
| Operating altitude max. | 2000 m |
| Operating site | Indoor, weatherproof |
| Pressure max. | 9 · 103 hPa | 6,750 Torr | 9,000 mbar |
| Protection degree | IP40 |
| Radiation resistance | 1 · 107 Gy |
| Repeatability in range 0 | ca. 5 % (of measured value) |
| Seal | Silver |
| Special feature | Metal sealed |
| Weight | 0.6 kg | 1.32 lb |
A&J Vacuum services and repairs Pfeiffer Vacuum Measurement Controlers ModulLine IKR050, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
