Pfeiffer KLF 063, cold trap PKZ80010
Condition:
New
Item#:PN06086
Mfr Part#:PKZ80010
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer KLF 063, cold trap PKZ80010
Pfeiffer KLF 063 Overview:
- The intake-side adsorption trap prevents oil backflow
- Cooling by means of liquid nitrogen, for example
- For inlet flange
- To be filled with liquid nitrogen or similar. Prevents backstreaming of any operating fluid by condensation
- Protects pump and operating fluid from harmful vapors from process
- Customer benefit: Longer life time of operating fluid and pump, clean vacuum
Pfeiffer Vacuum supplies a broad portfolio of mass spectrometers, ranging all the way to high-perfomance mass spectrometers for plasma analysis.
Pfeiffer Vacuum stands for innovative and custom vacuum solutions worldwide, for German engineering art, competent advice and reliable service. As the inventor of the turbopump, we have always been consistently setting standards in our industry and this claim to leadership will continue to drive us in the future.

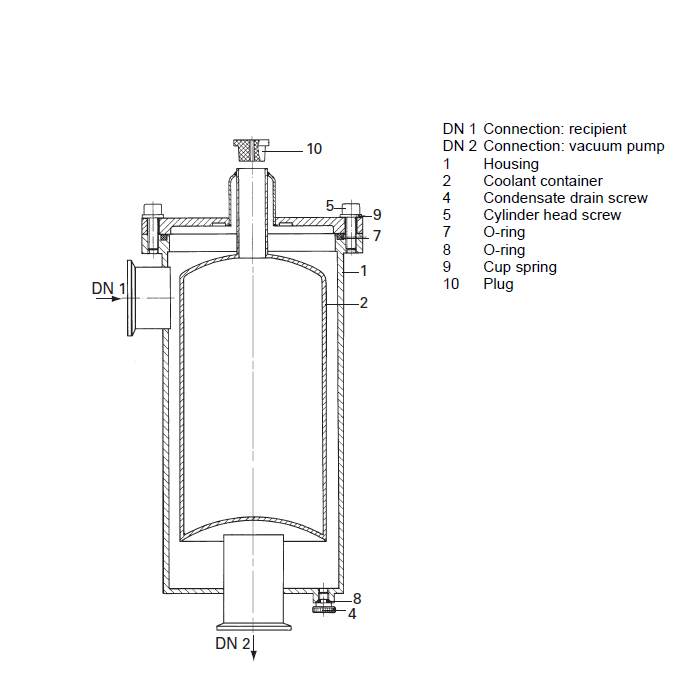

Pfeiffer KLF 063 Dimensions:
A: ø 190 mm
B: 130 mm
C: ø 159 mm
D: 530 mm
E: 400 mm
F: 45 mm
A&J Vacuum Services offers full repair/service of Pfeiffer Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer KLF 063, cold trap PKZ80010
Pfeiffer KLF 063 Technical Data:
| Conductance at 1 · 10-2 | 30 l/s |
| Conductance at 100 hPa | 3000 l/s |
| Conductance at 1 hPa | 800 l/s |
| Filling quantity condensate max. | 0.75 l |
| Filling quantity coolant | 3.8 l |
| Flange (in) | DN 63 ISO-K |
| Flange (out) | DN 63 ISO-K |
| For pumping speed up to | 120 m³/h | 70.63 cfm | 2,000 l/min |
| Mounting orientation | 0° (HV flange top) |
| Weight | 11.5 kg | 25.35 lb |
