The FL20K foreline trap has been developed for use in clean pumping systems, to prevent the back-migration of rotary pump oil mist into the system.
The FL20K is most useful with two-stage rotary pumps, operating below 1 mbar. To maximize sorbent life, install the FL20K near the vacuum system. In common with other types of sorbent, activated alumina absorbs water. This does not affect the oil vapor trapping properties but may tend to prolong the roughing time on successive pump downs. To minimize vapor absorption, we recommend you fit a valved by-pass line.
The trap body is made of aluminum and is fitted with a removable basket containing the sorbent.
A&J Vacuum Services offers full repair/service of Edwards Pumps, along with all other brands offered on our website. AJVS also services Edwards Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

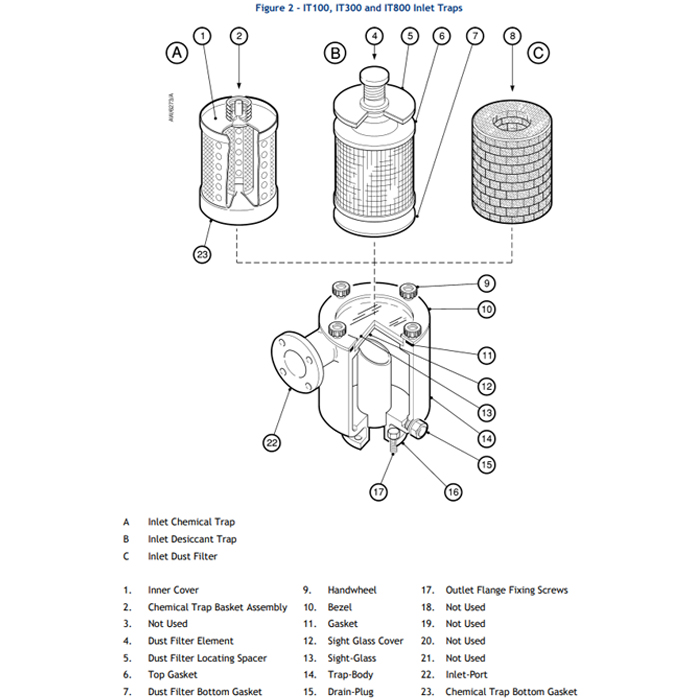

Inlet traps, dust filters and catchpots have an aluminum body with a removable metal top cover/or sight-glass. The inlet-port is at a tangent to the body to achieve a degree of centrifugal separation of solid and liquid particles.
All inlet traps, catchpots and filters of the same size have the same body. The traps and filters have containers and filter elements which fit inside the body.
To provide maximum protection to the pumping system they should be installed as close to the vacuum pumping system as is possible.
The ITC Inlet Chemical Trap protects the pump against aggressive or heavy, lacquer-forming vapours which may damage the pump or contaminate the pump oil.
A&J Vacuum Services offers full repair/service of Edwards Pumps, along with all other brands offered on our website. AJVS also services Edwards Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Inlet traps, dust filters and catchpots have an aluminium body with a removable metal top cover/or sight-glass. The inlet-port is at a tangent to the body to achieve a degree of centrifugal separation of solid and liquid particles.
All inlet traps, catchpots and filters of the same size have the same body. The traps and filters have containers and filter elements which fit inside the body.
To provide maximum protection to the pumping system they should be installed as close to the vacuum pumping system as is possible.

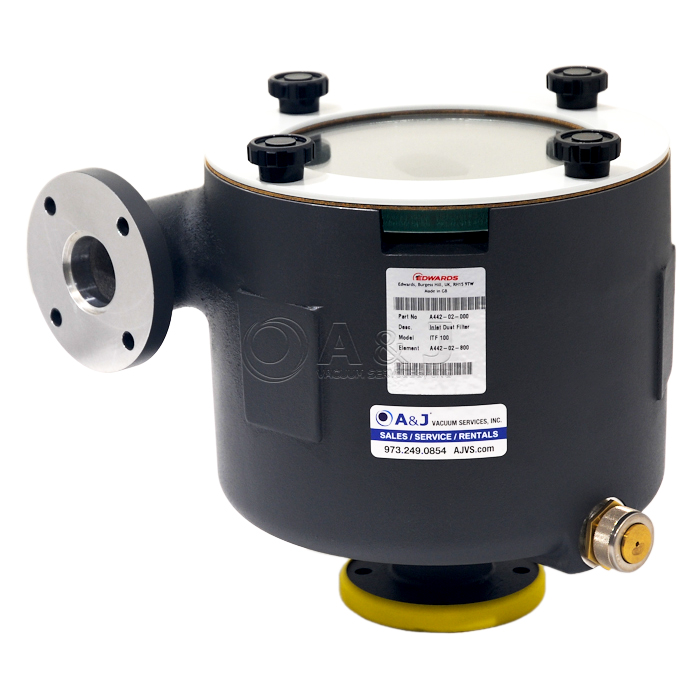

The ITF Inlet Dust Filter prevents the entry of dust particles into the pump.
The filter material is a man-made fibre. You can see the condition of the filter element through the sight-glass.
