- Max. Measurement Range: 1000 hPa
- Min. Measurement Range: 8 x 10-4 hPa
- Number of Measuring Circuits: 2
- Reaction Time of the Output Signal: Decay - 600 ms
Shopping Cart ( )

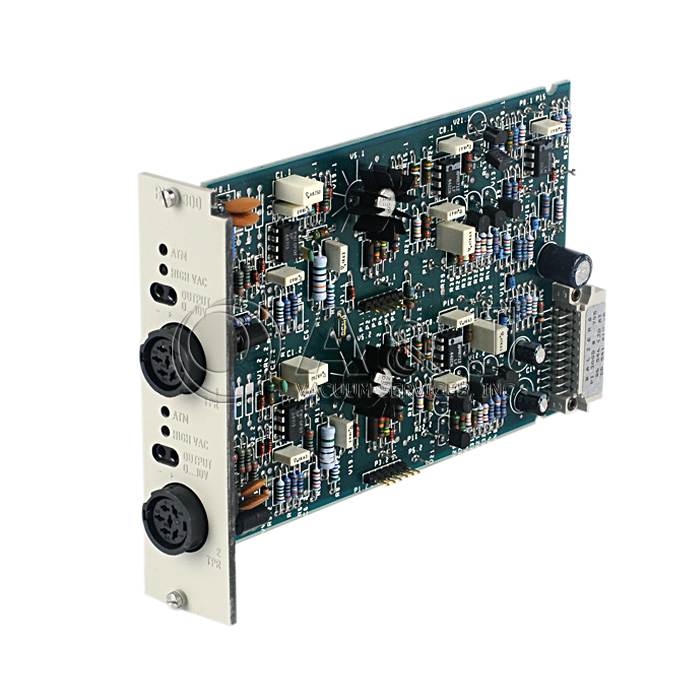

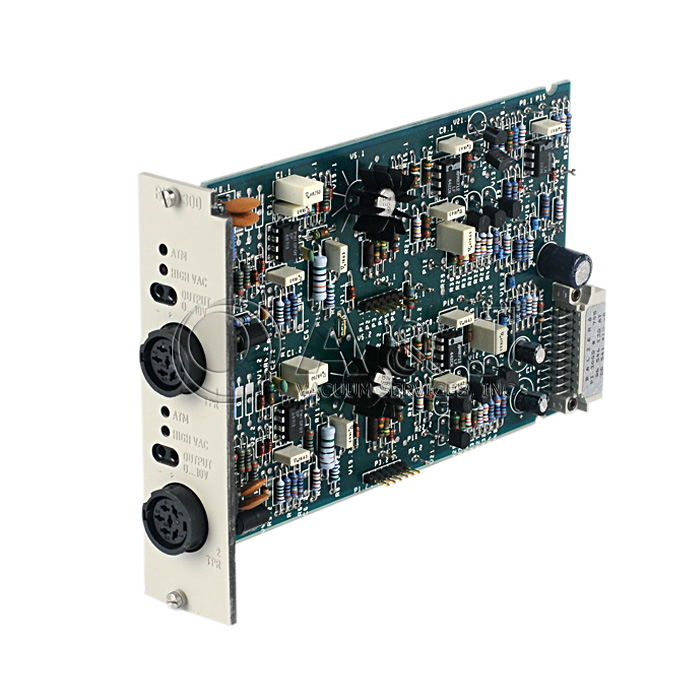

Pfeiffer Pirani Measurement Board PI 300 D for 2 TPR 010 / 018 Gauge Heads, 2000007872 / PT 546 920 -T / PT546920-T
Condition:
New
Item#:PN16114
Mfr Part#:2000007872 / PT 546 920 -T / PT546920-T
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Pirani Measurement Board PI 300 D for 2 TPR 010 / 018 Gauge Heads, 2000007872 / PT 546 920 -T / PT546920-T
Pfeiffer Measurement Board Overview:
Pfeiffer Vacuum Pirani Measurement Boards have two independent medium vacuum measurement circuits, each with one gauge cable connector, two trimmer potentiometers and one analog signal output. When the control unit is on, the Pirani measurement circuits are in continuous operation. The analog signals are constantly available, independent of what is shown on the pressure display.
*THERE ARE NO RETURNS ON THIS ITEM IF ITEM IS OPENED OR USED*
This item is non-returnable/non-refundable
Pfeiffer Pirani Measurement Board PI 300 D for 2 TPR 010 / 018 Gauge Heads, 2000007872 / PT 546 920 -T / PT546920-T
Pfeiffer Measurement Board Overview:
Pfeiffer Vacuum Pirani Measurement Boards have two independent medium vacuum measurement circuits, each with one gauge cable connector, two trimmer potentiometers and one analog signal output. When the control unit is on, the Pirani measurement circuits are in continuous operation. The analog signals are constantly available, independent of what is shown on the pressure display.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
