Leybold Phoenix Quadro Dry Helium Leak Detector, 60 Hz, 3.0 Cubic Meters/h, 250001V02
Condition:
New
Item#:PN22178
Mfr Part#:250001V02
Manufacturer:Leybold
Features:
Leybold Phoenix Quadro Dry Helium Leak Detector, 60 Hz, 3.0 Cubic Meters/h, 250001V02
Leybold Phoenix Quadro Dry Helium Leak Detector Features:

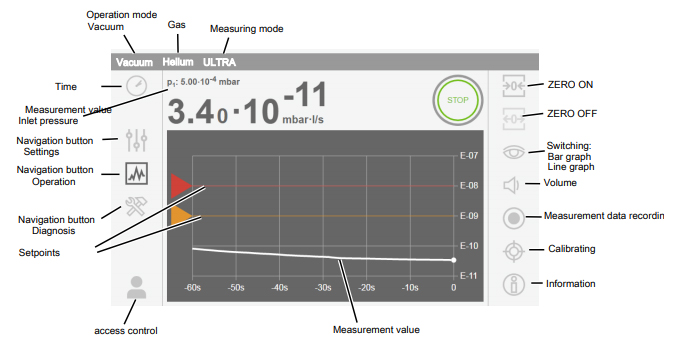

- HDMI Interface Allows Monitoring Leaks From Any Location
- Wi-Fi Login; No App or Software Needed
- Variety of Controlling Interfaces for Simplified Data Analysis
- Multiple User Profile Set-up System
- Periodic Automated Reminders
- Ability to Save up to 10 Parameters for Quick Change Between Experiments
- Employs Necessary Connections for Accessories such as Sniffer Line
- Multiple USB Ports
- Dry Versions Available & Compatible with Oil-Free Systems
- Smallest Detectable Leak Rate of 5 * 10^[-12] mbar I/s
- High Helium Pumping Speed
- High Level of Safety
- Improved Maintenance
Phoenix Quadro Dry Helium Leak Detector / 250001V02 Overview:
The New Leybold Phoenix helium leak detector provides excellent accuracy and performance. This helium leak detector, incorporating a new mode for helium sensitivity, is designed to identify and measure leaks in test objects with an immediate response.
This leak detector can be used for leak detection utilizing either a vacuum or sniffer method. To use the Leybold Phoenix helium leak detector using a vacuum method, a connection between the detector and the analyzed object must be established - the test object must be connected to the inlet flange of the device. A leak test can be performed by evacuating the test object and exposing it to helium gas. Should a leak be present, the helium gas will penetrate into the object - thus allowing the leak detector to establish a reading. The sniffer method of leak detection, on the other hand, involves analyzing test objects under over-pressure with a sniffer connected to the inlet flange of the detector.
A&J Vacuum services and repairs Leybold New Phoenix Quadro, Phoenix Magno, and Phoenix Vario Helium Leak Detectors, along with all other Leybold Vacuum Leak Detectors available on our website. Please contact us for information concerning our service and repair program, or click http://www.ajvs.com/service.php to access our Services page. We likewise offer Emergency service and repair upon request. For additional information, Please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier and business partner.
This item is non-returnable/non-refundable
Leybold Phoenix Quadro Dry Helium Leak Detector, 60 Hz, 3.0 Cubic Meters/h, 250001V02

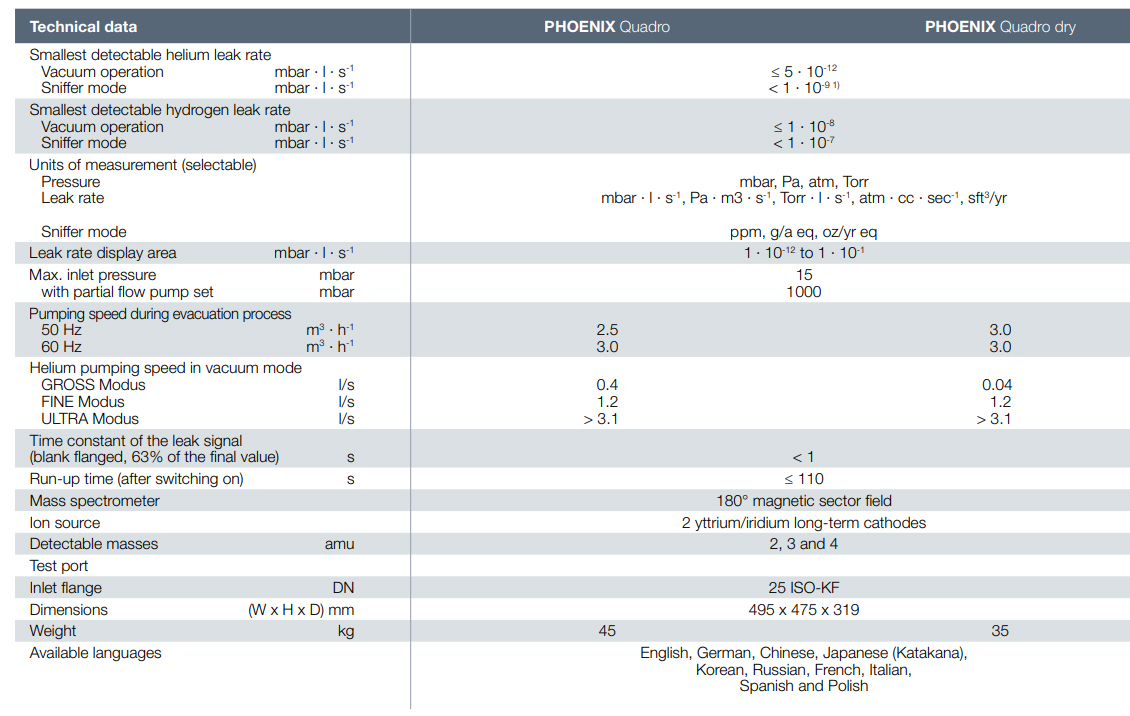

Leybold Phoenix Quadro Dry Helium Leak Detector Technical Data:
| Connector Electrical Power | IEC EN60320 C14 - Male (for C13 plug on mains cable) |
| Connection Inlet Flange | DN 25 ISO-KF (NW25) |
| Cooling Method | Air Cooling (forced - fan) |
| Dimension Height | 0.475 m | 18.70 in |
| Dimension Length | 0.495 m | 19.49 in |
| Dimension Width | 0.318 m | 12.52 in |
| IP Rating | IP30 |
| Power Supply Voltage | 1Ph 100-240V ± 10%, 50/60 Hz |
| Weight | 35.00 kg | 77.2 lb |
| Certification of Product | CE |
| Connection Purge Gas, Gas Ballast, Vent | Hose OD 8 mm |
| Classification Principle of Measurement | Helium leak detector - sector field mass spectrometer |
| Classification High / Medium / Rough Vacuum pump | High Vacuum Pump |
| Temperature Ambient Operation Max | 40.00 °C | 104.00 °F | 313.15 K |
| Temperature Ambient Storage Max | 60.00 °C | 140.00 °F | 333.15 K |
| Temperature Ambient Operation Min | 10.00 °C | 50.00 °F | 283.15 K |
| Temperature Ambient Storage Min | 10.00 °C | 50.00 °F | 283.15 K |
| Communication Interfaces Customer | 7" touch screen |
| Connection Accessories Connector | PHOENIX Remote1 PHOENIX Remote2 PHOENIX Accessory Port Sniffer PHOENIX HDMI PHOENIX USB PHOENIX LD - IO Interface |
| Pumping Speed Air Nitrogen | 3.000 × 10⁻³ m³/s |
| Pumping Speed Helium in Fine Mode | 1.200 × 10⁻³ m³/s |
| Ramp Up Time | 110.00 s |
| Lowest Detectable Leak Rate for Helium (Vacuum | Sniffer) | 5.000 × 10⁻¹³ Pa·m³/s 5.000 × 10⁻¹³ Pa·m³/s |
| Lowest Detectable Leak Rate for Hydrogen (Vacuum | Sniffer) | 1.000 × 10⁻⁹ Pa·m³/s 1.000 × 10⁻⁹ Pa·m³/s |
| Pumping Speed Helium in Gross Mode | 4.000 × 10⁻⁵ m³/s |
| Pumping Speed Helium in Ultra Mode | 3.100 × 10⁻³ m³/s |
| Detectable Masses | 2 amu 3 amu 4 amu |
