Pfeiffer UNO 6M Rotary Vane Vacuum Pump, 230/240 V, 50/60 Hz, 2000022973 / PKD07112 / PK D07 112 B
Condition:
New
Item#:PN22874
Mfr Part#:2000022973 / PKD07112B / PK D07 112 B
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer UNO 6M Rotary Vane Vacuum Pump, 230/240 V, 50/60 Hz, 2000022973 / PKD07112 / PK D07 112 B
Power cable is not included. Please view the accessories tab for compatible cables.
Product Overview:
The Pfeiffer UNO 6 M Vacuum Pump is a direct replacement and update over the now-obsolete Pfeiffer UNO 2.5 Vacuum Pump. The UNO 6M series of Pfeiffer Rotary Vane vacuum pumps incorporates oil-stage lubrication and a two-stage operating mechanism.
Our Pfeiffer UNO 6-M vacuum pumps are likewise equipped with a high vacuum safety valve. This valve mechanism tightly seals the vacuum chamber while the pump is operating at standstill mode, while simultaneously allowing for ventillation of the pump.
Pfeiffer DUO 6 M Rotary Vane Pump Key Features & Attributes:
- Very low ultimate pressure compared to other single-stage rotary vane pumps
- Minimal space requirement due to compact design
- Easy integration thanks to the UL and IEC 61010 certification of the entire pump
- Single-phase universal motor available, allowing an almost worldwide network coverage
- With maintenance-free magnetic coupling

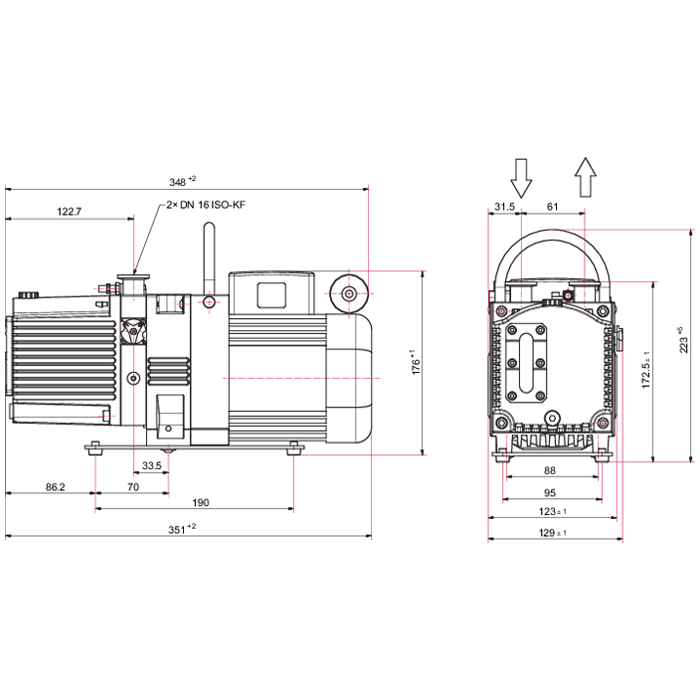

Pfeiffer UNO 6 M Dimensions:
A&J Vacuum services and repairs Pfeiffer Uno, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer UNO 6M Rotary Vane Vacuum Pump, 230/240 V, 50/60 Hz, 2000022973 / PKD07112 / PK D07 112 B
Technical Data UNO 6 M, 1-phase motor, 230/240 V, 50/60 Hz

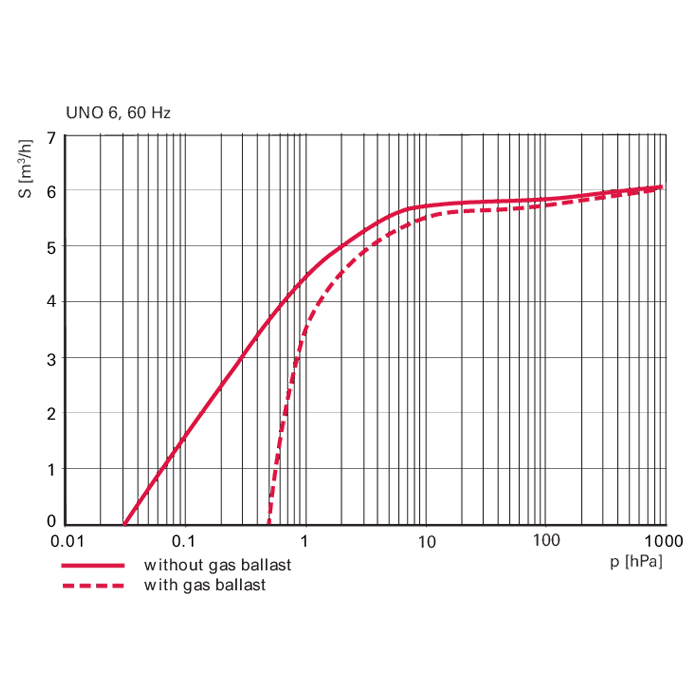

| Pumping speed at 60 Hz | 5.8 m³/h | 3.41 cfm | 96.67 l/min |
| Pumping speed at 50 Hz | 4.8 m³/h | 2.83 cfm | 80 l/min |
| Protection category | IP40 |
| Ultimate pressure with gas ballast | 5 · 10-1 hPa | 3.75 · 10-1Torr | 5 · 10-1 mbar |
| Ultimate pressure without gas ballast | 3 · 10-2 hPa | 2.25 · 10-2Torr | 3 · 10-2 mbar |
| Flange (in) | DN 16 ISO-KF |
| Flange (out) | DN 16 ISO-KF |
| Rated power 50 Hz | 0.15 kW |
| Rated power 60 Hz | 0.18 kW |
| Recommended mains fuse capacity | 4 A |
| Motor version | 1-ph motor |
| Motor protection | Bimetal |
| Mains cable | No |
| Cooling method, standard | Air |
| Ambient temperature | 12-40 °C | 53.6-104 °F | 285-313 K |
| Exhaust pressure, max. | 1,500 hPa | 1,125 Torr | 1,500 mbar |
| Emission sound pressure level without gas ballast at 50 Hz | 56 dB(A) |
| Operating fluid | P3 |
| Operating fluid filling | 0.4 l |
| Rotation speed at 50 Hz | 3,000 rpm | 3,000 min-1 |
| Rotation speed at 60 Hz | 3,600 rpm | 3,600 min-1 |
| Leak rate safety valve | ≤ 1 · 10-5 Pa m3/s | ≤ 7.5 · 10-5 Torr l/s | ≤ 1 · 10-4mbar l/s |
| Dimensions (L x W x H) | 353 x 128 x 177 mm | 13.9 x 5.04 x 6.97 inch |
| Weight | 12 kg | 26.46 lb |
A&J Vacuum services and repairs Pfeiffer Uno, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
