Pfeiffer Uno 6 M Rotary Vane Pump, Single Phase Motor, 115 / 230 V, 50/60 Hz, PK D07 111 B / PKD07111B

Pfeiffer Uno 6 M Features:

• Integrated GB and safety valve

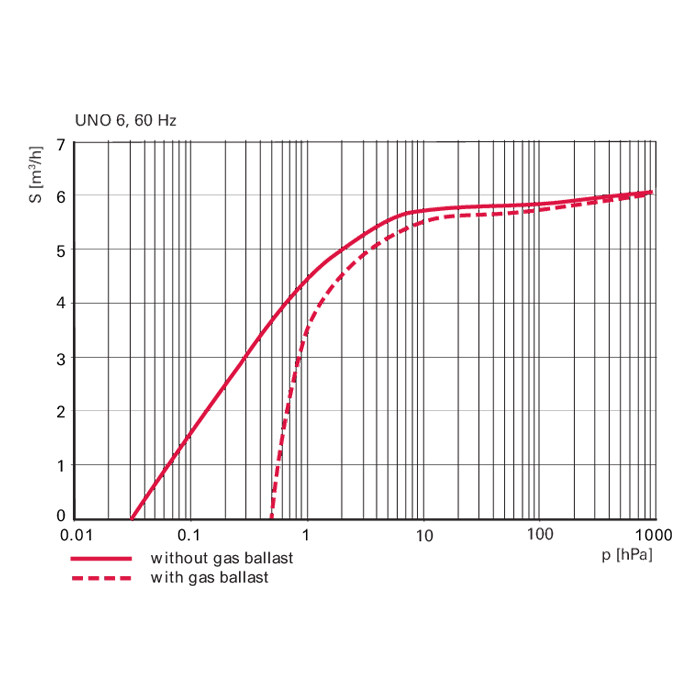

• Pumping speed of 2.83 CFM at 50 Hz and 3.41 CFM at 60 Hz
• Ultimate pressure of 0.5 mbar with GB
• High performance single-stage pump
• Compact design

Uno 6 M / PKD07111B Overview:

The rotary vane pumps are single-stage, oil-sealed, rotary positive displacement pumps designed for applications in the coarse and medium vacuum range. They are offered in a standard version with a conventional shaft seal, or as an M version featuring a non-contact, wear-free magnetic coupling drive. The pump housing is hermetically sealed.

A built-in gas ballast system allows controlled introduction of ambient air or inert gas into the suction chamber. This helps minimize condensate formation within the pumping system.

These rotary vane pumps are also equipped with a vacuum safety valve, which isolates the pump from the vacuum chamber during intentional or unintentional shutdowns. It vents the pumping system using displaced gas to prevent oil from backstreaming into the vacuum chamber. Upon startup, the valve opens after a short delay.

Accessory cable has to be ordered separately.

Uno6M Scope of Delivery:

• Rotary vane vacuum pump with motor
• Operating fluid
• Centering ring with cone sieve and O-ring for the vacuum flange
• Centering ring with nozzle and O-ring for the exhaust flange
• Locking caps for both connection flanges
• Operating instructions

Uno6 Applications:

• Research & Development
• Scientific instruments
• Medical
• Metallurgy
• Thin film coating
• Pharma and biotech
• Leak detection

A&J Vacuum Repairs / Rebuilds and Services all Pfeiffer UnoLine rotary vane pumps including all other Pfeiffer vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Pfeiffer UNO 6M Rotary Vane Vacuum Pump, 230/240 V, 50/60 Hz, 2000022973 / PKD07112 / PK D07 112 B

Power cable is not included. Please view the accessories tab for compatible cables.

Product Overview:

The Pfeiffer UNO 6 M Vacuum Pump is a direct replacement and update over the now-obsolete Pfeiffer UNO 2.5 Vacuum Pump. The UNO 6M series of Pfeiffer Rotary Vane vacuum pumps incorporates oil-stage lubrication and a two-stage operating mechanism.

Our Pfeiffer UNO 6-M vacuum pumps are likewise equipped with a high vacuum safety valve. This valve mechanism tightly seals the vacuum chamber while the pump is operating at standstill mode, while simultaneously allowing for ventillation of the pump.

Pfeiffer DUO 6 M Rotary Vane Pump Key Features & Attributes:

• Very low ultimate pressure compared to other single-stage rotary vane pumps
• Minimal space requirement due to compact design
• Easy integration thanks to the UL and IEC 61010 certification of the entire pump
• Single-phase universal motor available, allowing an almost worldwide network coverage
• With maintenance-free magnetic coupling

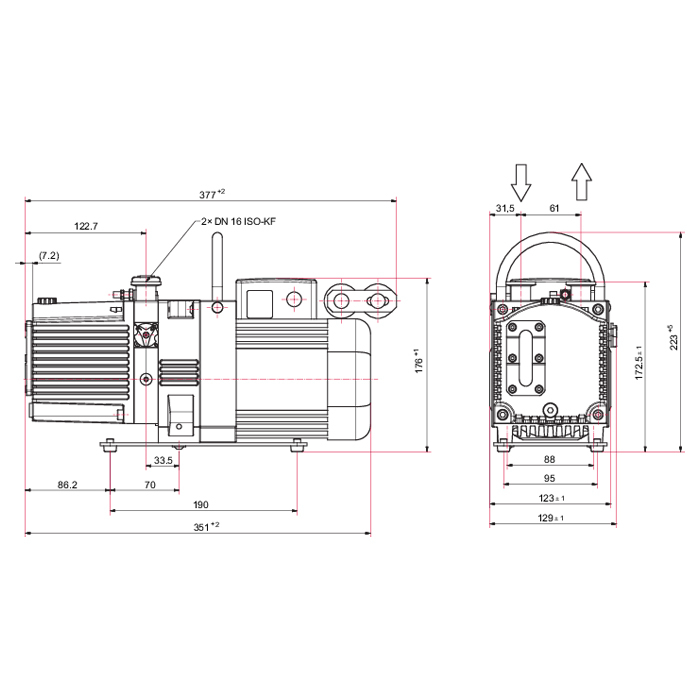

Pfeiffer UNO 6 M Dimensions:

A&J Vacuum services and repairs Pfeiffer Uno, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
