- Inlet flange: DN 63 CF-F
- Ultimate pressure: < 1 x 10-8 hPa
- Pumping speed: 67 l/s
- Backing pump: Duo 3
Shopping Cart ( )
Pfeiffer Vacuum HiCube 80 Classic Turbo Pump Station, DUO 3, DN 63 CF-F, 110 V AC, PMS2232000
Condition:
New
Item#:PN06269
Mfr Part#:PMS2232000
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer Vacuum HiCube 80 Classic Turbo Pump Station, DUO 3, DN 63 CF-F, 110 V AC, PMS2232000
Pfeiffer HiCube 80 Classic Features:
- 10-10 mbar. Available as a version within the HiCube series that offers especially compact dimensions is the HiCube Eco with pumping speeds of 35 l/s to 67 l/s.

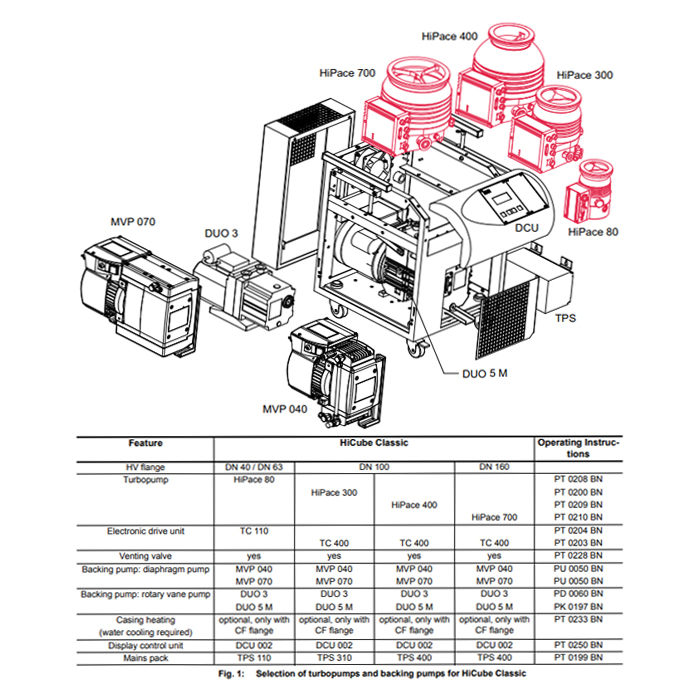

- HiCube 80 Clasic Station is a Combination pumping station incorporating turbopump and backing pump for all high vacuum applications
- Air-cooled and ready for operation with HiPace 80 and DUO 3 backing pump
HiCube 80 Classic / PMS2232000 Overview:
The HiCube 80 PM S22 320 00 Classic pumping stations are suitable for all high and ultra high vacuum applications and are available with dry and oil-sealed backing pumps having pumping speeds of up to 685 l/s. Available for selection as backing pumps are dry diaphragm pumps with pumping speeds of up to 4.3 m3 / h or rotary vane pumps with pumping speeds of up to 6 m3 / h.
Heating Jacket, Water Cooling and 4 guiding rollers with 2 brakes are included.
With the modular design principle of the new Pfeiffer HiCube 80 series, the never-before-seen versatility will satisfy the widest range of requirements in the pumping speed range from 35 l/s to 685 l/s. Fully configured and ready for immediate employment, the turbopump and backing pump offer a perfect interplay: “Plug and Play” the way you want it.
The HiCube mobile turbopumping station sets new standards: It offers a convincing combination that consists of a new turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. Pfeiffer Vacuum offers you the new HiCube in Pro and Classic versions; available with dry or oil-sealed backing pump and an ultimate pressure of up to 5.
A&J Vacuum repair / rebuild and service all Pfeiffer Hicube80 Classic Turbo Pumping Stations PM S22 320 00 along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Turbo Pumping Stations Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer Vacuum HiCube 80 Classic Turbo Pump Station, DUO 3, DN 63 CF-F, 110 V AC, PMS2232000
Pfeiffer HiCube 80 Classic Technical Data:
A&J Vacuum repair / rebuild and service all Pfeiffer Hicube80 Classic Turbo Pumping Stations PM S22 320 00 along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Turbo Pumping Stations Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
