Pfeiffer Vacuum IKR 270 Series (Regular Case) Vacuum Gauge - Product Overview:

The Pfeiffer Vacuum IKR270 Regular Compact Cold Cathode Gauge has been designed for vacuum measurement of gases within a pressure range between 5 x 10^(-11) through 1 x 10^(-2) mbar. The gauge can be operated in connection with either a Pfeiffer Vacuum controller for compact gauges, or with another pressure evaluation unit.

The Compact Cold Cathode Gauge IKR 270 functions with a cold cathode ionization measurement circuit (according to the inverted magnetron principle). Over the entire measurement range, the measuring signal is depicted in terms of output as a logarithm of the pressure.

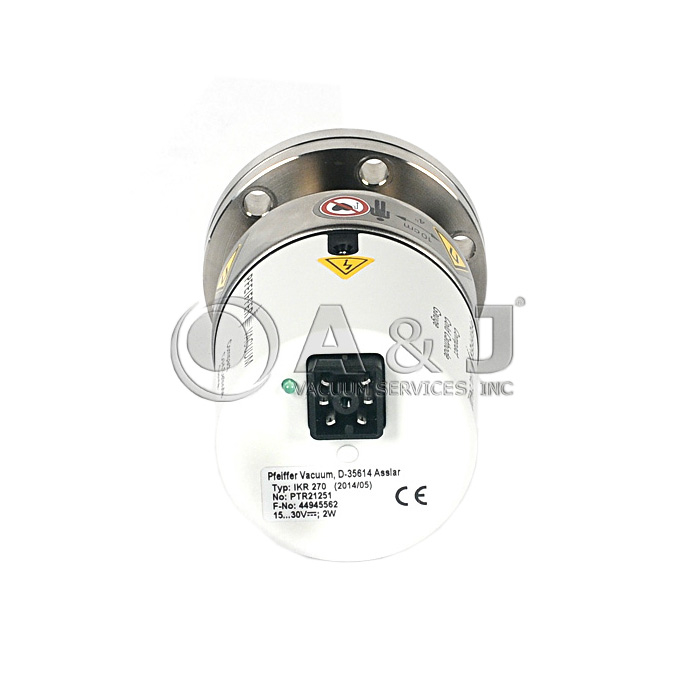

When voltage is being supplied to the gauge, the measuring signal is available between Pins 2 and 3.

Pfeiffer Vacuum IKR 270 (Regular) Vacuum Gauge - Product Features:

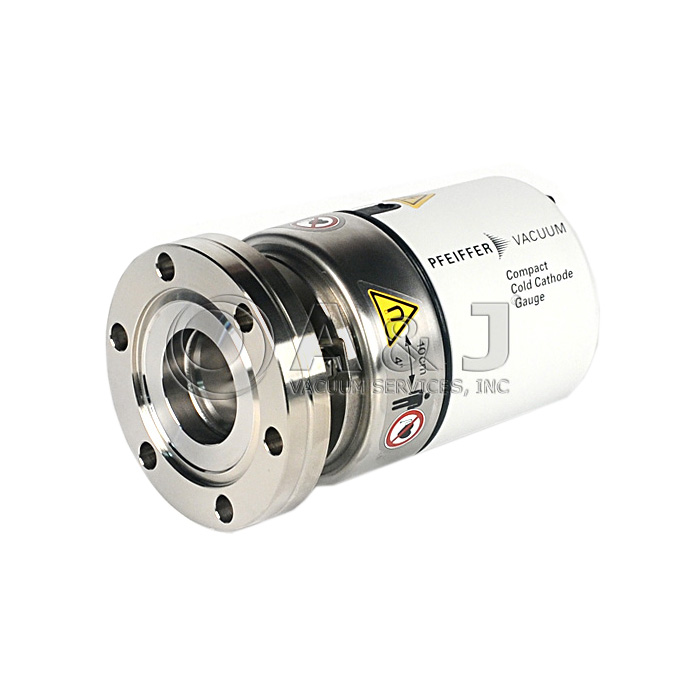

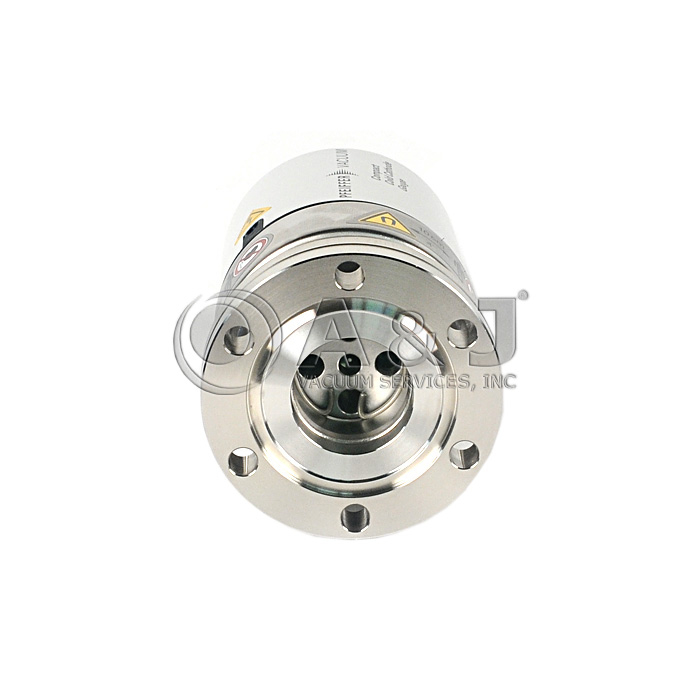

• Flange Size: DN 40 CF-F
• Measurement Range From 5 x 10^(-11) to 0.01 hPa
• Cold Cathode (Inverted Magnetron)
• Rugged and Dependable
• Insensitive to Air Ingress
• Corrosion-Resistant
• Regular-Size Case IKR 270 Gauge (Also Available in Long-Case Version; See Product 15630)
• Maximum Pressure Refers to Inert Gases and Temperatures of Less Than 55° C

A Brief Overview of Pressure Measurement Within a Vacuum System:

Pressure measurement is the analysis of an applied force by a fluid (liquid or gas) on a surface. Pressure is typically measured in units of force per unit of surface area - the Pascal (Pa) is the SI unit commonly used to measure pressure, equivalent to one newton per square meter. Alternatively, pounds per square inch (psi) can also be used as a unit of pressure measurement. In determining the degree of pressure within a vacuum or system, most gauges measure pressure relative to atmospheric pressure, a level referred to as the zero point. Vacuum gauges are especially precise instruments, as they are able to detect the slightest deviations from a state of total vacuum. Any reading greater than total vacuum in such a state constitutes a form of pressure, and thus a vacuum gauge uses total vacuum as the zero point. A vacuum gauge utilizes an absolute scale, whereby the lever begins at the zero point (a complete absence of pressure within a state of total vacuum) and can only change in one direction (as pressure increases).

Differential pressure is likewise an important concept in the field of pressure measurement, as it conveys the difference in pressure between two points or systems. Often times, this refers to the difference between standard atmospheric pressure (typically about 100 kPa at sea level) and the pressure within a vacuum environment. Differential pressure analyses are commonly used in industrial processing systems, and are incorporated within many of the products sold and serviced by A&J Vacuum Services. Differential pressure gauges feature two inlet ports, each connected to one of the two environments where pressure is to be monitored. By monitoring the pressure differential between a near-vacuum environment and one featuring standard atmospheric pressure, the user/operator may obtain an accurate pressure reading by subtracting the difference in total pressure between the two systems.

*THERE ARE NO RETURNS ON THIS PRODUCT IF OPENED OR USED*

Pfeiffer IKR 270 Dimensions:

A&J Vacuum services and repairs Pfeiffer IKR 270 (Regular Case) Compact Vacuum Gauges, along with all other Pfeiffer Vacuum gauges, transmitters, and pressure measurement devices available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
