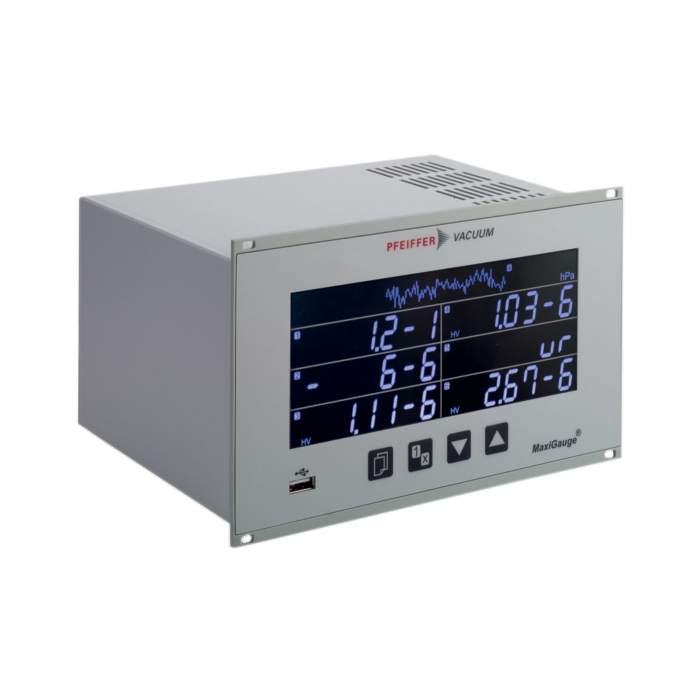

Pfeiffer Vacuum TPG 366 Vacuum Gauge Controller, for 6 Gauges, MaxiGauge, 100-240 VAC, 50/60 Hz, 2000007133 / PTG28770 / PT G28 770

Pfeiffer Vacuum TPG 366 Vacuum Gauge Controller, for 6 Gauges, MaxiGauge, 100-240 VAC, 50/60 Hz, 2000007133 / PTG28770 / PT G28 770

Pfeiffer TPG 366 Features:

• For operation of Six Gauges Utilizing Analog Output Signal
• Brilliant Display & Enhanced User Operating Flexibility
• Simultaneous Display of Six Pressure Readings
• Six Freely-Configurable Relay Set Points
• Can be Used as Table Top or Rack Mount Unit
• Versatile Connectivity Options: USB, RS-485, Ethernet
• Direct Data Storage on USB Flash Memory Devices (Data and Settings)
• Connectable Gauges:
  • TPR 261, TPR 265, TPR 270, TPR 271, TPR 280, PPT 200 AR
  • PCR 260, PCR 280, RPT 200 AR
  • IKR 251,IKR 261, IKR 270, IKR 360, IKR 361
  • PKR 251, PKR 261, PKR 360, PKR 361, MPT 200 AR
  • IMR 265
  • PBR 260, HPT 200 AR
  • CMR 261 - CMR 275, CMR 361 - CMR 375
  • APR 250 - APR 267, CPT 200 AR

TPG 366 / 2000007133 Overview:

Pressure measurement is the analysis of an applied force by a fluid (liquid or gas) on a surface. Pressure is typically measured in units of force per unit of surface area - the Pascal (Pa) is the SI unit commonly used to measure pressure, equivalent to one newton per square meter. Alternatively, pounds per square inch (psi) can also be used as a unit of pressure measurement. In determining the degree of pressure within a vacuum or system, most gauges measure pressure relative to atmospheric pressure, a level referred to as the zero point. Vacuum gauges are especially precise instruments, as they are able to detect the slightest deviations from a state of total vacuum. Any reading greater than total vacuum in such a state constitutes a form of pressure, and thus a vacuum gauge uses total vacuum as the zero point. A vacuum gauge utilizes an absolute scale, whereby the lever begins at the zero point (a complete absence of pressure within a state of total vacuum) and can only change in one direction (as pressure increases).

Differential pressure is likewise an important concept in the field of pressure measurement, as it conveys the difference in pressure between two points or systems. Often times, this refers to the difference between standard atmospheric pressure (typically about 100 kPa at sea level) and the pressure within a vacuum environment. Differential pressure analyses are commonly used in industrial processing systems, and are incorporated within many of the products sold and serviced by A&J Vacuum Services. Differential pressure gauges feature two inlet ports, each connected to one of the two environments where pressure is to be monitored. By monitoring the pressure differential between a near-vacuum environment and one featuring standard atmospheric pressure, the user/operator may obtain an accurate pressure reading by subtracting the difference in total pressure between the two systems.

Direct replacement for TPG 256.

A&J Vacuum services and repairs Pfeiffer Vacuum Gauge Controllers (Six-Gauge Version), along with all other Pfeiffer Vacuum Controllers and Measurement Devices available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
