Pfeiffer MVP 015-4 DC Neo Diaphragm Vacuum Pump, 24 V DC, G 1/8", 0.8 m³/h, 2000116220 / PK T05 163 / PKT05163

Main image
Image 1 Image 2 Image 3 Image 4
Condition: New
Item#:PN58067
Mfr Part#:2000116220 / PK T05 163 / PKT05163
Manufacturer:Pfeiffer Vacuum
PRICE:
$3,230.00
YOU PAY:
$3,313.98
Request a repair estimate Request sales quote Financing available
New Pfeiffer MVP 015-4 DC Neo Diaphragm Vacuum Pump, 24 V DC, G 1/8", 0.8 m³/h, 2000116220 / PK T05 163 / PKT05163
Features:
  • Pumping Speed: 0.8 m³/h | 0.47 cfm | 13.33 l/min
  • Ultimate Pressure: 5 · 10-1 hPa | 0.38 Torr | 0.5 mbar
  • Rotation Speed: 750 – 1800 rpm | 750 – 1,800 min-1
  • G 1/8" Connection Flange
  • Overview
  • Specifications
  • Manuals
  • Spare Parts
  • Accessories
  • Service & Repair
12 months warranty

Pfeiffer MVP 015-4 DC Neo Diaphragm Vacuum Pump, 24 V DC, G 1/8", 0.8 m³/h, 2000116220 / PK T05 163 / PKT05163



Pfeiffer MVP 015-4 DC Neo Features:

  • Pumping speed of up to 0.8 m3/h
  • Dry and oil-free
  • Low noise level
  • Compatible with other intelligent products such as turbopumps via RS-485
  • The intake side on the front side of the pump is provided with a swivelling screw fitting (G1/8) and screw (G1/4) for connection to a Pfeiffer Vacuum turbopump.
  • A pressure connection (silencer G1/8) on the front side of the pump.
  • Mains connection via cold unit socket with safety strap (mains cable not included in the standard version delivery consignment).
  • ON/OFF mains switch.

MVP 015-4 DC Neo / PKT05163 Overview:

Pfeiffer MVP 15 Diaphragm Vacuum Pump is a four stage, dry compressor vacuum pump.

Pfeiffer MVP015 4 DC diaphragm pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.

This pump is a direct replacement to PK T05 160.



MVP015-4 DCNeo Scope of Delivery:

  • Vacuum pump with integrated electronic drive unit
  • Silencer
  • Operating instructions
  • Blind plug on the vacuum connection

MVP015-4 DCNeo Applications:

  • Mass spectrometry
  • Laboratories
  • Coating
  • Vacuum filtration
  • Vacuum distillation

A&J Vacuum repair / rebuild and service all Pfeiffer Vacuum MVP Series Dry Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Pfeiffer MVP 015-4 DC Neo Diaphragm Vacuum Pump, 24 V DC, G 1/8", 0.8 m³/h, 2000116220 / PK T05 163 / PKT05163



Pfeiffer MVP 015-4 DC Neo Technical Data:

Ambient temperature 5 – 40 °C  |  41 – 104 °F |  278.15 – 313.15 K
Certification cTUVus certified according to UL / CSA 61010-1
Connecting flange G 1/8" Thread / G 1/8" Silencer
Connection flange (in) G 1/8''
Connection flange (out) 1/8" thread with silencer
Cooling method Natural convection
Current max. 5.8 A
Dimensions (L x W x H) 260 x 140 x 129.5 mm  |  10.24 x 5.51 x 5.1 inch
Emission sound pressure level (EN ISO 2151) 49 dB(A)
Exhaust pressure max. 1100 hPa |  825 Torr |  1,100 mbar
Gas ballast Available as an accessory
I/O interfaces RS-485
Inlet pressure max. 1100 hPa |  825 Torr |  1,100 mbar
Input voltage(s) 24 V DC (±10 %)
Integral leakage rate 5 · 10-4 Pa m³/s |  3.75 · 10-3 Torr l/s |  5 · 10-3 mbar l/s
Mains cable No
Motor type DC motor
Nominal rotational speed 1500 rpm |  1,500 min-1
Number of pumping stages Four stage
Operating altitude max. 2000 m
Protection degree IP20
Pumping principle Dry
Pumping speed 0.8 m³/h  |  0.47 cfm |  13.33 l/min
Rated current consumption 3.3 A
Rotational speed 750 – 2600 rpm  |  750 – 2,600 min-1
Short circuit current of power supply max. 45 A
Switch No
Ultimate pressure 5 · 10-1 hPa |  0.38 Torr |  0.5 mbar
Weight 4.4 kg  |  9.7 lb

A&J Vacuum repair / rebuild and service all Pfeiffer Vacuum MVP Series Dry Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Pfeiffer MVP 015-4 Overhaul Kit, Structure Diaphragm, Level 3, 2000005873 / PU E22 031 -T / PUE22031-T
Item#:PN54959
Mfr Part#:2000005873 / PU E22 031 -T / PUE22031-T
Condition: Out of Stock New
$425.52
Pfeiffer MVP 015-4 DC Neo Intermediate Plate Spare Parts Package, 2000197100 / PU E22 033 -T / PUE22033-T
Item#:PN54961
Mfr Part#:2000197100 / PU E22 033 -T / PUE22033-T
Condition: Out of Stock New
$733.00
Pfeiffer MVP Neo R 1/8" Silencer, PK 050 368 / PK050368
Item#:PN58071
Mfr Part#:PK 050 368 / PK050368
Condition: Out of Stock New
Price upon request
Contact us
Pfeiffer MVP 015 1/8" Thread Interhead Connection, PK 050 327 / PK050327
Item#:PN58074
Mfr Part#:PK 050 327 / PK050327
Condition: Out of Stock New
Price upon request
Contact us
Pfeiffer MVP 015-4 DC Neo Head Cover Spare Part Package, PU E22 040 -T / PUE22040-T
Item#:PN58075
Mfr Part#:PU E22 040 -T / PUE22040-T
Condition: Out of Stock New
Price upon request
Contact us
Pfeiffer MVP 015-4 DC Neo Rubber Feet Spare Parts Package, PU E22 041 -T / PUE22041-T
Item#:PN58077
Mfr Part#:PU E22 041 -T / PUE22041-T
Condition: Out of Stock New
Price upon request
Contact us
Pfeiffer MVP 015-4 DC 1/8" Thread Interhead Connection, PK 050 336 / PK050336
Item#:PN58078
Mfr Part#:PK 050 336 / PK050336
Condition: Out of Stock New
Price upon request
Contact us
Pfeiffer Vacuum HiPace Y-Connector, HiScroll Y-Connector M12 to RS485, 2000028213 / P4723010 / P 4723 010
Item#:PN06183
Mfr Part#:2000028213 / P4723010 / P 4723 010
Condition: In Stock New
In Stock
$334.79
Pfeiffer TPS 180 Power Supply for Wall or Standard Rail fitting, 2000018757 / PM 061 341 -T / PM061341-T
Item#:PN06207
Mfr Part#:2000018757 / PM 061 341 -T / PM061341-T
Condition: Out of Stock New
$1,000.08
Pfeiffer TPS 181 Power Supply for 19" Rack Module, 2000018763 / PM 061 345 -T / PM061345-T
Item#:PN06208
Mfr Part#:2000018763 / PM 061 345 -T / PM061345-T
Condition: Out of Stock New
$826.51
Pfeiffer Vacuum HiPace Connection Cable, TC 110 to TPS 110, TPS 180, DCU 110, DCU 180 with RS 485 port, 3 Meters, No Accessory Ports, 2000018771 / PM061350-T / PM 061 350 -T
Item#:PN07058
Mfr Part#:2000018771 / PM061350-T / PM 061 350 -T
Condition: In Stock New
In Stock
$491.39
Pfeiffer Vacuum USB/RS485 Converter to RS - 485 Interface, 2000018732 / PM061207-T / PM 061 207 -T
Item#:PN15077
Mfr Part#:2000018732 / PM061207-T / PM 061 207 -T
Condition: In Stock New
In Stock
$610.19
Pfeiffer Vacuum Interface Cable, M12 m Straight / M12 m Straight, 3 m, 2000018741 / PM061283-T / PM 061 283 -T
Item#:PN15620
Mfr Part#:2000018741 / PM061283-T / PM 061 283 -T
Condition: Out of Stock New
$289.99
Pfeiffer Vacuum MVP 015-2/MVP 015-4 and HiPace Connection Tube, Inlet Complete With Fittings, Straight Connector, 1/8" Thread, 1/4" Thread with Seal, DN 6 x 400 mm, 2000029603 / P 0920 739 E / P0920739E
Item#:PN15671
Mfr Part#:2000029603 / P 0920 739 E / P0920739E
Condition: In Stock New
In Stock
$178.20
Pfeiffer MVP 015-2 / MVP 015-4 / MVP 020-3 Diaphragm Vacuum Pumps Screw-in Flange Adapter, with Seal, DN 16 KF, G 1/8", 2000025222 / PK 050 108 -T / PK050108-T
Item#:PN16095
Mfr Part#:2000025222 / PK 050 108 -T / PK050108-T
Condition: Out of Stock New
$157.99
Pfeiffer Vacuum Diaphragm Dry Vacuum Pump Polyurethand = 6x1 Hose, 1 meter, 2000028988 / P 0991 939 / P0991939
Item#:PN22769
Mfr Part#:2000028988 / P 0991 939 / P0991939
Condition: In Stock New
In Stock
$21.50
Pfeiffer HiScroll 6 / 12 /18 Scroll Pump Push-in Fitting adapter G 1/8" with sealing o-ring, for hose connection (8/6 mm), 2000028071 / P4131029G / P 4131 029 G
Item#:PN23773
Mfr Part#:2000028071 / P4131029G / P 4131 029 G
Condition: In Stock New
In Stock
$31.32
Pfeiffer Omnicontrol 001 Rack Display Controller Only without Integrated Power Pack, No Gauge or USB Port, 2000026664 / PE D40 000 0 / PED400000
Item#:PN24499
Mfr Part#:2000026664 / PE D40 000 0 / PED400000
Condition: Out of Stock New
$1,198.80
Pfeiffer Omnicontrol 001 Mobile Display Controller without Integrated Power Pack, No Gauge or USB Port, 2000026661 / PE D20 000 0 / PED200000
Item#:PN24501
Mfr Part#:2000026661 / PE D20 000 0 / PED200000
Condition: In Stock New
In Stock
$1,478.51
Pfeiffer Omnicontrol 200 Rack Controller Unit with Integrated Power Pack and Display, 24 V DC for TC 80 / TC 110, RS-485 Port for DigiLine Gauge, 2000026669 / PE D50 000 0 / PED500000
Item#:PN24532
Mfr Part#:2000026669 / PE D50 000 0 / PED500000
Condition: Out of Stock New
$1,870.00
Pfeiffer HiPace Connection Cable, with TC 110/80 to MVP Diaphragm Pump and TPS / OmniControl /200/300/400 Single Cable Harness, 3 Meter, 2000026612 / PE100013-T / PE 100 013 -T
Item#:PN31538
Mfr Part#:2000026612 / PE100013-T / PE 100 013 -T
Condition: Out of Stock New
$858.60
Pfeiffer Vacuum MVP 015-2/MVP 015-4 and HiPace Connection Tube, Inlet Complete With Fittings, G 1/8" Straight Diaphragm Pump Connection, G 1/4" Straight Turbo Pump, Including Seal, 1 Meter Long, 2000029631 / P 0920 817 E / P0920817E
Item#:PN36217
Mfr Part#:2000029631 / P 0920 817 E / P0920817E
Condition: In Stock New
In Stock
$247.32
Pfeiffer Connection Cable for HiPace with TC 110/120, 2000018872 / PM 061 543 -T / PM061543-T
Item#:PN51814
Mfr Part#:2000018872 / PM 061 543 -T / PM061543-T
Condition: Out of Stock New
Price upon request
Contact us

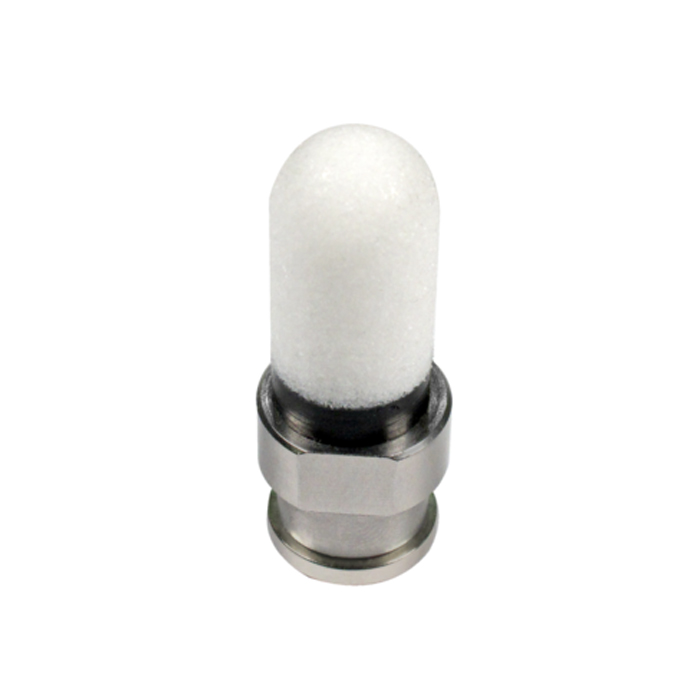

Pfeiffer MVP 015-4 / MVP 020-3 / MVP 030-3 Flushing Gas Nozzle, with Filter, 2000025270 / PK 050 304 -U / PK050304-U
Item#:PN58065
Mfr Part#:2000025270 / PK 050 304 -U / PK050304-U
Condition: Out of Stock New
Price upon request
Contact us

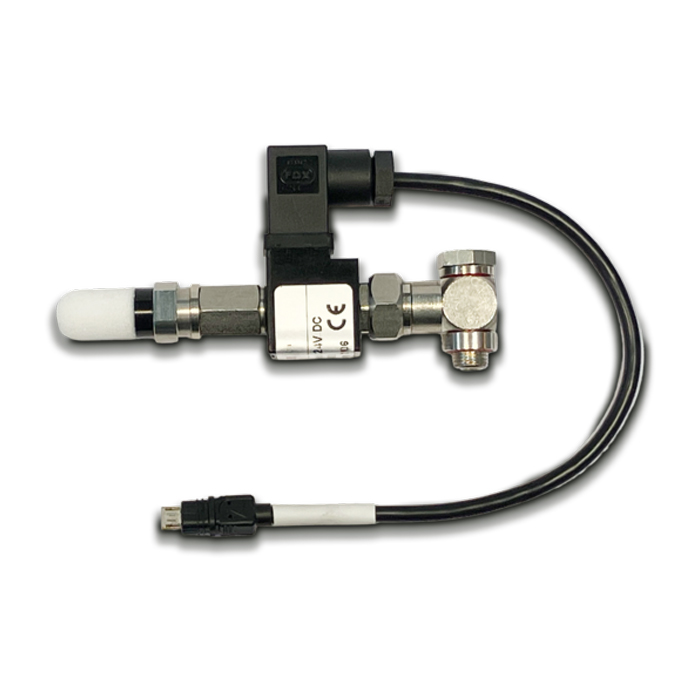

Pfeiffer Automated Gas Ballast Valve, 24 V DC, G 1/8", 2000075371 / PK 050 363 -U / PK050363-U
Item#:PN58066
Mfr Part#:2000075371 / PK 050 363 -U / PK050363-U
Condition: Out of Stock New
Price upon request
Contact us
