Pfeiffer TPS 181 Power Supply for 19" Rack Module, 2000018763 / PM 061 345 -T / PM061345-T
Condition:
New
Item#:PN06208
Mfr Part#:2000018763 / PM 061 345 -T / PM061345-T
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer TPS 181 Power Supply for 19" Rack Module, 2000018763 / PM 061 345 -T / PM061345-T
Pfeiffer TPS 181 Power Supply Features:
- Mains pack as 19" partial plug-in 3HU with front plate
- Ideally matched to HiPace 10/60/80 and SplitFlow 50
- To supply up to 16 DigiLine gauges

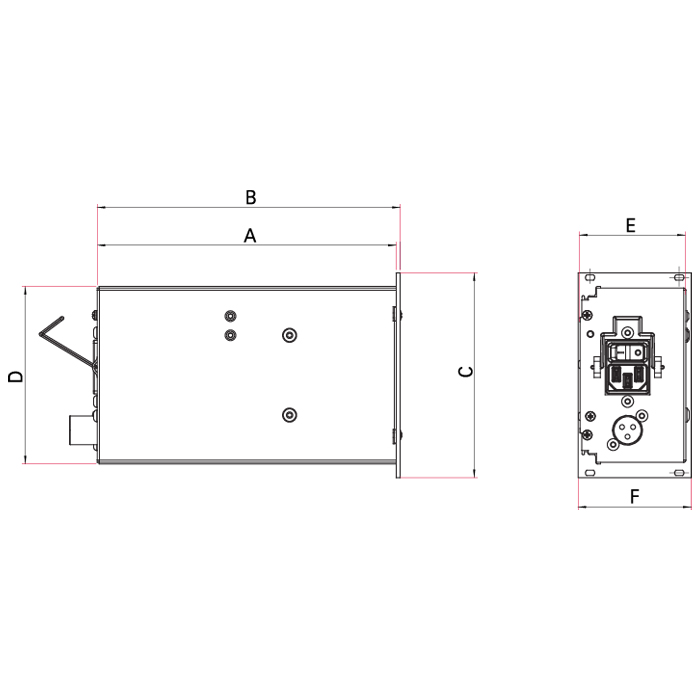

- Dimensions:
- A - 187.5 mm
- B - 190 mm
- C - 128.4 mm
- D - 111.2 mm
- E - 58.4 mm
- F - 60.7 mm
TPS 181 Power Supply / PM061345-T Overview:

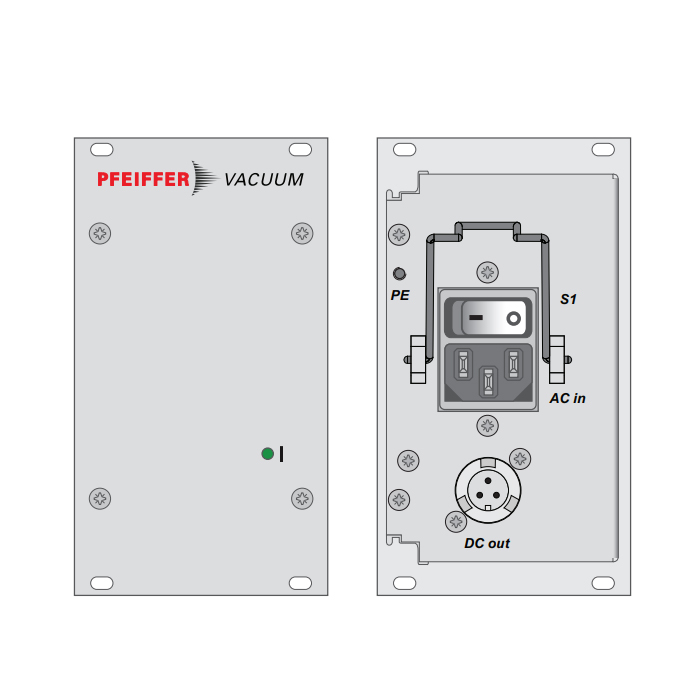

Type TPS power supply packs are used to provide the voltage supply to the drive electronics of the Pfeiffer Vacuum vacuum pumps. The output voltage "DC out" is safely isolated from the mains input voltage "AC in".
HiPace stands for a complete line of compact yet powerful turbopumps featuring pumping speeds that range from 10 – 2,000 liters per second. These models afford cost-effective yet flexible installation in any orientation. The proven bearing system affords unrivaled dependability. And their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility and higher gas throughputs, as well as very good compression for light gases.
A&J Vacuum Services offers full repair/service of Pfeiffer Turbo Pumps, along with all other brands offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer TPS 181 Power Supply for 19" Rack Module, 2000018763 / PM 061 345 -T / PM061345-T
Pfeiffer TPS 181 Power Supply Technical Data:
| Ambient temperature | 5 – 50 °C | 41 – 122 °F | 278.15 – 323.15 K |
| External power supply pack | TPS 181 |
| Input voltage(s) | 100 – 240 V AC (±10 %), 50/60 Hz |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Motor for region | Worldwide |
| Output current | 7.5 A |
| Output voltages | DC: 24 V (±2 %) |
| Power consumption max. | 220 VA |
| Protection degree | IP20 |
| Weight | 1 kg | 2.2 lb |
A&J Vacuum Services offers full repair/service of Pfeiffer Turbo Pumps, along with all other brands offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
