Pfeiffer Vacuum TC 400 Turbo Pump Controller, PM C01 805-AE / PMC01805AE
Please note: Turbo Pump speed configurator (PN51915) is sold seperately, please see accesories tab for availability.
Pfeiffer TC 400 / PM C01 805 AE Overview:
The type TC 400 electronic drive unit is a permanent component of the turbopump. The purpose of the electronic drive unit is to drive. The Pfeiffer TC 400 Turbo Pump Controller is an integrated component of the turbo pump. It's purpose is to drive, monitor and control the entire pump.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Pfeiffer TC 400 Features:
- Connection voltage TC: 24 V DC +/- 10%
- Connection voltage TC: 48 V DC +/- 10%
- Connection panel: Standard (RS-485)
- Turbopump HiPace: 300, 400, 700, 800

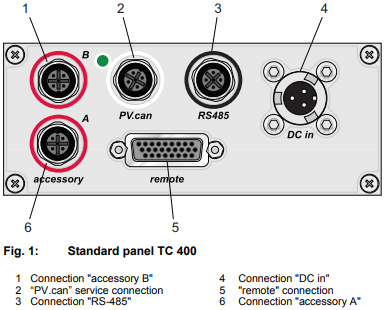

Pfeiffer TC 400 Standard Panel:

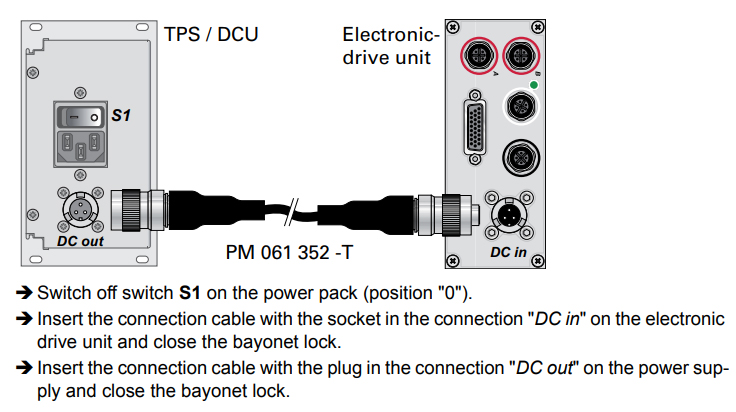

Pfeiffer TC 400 Installation:
Click Here for Pfeiffer TC 400 Operating Instruction
A&J Vacuum Services offers full repair/service of Pfeiffer Controllers, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum TC 400 Turbo Pump Controller, PMC01805, PM C01 805
Please note: Turbo Pump speed configurator (PN51915) is sold seperately, please see accesories tab for availability.
Pfeiffer_TC400_Manual.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
