Found 9 products
Item#: PN06199 Mfr Part#: PM C01 821-A / PMC01821A Manufacturer: Pfeiffer Vacuum
PRICE: $2,519.00
WEB SAVINGS: $229.00
YOU PAY: $2,290.00

Pfeiffer Vacuum DCU 180 Display Control Unit with integrated power supply, PMC01821A , DCU180 Controller, PM C01 821



New Pfeiffer DCU180 Turbo Coontroller PMC01821 Features;

  • To control and monitor all parameters of the drive electronics
  • Comes with With integrated power supply
  • deally matched to HiPace 300 with TC 110



The DCU 180 / PM C011 821 is a display and control unit for Pfeiffer Vacuum vacuum pumps with integrated electronic drive unit.

This DCU 180 displays all control parameters for the electronic drive unit. It is also possible to connect a pressure measuring vacuum gauge directlyy to the back of the DCU 180.

HiPace stands for a complete line of compact yet powerful turbopumps featuring pumping speeds that range from 10 – 800 liters per second. It offers a cost-effective yet flexible installation in any orientation. The proven bearing system affords unrivaled dependability. The improved rotor design makes for higher pumping speeds, higher backing pump compatibility and higher gas throughputs coupled with very good compression for light gases. The new, integrated drive electronics reduce the need for cumbersome and costly cabling.



A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum DCU 180 / PM C01 821-A Turbo Pumps  along with all other  Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854




Condition: New In Stock
Item#: PN06200 Mfr Part#: PMC01822A / PM C01 822 A Manufacturer: Pfeiffer Vacuum
This product has been discontinued and is no longer available for sale

Pfeiffer Vacuum DCU 310 Turbo Pump Controller with integrated power supply, PMC01822A / PM C01 822A, DCU310



  • To control and monitor all parameters of the drive electronics
  • With integrated power supply PM C01 822 A
  • Ideally matched to HiPace 300 with TC 400

HiPace stands for a complete line of compact yet powerful turbopumps featuring pumping speeds that range from 10 – 800 liters per second. It offers a cost-effective yet flexible installation in any orientation. The proven bearing system affords unrivaled dependability. The improved rotor design makes for higher pumping speeds, higher backing pump compatibility and higher gas throughputs coupled with very good compression for light gases. The new, integrated drive electronics reduce the need for cumbersome and costly cabling.

A&J Vacuum Services offers full repair / service of Pfeiffer Pumps, turbo Pump controlles along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.










Condition: Discontinued
Item#: PN07057 Mfr Part#: PM C01 820-A / PMC01820A Manufacturer: Pfeiffer Vacuum
Price upon request

Pfeiffer Vacuum DCU 110 Display Control Unit, HiPace 80 Turbo Pump Controller with integrated power supply, PMC01820

Overview

Pfeiffer Vacuum DCU 110 Display Control Unit, HiPace 80 Turbo Pump Controller with integrated power supply, PMC01820

  • For power supply, control and operation of appropriate Pfeiffer Vacuum products
  • With integrated power supply
  • Ideally matched to HiPace 10/60 P, HiPace 80 and SplitFlow 50/80
  • Connection of Pfeiffer Vacuum ActiveLine gauges possible
  • Interface cable (3 m) for drive electronics included in scope of delivery



Ambient temperature 5-50 °C | 41-122 °F | 278-323 K
Mains requirement: frequency (range) 50/60 Hz
Mains requirement: power consumption 130 VA
Mains requirement: voltage (range) 115–230 (-20-+15 %) V AC
Output current 4.6 A
Output voltage 24 (± 2 %) V DC
Power consumption max. 130 VA
Power supply DCU 110
Protection category IP20
Weight 1.2 kg | 2.65 lb



A&J Vacuum repair / rebuild and service all Pfeiffer Vacuum Diaphragm Dry Pumps along with all other  Pfeiffre Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.






Condition: New In Stock
Item#: PN00064 Mfr Part#: PMC01694 / PM C01 694 Manufacturer: Pfeiffer Vacuum
Price upon request

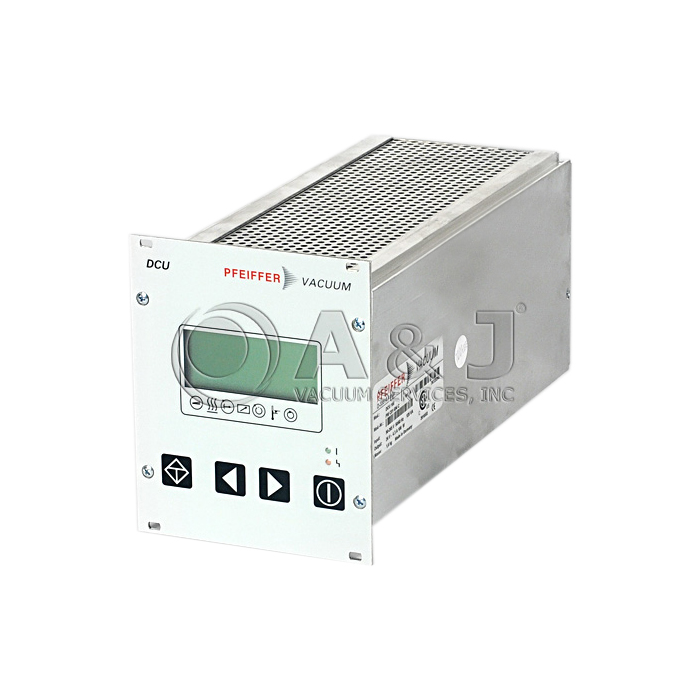

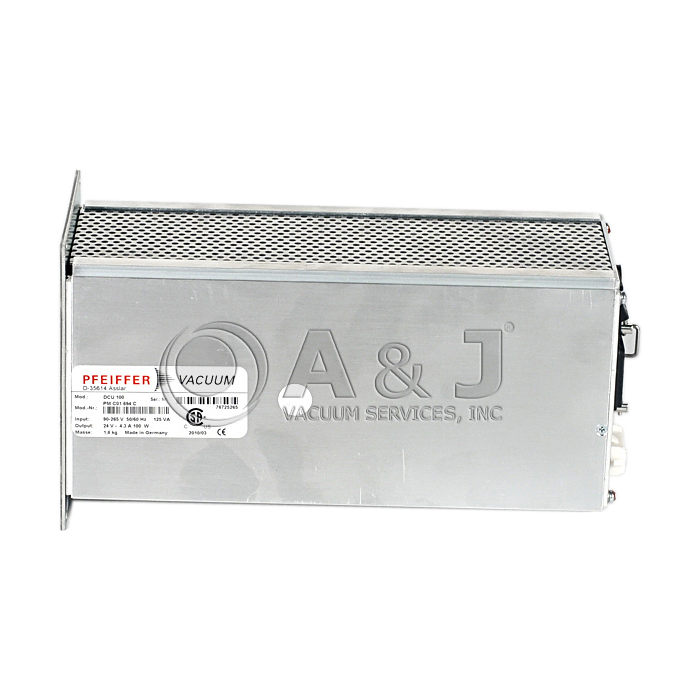

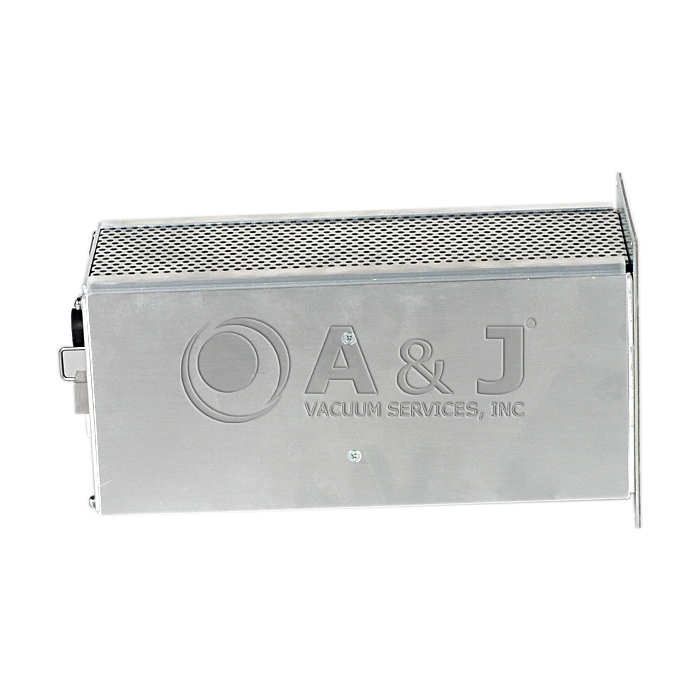

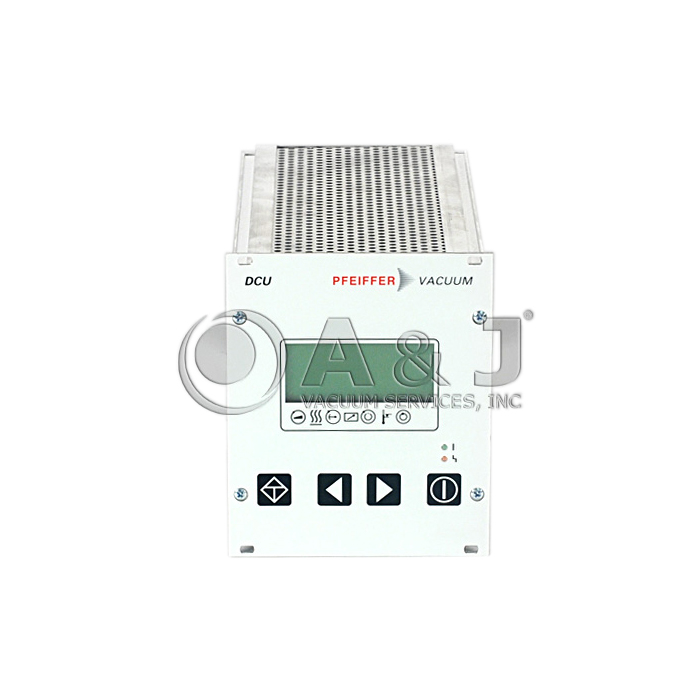

Pfeiffer Vacuum DCU 100 Turbo Pump Controller, Display Control Unit, PMC01694

This revision is discontinued and replaced by PN24363

Overview:

The Display Control Unit DCU is an operating unit for Pfeiffer drive units. It enables control over all the main parameters of the unit. Additionally, the connection of a vacuum gauge is possible.

The DCU is fitted in a housing suitable for mounting in a 19"/3HE rack.

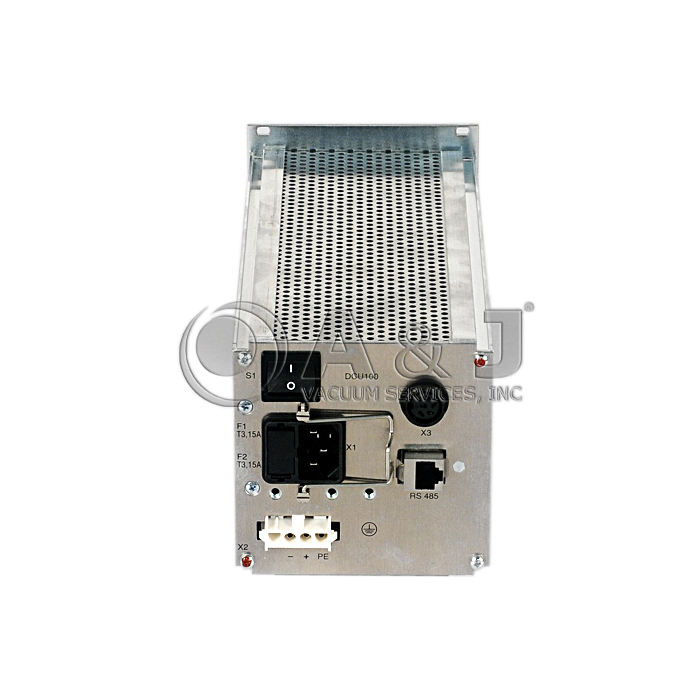

The DCU provides the following connection options:

  • Electronic drive unit for turbopump (X2)
  • Pressure gauge (X3)
  • Serial interface RS 485

The display and operating unit DCU may only be used to control Pfeiffer Electronic Drive Units and their peripheral units.

The units DCU 100 - DCU 600 have been designated protection class 1 and must always be connected with the earthed conductor (PE) via the mains cable.

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.




Condition: New
Item#: PN00065 Mfr Part#: PMC01695C Manufacturer: Pfeiffer Vacuum
This product has been discontinued and is no longer available for sale

This product has been discontinued and replaced by PN15622




Overview:

The Display Control Unit DCU is an operating unit for Pfeiffer drive units. It enables control over all the main parameters of the unit. Additionally, the connection of a vacuum gauge is possible.

The DCU is fitted in a housing suitable for mounting in a 19"/3HE rack.

The DCU provides the following connection options:

  • Electronic drive unit for turbopump (X2)
  • Pressure gauge (X3)
  • Serial interface RS 485

The display and operating unit DCU may only be used to control Pfeiffer Electronic Drive Units and their peripheral units.

The units DCU 100 - DCU 600 have been designated protection class 1 and must always be connected with the earthed conductor (PE) via the mains cable.

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.




Condition: Discontinued
Item#: PN00066 Mfr Part#: PMC01696 Manufacturer: Pfeiffer Vacuum
Price upon request

This controller has been discontinued with no replacement.



Overview:

The Display Control Unit DCU is an operating unit for Pfeiffer drive units. It enables control over all the main parameters of the unit. Additionally, the connection of a vacuum gauge is possible.

The DCU is fitted in a housing suitable for mounting in a 19"/3HE rack.

The DCU provides the following connection options:

  • Electronic drive unit for turbopump (X2)
  • Pressure gauge (X3)
  • Serial interface RS 485

The display and operating unit DCU may only be used to control Pfeiffer Electronic Drive Units and their peripheral units.

The units DCU 100 - DCU 600 have been designated protection class 1 and must always be connected with the earthed conductor (PE) via the mains cable.

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.




Condition: New
Item#: PN00067 Mfr Part#: PMC01697 Manufacturer: Pfeiffer Vacuum
This product has been discontinued and is no longer available for sale

Pfeiffer Vacuum DCU 600 Turbo Pump Controller, PMC01697B,  Pfeiffer Vacuum DCU 600, Display control unit, incl



This controller is discontinued with no replacement. Please see our remanufactured listing for availability: PN00331



Pfeiffer DCU 600 Overview & Features:


Display control unit, incl. power supply is used for the voltage supply of the CompactTurbo molecular pumps TPH /U 1201/1501/1801/2301 with integrated electronic drive unit TC 750. - The connecting cable "RS 485" DCU /TC (3 m) is included . Mains requirement: voltage (range): 90 - 132 / 185 - 265 V AC, Power consumption: 900 VA. The Pump connecting cable DCU /TC and Mains Cables are not included.



Pfeiffer DCU 600 can be used with the following turbo pumps:


  • Pfeiffer Vacuum TMH 1601, TMU 1601
  • Pfeiffer Vacuum TPH 1201, TPU 1201
  • Pfeiffer Vacuum TPH 1501, TPU 1501
  • Pfeiffer Vacuum TPH 1801, TPU 1801
  • Pfeiffer Vacuum TPH 2101, TPU 2101
  • Pfeiffer Vacuum TPH 2301, TPU 2301



Pfeiffer DCU 600 Front panel:


Pfeiffer DCU600 Front panel, PMC01697



Pfeiffer DCU 600 Dimensions:


Pfeiffer DCU600 Dimensions, PMC01697


A&J Vacuum Services offers full repair/service of Pfeiffer Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: Discontinued
Item#: PN15622 Mfr Part#: PMC01823 / PM C01 823 Manufacturer: Pfeiffer Vacuum
PRICE: $3,400.00
WEB SAVINGS: $550.00
YOU PAY: $2,850.00

Pfeiffer Vacuum DCU 400 Turbo Pump Controller with integrated power supply, PMC01823 / PM C01 823, DCU400



  • To control and monitor all parameters of the drive electronics
  • With integrated power supply PM C01 823
  • Ideally matched to HiPace 400 and HiPace 700 with TC 400

A&J Vacuum Services offers full repair/service of Pfeiffer Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.



HiPace stands for a complete line of compact yet powerful turbopumps featuring pumping speeds that range from 10 – 800 liters per second. It offers a cost-effective yet flexible installation in any orientation. The proven bearing system affords unrivaled dependability. The improved rotor design makes for higher pumping speeds, higher backing pump compatibility and higher gas throughputs coupled with very good compression for light gases. The new, integrated drive electronics reduce the need for cumbersome and costly cabling.








Condition: New
Item#: PN24363 Mfr Part#: PMC01694D / PM C01 694 D Manufacturer: Pfeiffer Vacuum
Price upon request

Pfeiffer Vacuum DCU 100 Turbo Pump Controller, Display Control Unit, PM C01 694 D

Overview:

The Display Control Unit DCU is an operating unit for Pfeiffer drive units. It enables control over all the main parameters of the unit. Additionally, the connection of a vacuum gauge is possible.

The DCU is fitted in a housing suitable for mounting in a 19"/3HE rack.

The DCU provides the following connection options:

  • Electronic drive unit for turbopump (X2)
  • Pressure gauge (X3)
  • Serial interface RS 485

The display and operating unit DCU may only be used to control Pfeiffer Electronic Drive Units and their peripheral units.

The units DCU 100 - DCU 600 have been designated protection class 1 and must always be connected with the earthed conductor (PE) via the mains cable.

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.




Condition: New
