- Fully Remanufactured
- P/N PM P02 830
- TC600 / PM C01 720 Installed
- DN 100-ISO Inlet Flange
Shopping Cart ( )

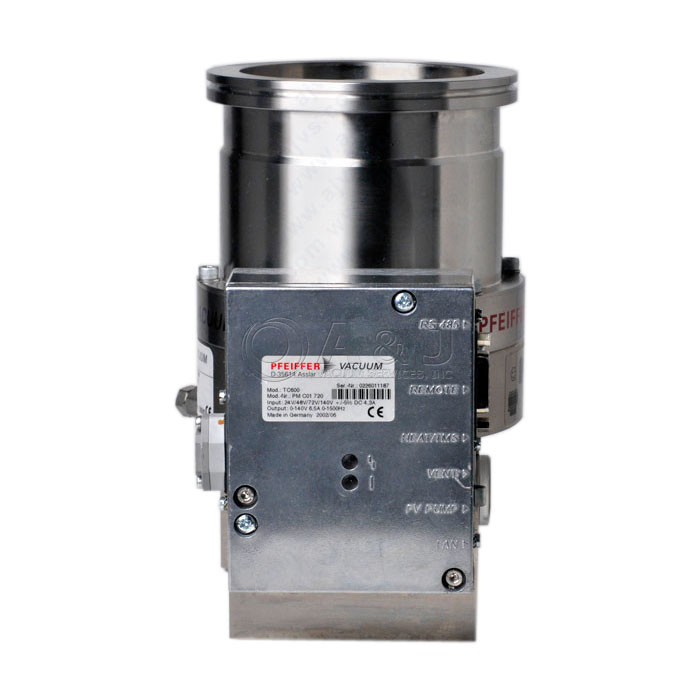

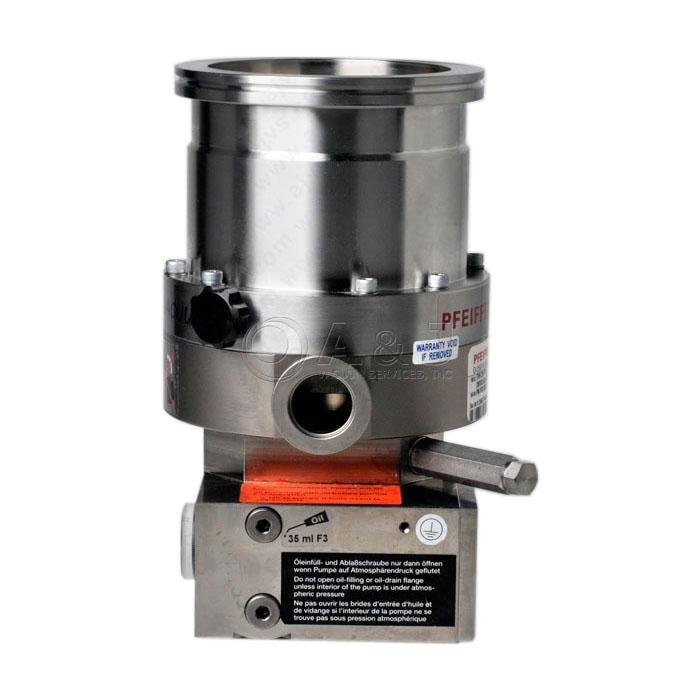

Pfeiffer Vacuum TPH 261PC, with TC600, PMP02830 / 2000016930 / PM C01 720 / PMC01720
Condition:
Remanufactured
Call us for Availability
Item#:PN06147
Mfr Part#:PMP02830 / 2000016930 / PM C01 720 / PMC01720
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer Vacuum TPH 261PC, with TC600, PMP02830 / 2000016930 / PM C01 720 / PMC01720
TPH 261PC / PMP02830 Overview:
Fully refurbished Pfeiffer Vacuum TPH 261 PC PM P02 830 with TC600, PM C01 720 Turbo Pump coupled with a DN 100 ISO-K Inlet Flange and DN 25 ISO-KF Outlet Flange. This particular Turbomolecular Drag Pump has a pumping velocity of 190 liters per second and a final pressure of 1 x 107. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The TPH261PC Turbo Pump comes with an entire 12-Month Warranty.
This Pfeiffer Pump has a wear free permanent magnetic bearing at the high vacuum side and a oil lubricated ceramic bearing at the backing side. The Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange.
A turbopump is a gas turbine that is made up of two independent components ; a rotodynamic pump and a driving turbine. They can be mounted on the same shaft or customarily geared together. The design of a turbopump is to produce a high pressure fluid for feeding a combustion chamber or other use. Visit the turbo pump wiki page for more information.
A turbomolecular pump is a form of vacuum pump similar to a turbopump which is used to obtain and hold a high vacuum. These pumps work on the principle that gas particles can be given momentum in a wanted direction by reiterated collision with a traveling solid surface. In a turbomolecular pump, a quickly spinning turbine rotor 'strikes' gas particles from the intake of the pump towards the exhaust in order to make or hold a vacuum. Visit the turbomolecular pump wiki page for more information.
TPH261PC Applications:
- Freeze drying - packaging industry
- Degassing, casting, dry vacuum smelting (super-pure metals)
- Incandescent lamp manufacturing
- Electronic tubes
- Thin film deposition
- Space simulation
- Cryogenic research
- Electron microscopy
- Nuclear physics, Plasma physics, High energy physics
- Particle accelerators - Storage rings
A&J Vacuum repairs / rebuilds and service Pfeiffer TPH 261 C Turbo Pumps, PMC01720 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer Vacuum TPH 261PC, with TC600, PMP02830 / 2000016930 / PM C01 720 / PMC01720

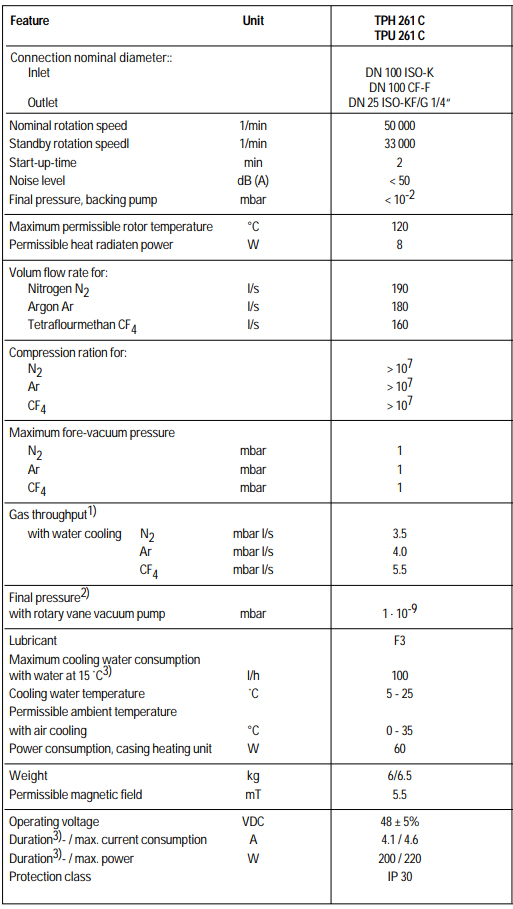

Pfeiffer TPH 261PC Technical Data:
A&J Vacuum repairs / rebuilds and service Pfeiffer TPH 261 C Turbo Pumps, PMC01720 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
